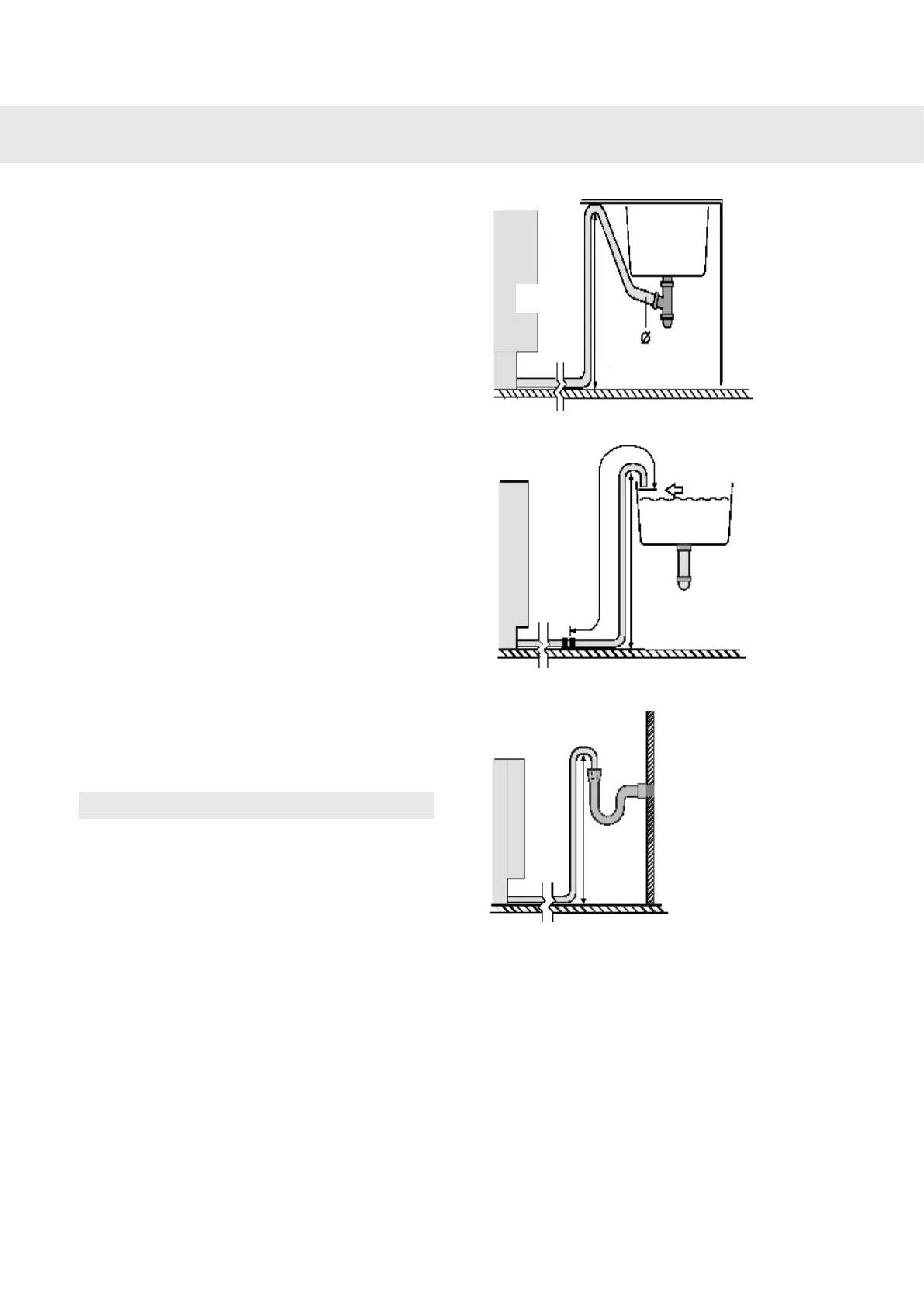

Drainage connection
When the drainage hose is routed to a connection
nipple on the sink unit's water trap (see illustration 1),
please note that the hose must be attached at the
same height as the underside of the sink unit,
otherwise dishwater from the sink may flow back into
the dishwasher. The drainage hose is threaded onto
the cone-shaped connection pipe on the sink unit's
water trap. The cone-shaped pipe must be cut to an
internal diameter of at least 14 mm. For other
connection alternatives, see illustrations 2 and 3.
The drainage hose may be extended by a maximum
of 3 m (the total length of the drainage hose must not
exceed 4,5 m). Any joins and connecting pipes must
have an internal diameter of at least 14 mm. However,
the drainage hose should ideally be replaced with a
new hose without joins.
No part of the drainage hose may be more than 950
mm above the bottom of the dishwasher. The hose
must not be routed directly to the floor drain or similar.
In such cases, the hose can act as a siphon and
empty the dishwasher.
The hose must always discharge at least 350 mm
above the bottom of the machine.
Ensure that the drainage hose has no kinks.
NOTE!
The hose must be attached at the same height as
the underside of the sink.
Max. 950 mm
Min. 350 mm
Min. 14 mm
Figure 1
Max. 950 mm
Min. 350 mm
Max. 3 m
Figure 2
Max. 950
mm
Min. 350
mm
Figure 3
32
Installation
