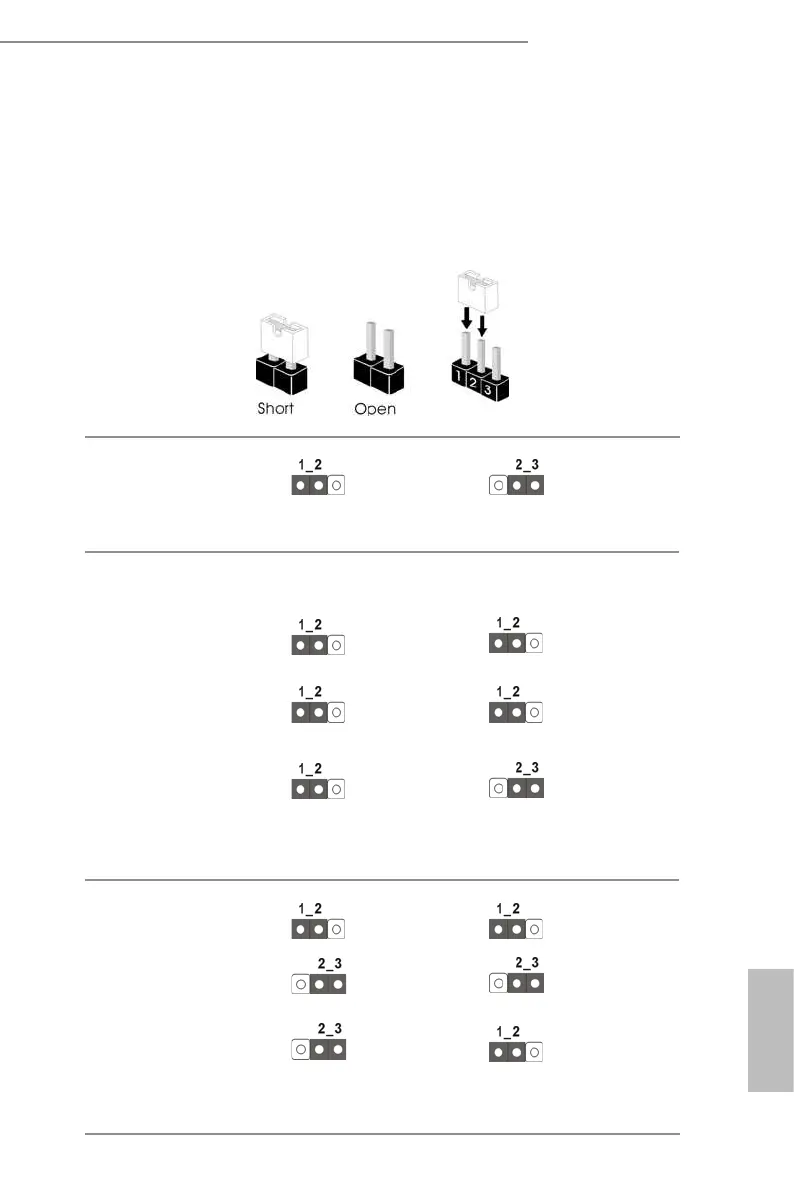

2.6 Jumper Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
ME Recovery Jumper
(3-pin ME_RECOVERY1)
(see p.7, No. 37)
Normal Mode (Default) ME Recovery Mode
Chassis ID Jumpers
Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.7, No. 30)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.7, No. 29)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.7, No. 31)
Board Level SKU (Default) Reserved for system level
use
Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.7, No. 30)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.7, No. 29)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.7, No. 31)
Reserved for system level
use
Reserved for system level
use
