3.2 ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Motherboard Utility (Phantom Gaming Tuning) is ASRock’s multi pur-
pose soware suite with a new interface, more new features and improved utilities.
3.2.1 Installing ASRock Motherboard Utility (Phantom
Gaming Tuning)
ASRock Motherboard Utility (Phantom Gaming Tuning) can be downloaded from
ASRock Live Update & APP Shop. Aer the installation, you will nd the icon “AS-
Rock Motherboard Utility (Phantom Gaming Tuning)“ on your desktop. Double-
click the “ASRock Motherboard Utility (Phantom Gaming Tuning)“ icon,
ASRock Motherboard Utility (Phantom Gaming Tuning) main menu will pop up.
3.2.2 Using ASRock Motherboard Utility (Phantom Gam-
ing Tuning)
ere are ve sections in ASRock Motherboard Utility (Phantom Gaming Tuning)
main menu: Operation Mode, OC Tweaker, System Info, FAN-Tastic Tuning and
Settings.

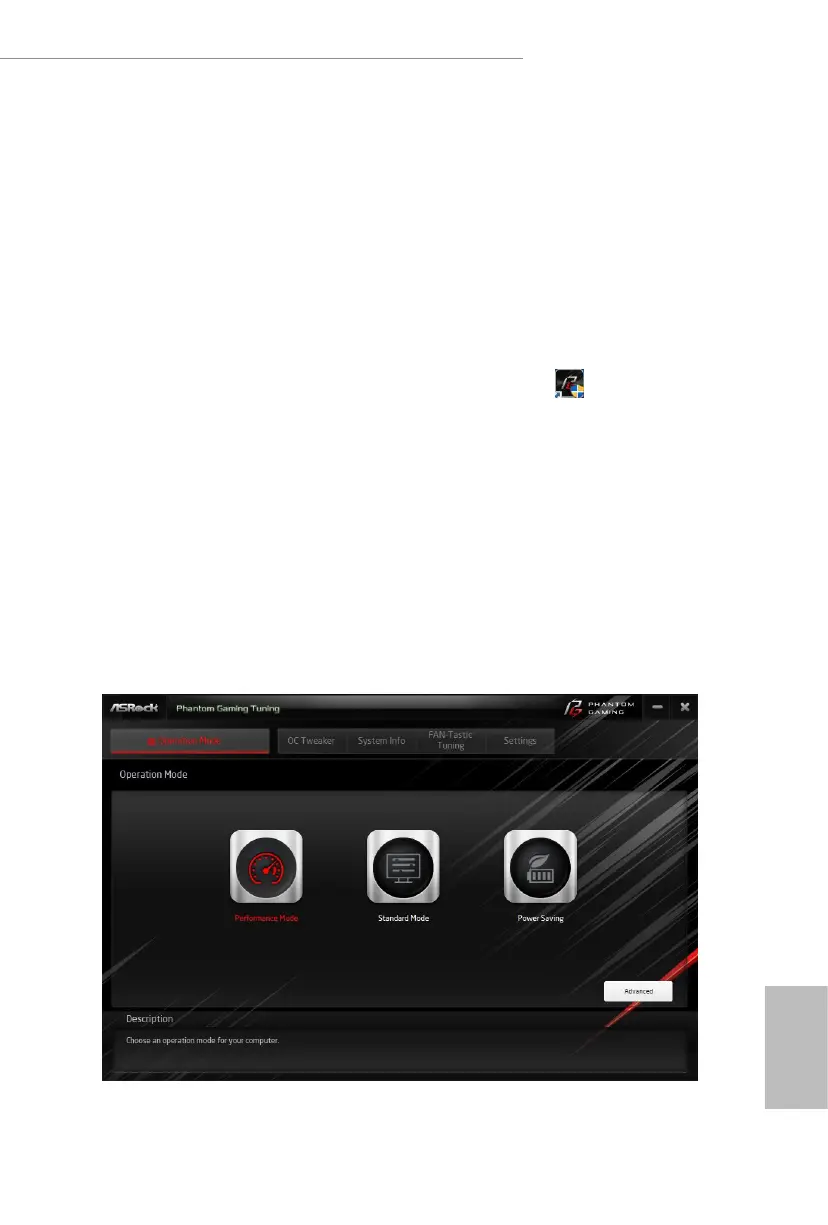

Operation Mode
Choose an operation mode for your computer.

ASROCK B550 Phantom Gaming-ITX/ax Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600, 4666, 4733, 4800, 4866, 4933, 5000 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	Not supported
USB 2.0 connectors	1
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel I225-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
ACPI version	5.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.3
Cables included	SATA
