ASROCK B550M-C R2.0 User Manual

English
9
B550M-C R2.0

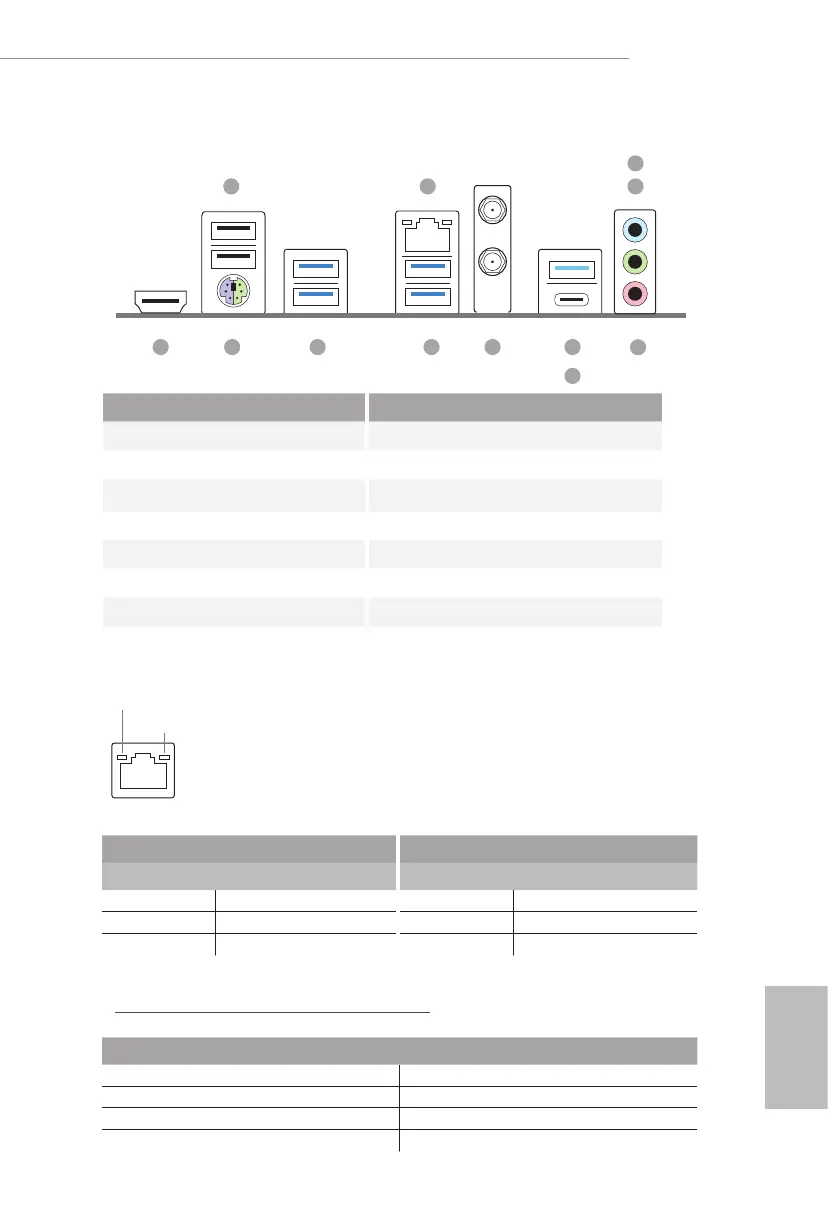

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 7 USB 3.2 Gen2 Type-C Port
2 LAN RJ-45 Port* (USB31_TC_1)
3 Line In (Light Blue)** 8 Antenna Ports
4 Front Speaker (Lime)** 9 USB 3.2 Gen1 Ports (USB3_34)
5 Microphone (Pink)** 10 USB 3.2 Gen1 Ports (USB3_12)
6 USB 3.2 Gen2 Type-A Port 11 PS/2 Mouse/Keyboard Port
(USB31_TA_1) 12 HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
11
910 6
7
12
1 2 4
8
5
3
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
