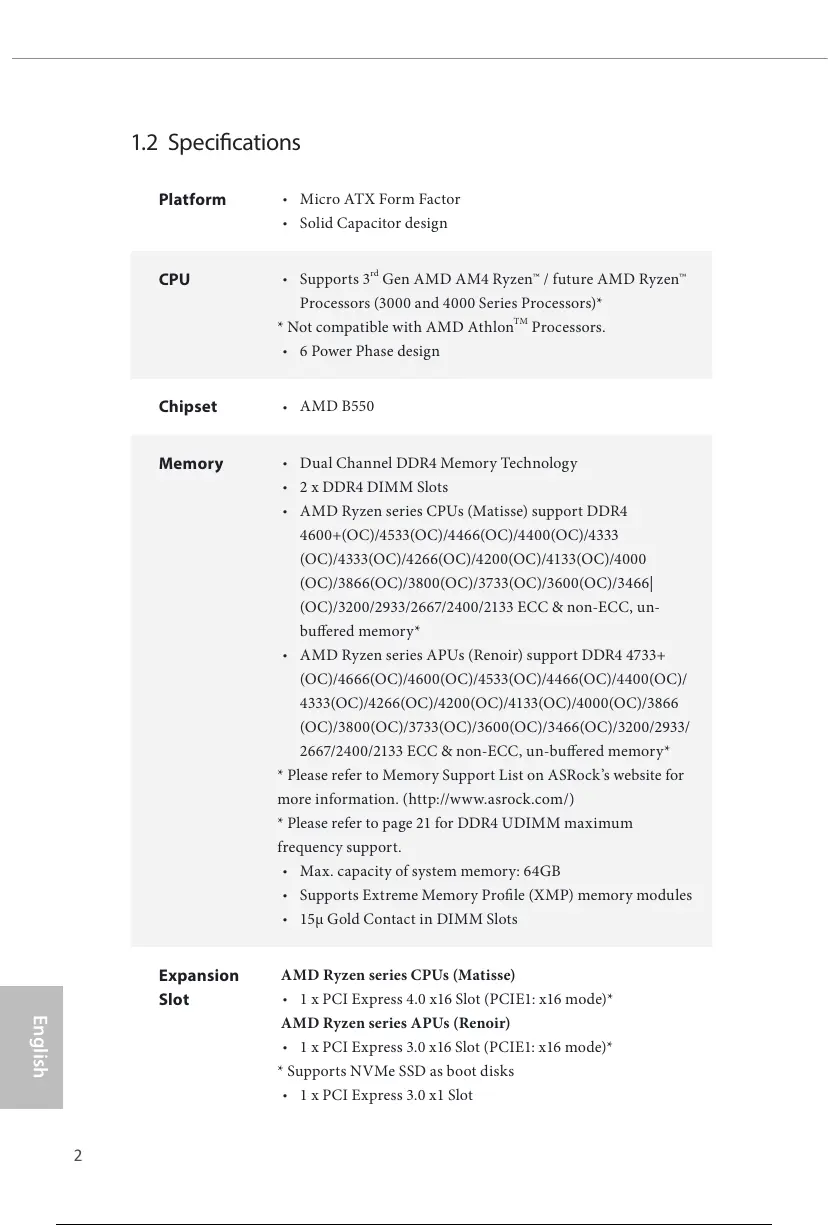

1.2 Specications
Platform
•
Micro ATX Form Factor
•
Solid Capacitor design
CPU
•
Supports 3
rd
Gen AMD AM4 Ryzen™ / future AMD Ryzen™
Processors (3000 and 4000 Series Processors)*
* Not compatible with AMD Athlon
TM
Processors.
•
6 Power Phase design
Chipset
•
AMD B550
Memory
•
Dual Channel DDR4 Memory Technology
•
2 x DDR4 DIMM Slots
•
AMD Ryzen series CPUs (Matisse) support DDR4
4600+(OC)/4533(OC)/4466(OC)/4400(OC)/4333
(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000
(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466|
(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-
buered memory*
•
AMD Ryzen series APUs (Renoir) support DDR4 4733+
(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/
4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866
(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/
2667/2400/2133 ECC & non-ECC, un-buered memory*
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 21 for DDR4 UDIMM maximum
frequency support.
•
Max. capacity of system memory: 64GB
•
Supports Extreme Memory Prole (XMP) memory modules
•
15μ Gold Contact in DIMM Slots
Expansion
Slot
AMD Ryzen series CPUs (Matisse)
•
1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Renoir)
•
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
•
1 x PCI Express 3.0 x1 Slot
9 / 77

ASROCK B550M-HDV Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600, 4666 MHz
Supported storage drive interfaces	M.2, SATA III
Graphics card	Radeon Vega
DirectX version	12.0
Parallel processing technology support	-
USB 2.0 connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Harmonized System (HS) code	84733020
Weight	465 g

Weight and Dimensions

Depth	201 mm
Width	230 mm
Height	70 mm
