ASROCK G31M-GS User Manual

44
44
4
ASRock G31M-GS / G31M-S Motherboard
EnglishEnglish
EnglishEnglish
English

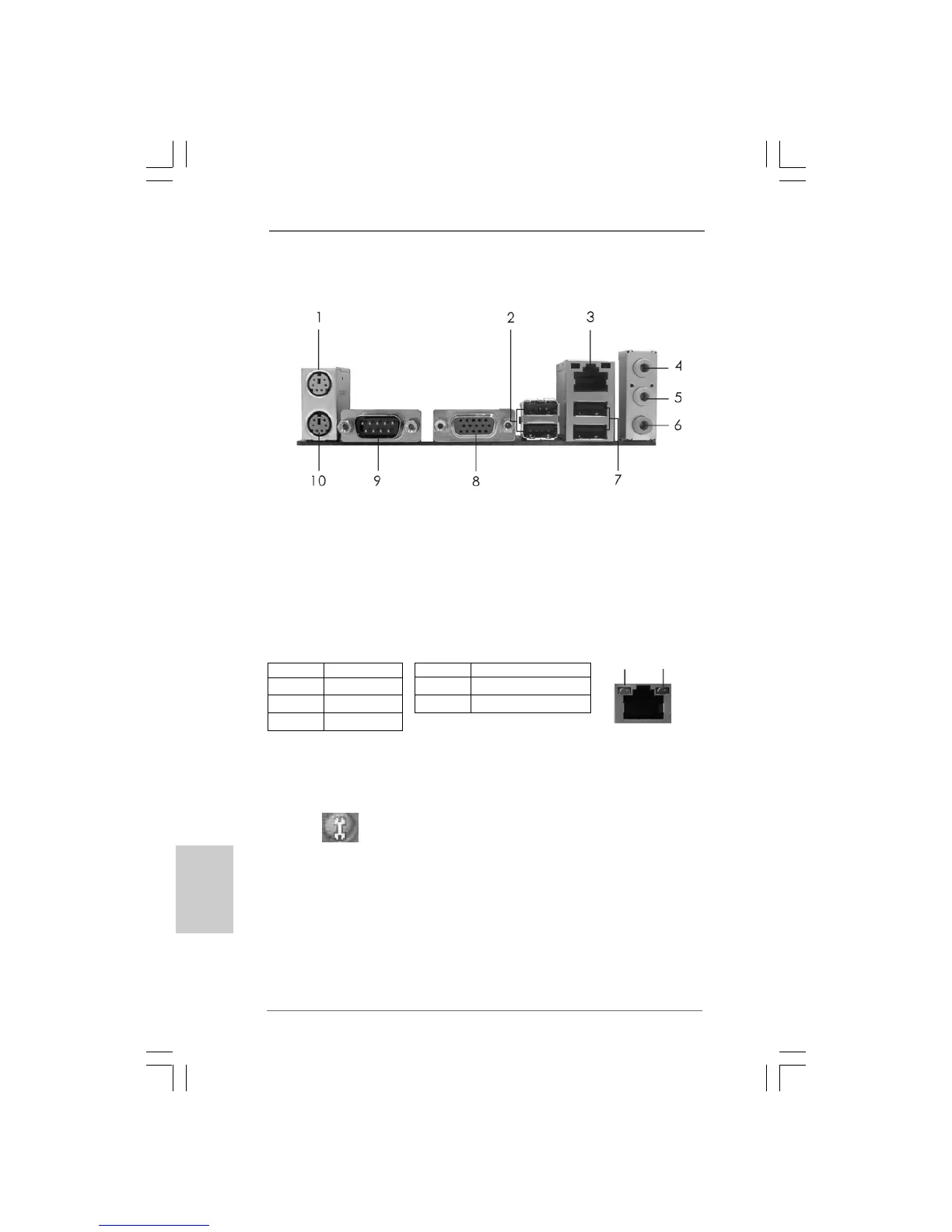

I/O PI/O P
I/O PI/O P
I/O P
anel (G31M-S)anel (G31M-S)
anel (G31M-S)anel (G31M-S)
anel (G31M-S)
1 PS/2 Mouse Port (Green) 6 Microphone (Pink)
2 USB 2.0 Ports (USB23) 7 USB 2.0 Ports (USB01)
* 3 RJ-45 Port 8 VGA Port
4 Line In (Light Blue) 9 COM Port
5 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows
®
XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows
®
Vista
TM
:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
LAN Port
ACT/LINK
LED
SPEED
LED
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off No Activity
Blinking Data Activity Green 100Mbps connection
On Link

ASROCK G31M-GS Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	FCC, CE
Power source type	ATX
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit / 2000
Maximum graphics card memory	384 MB
LAN controller	Realtek RTL8111D(L)
Networking features	PCIE x1 Gigabit LAN 10/100/1000 Mb/s
ACPI version	1.1
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	191 mm
Width	244 mm
