ASROCK H81M-G User Manual

3
English
H81M-G

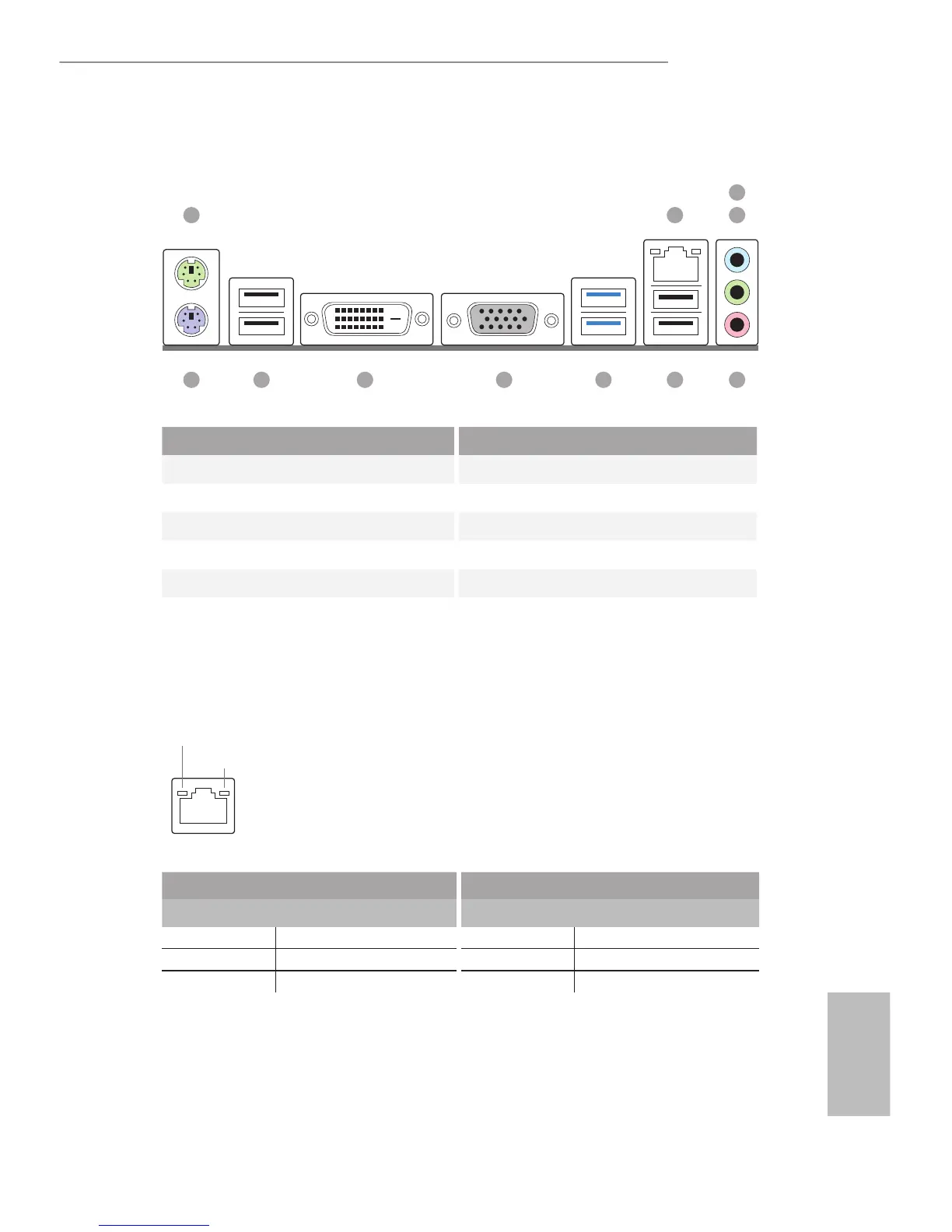

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 USB 3.0 Ports (USB3_01)
2 LAN RJ-45 Port* 8 D-Sub Port
3 Line In (Light Blue) 9 DVI-D Port
4 Front Speaker (Lime) 10 USB 2.0 Ports (USB01)
5 Microphone (Pink) 11 PS/2 Keyboard Port
6 USB 2.0 Ports (USB23)
1 2 4
567891011
3
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

ASROCK H81M-G Specifications

General

Brand	ASROCK
Model	H81M-G
Category	Motherboard
Language	English
