ASROCK P67 TRANSFORMER Quick Installation Guide

19
ASRock P67 Transformer Motherboard
English
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATAII / SATA3 hard
disk or the SATAII / SATA3
connector on this motherboard.

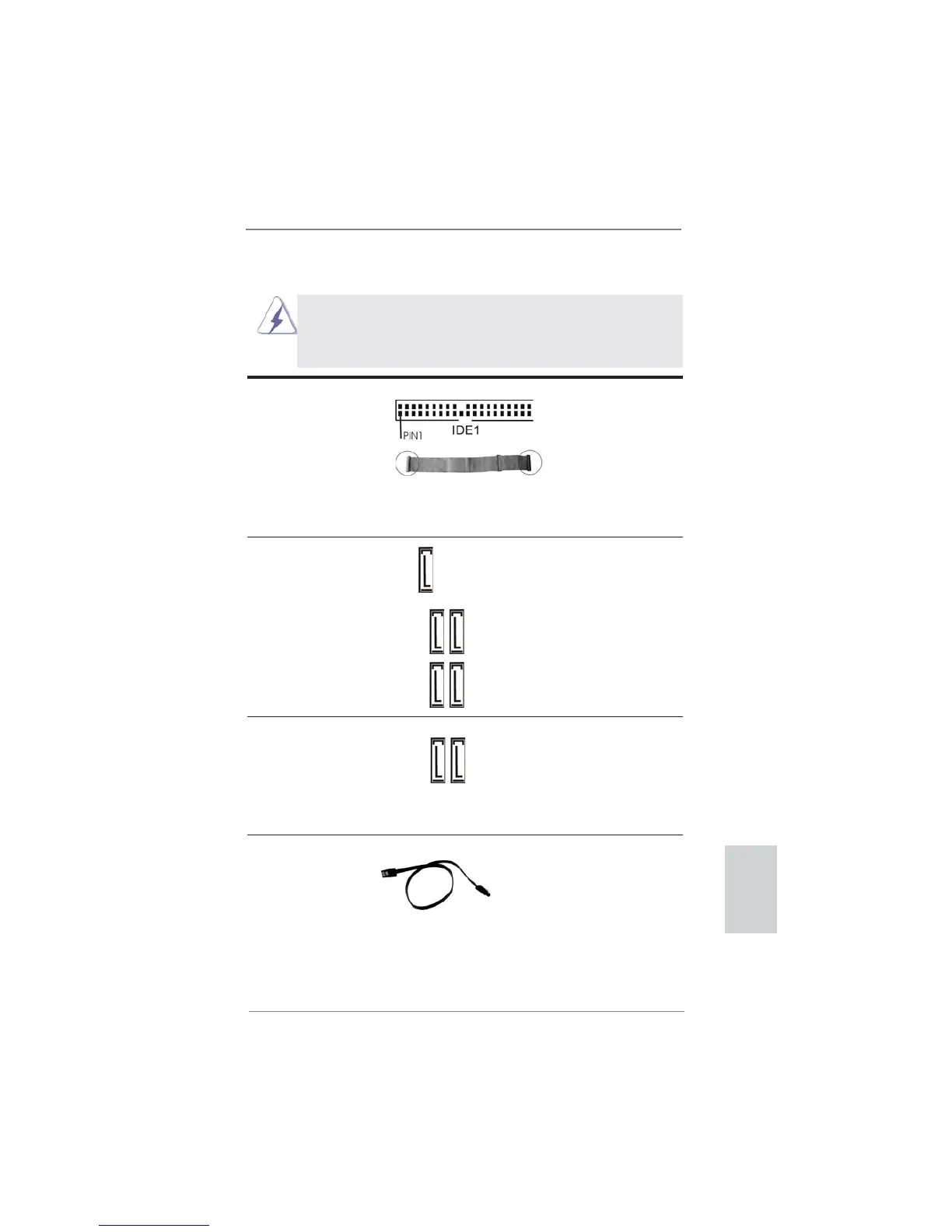

Primary IDE connector (Blue)
(39-pin IDE1, see p.2 No. 7)
Note: Please refer to the instruction of your IDE device vendor for the details.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100/133 cable
Serial ATAII Connectors These fi ve Serial ATAII (SATAII)
(SATAII_2: see p.2, No. 13)
connectors support SATA data
(SATAII_3: see p.2, No. 12)
cables for internal storage
(SATAII_4: see p.2, No. 15)
devices. The current SATAII
(SATAII_5: see p.2, No. 14)
interface allows up to 3.0 Gb/s
(SATAII_6: see p.2, No. 8)
data transfer rate.
Serial ATA3 Connectors These two Serial ATA3 (SATA3)
(SATAIII_0: see p.2, No. 11)
connectors support SATA data
(SATAIII_1: see p.2, No. 10)
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATAII_5 SATAII_3 SATAII_4 SATAII_2
SATAII_6
SATAIII_1 SATAIII_0
