ASROCK PG27F15RS1A User Manual

17

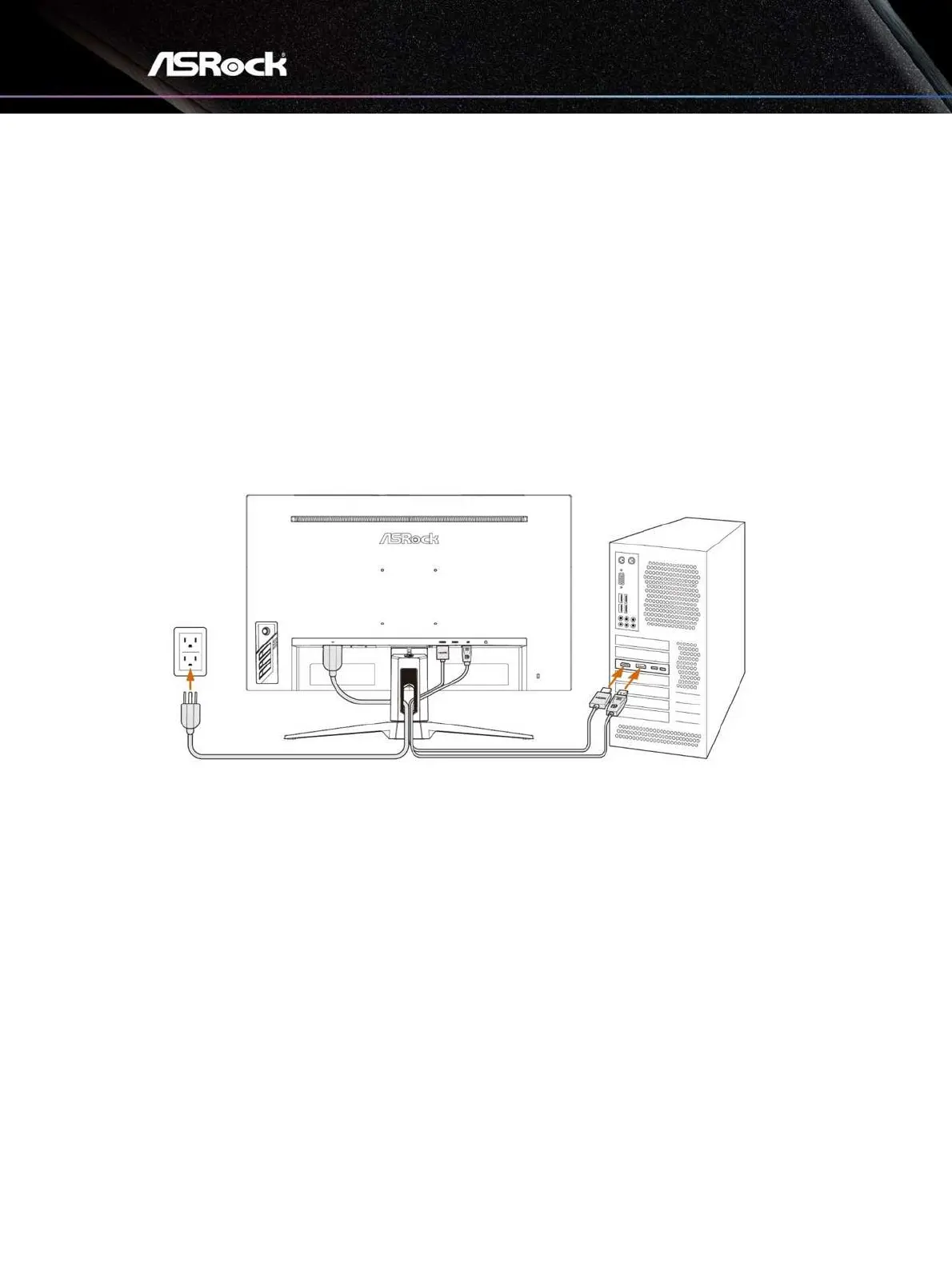

Chapter 5 Connecting the Monitor
1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Connect the power cord to the monitor power jack.
4. Plug the power cord into the electrical outlet.
5. Turn on the monitor.
6. Power on the computer and the monitor will auto detect the signal source.
7. Plug one end of the DisplayPort/HDMI cable to the monitor’s DisplayPort/HDMI port.
*Use either the HDMI or DisplayPort connection for display.
8. Connect the other end of the DisplayPort/HDMI cable to your computer's
DisplayPort/HDMI port.

ASROCK PG27F15RS1A Specifications

General

Panel type	VA
Color gamut	90 %
Pixel pitch	0.3114 x 0.3114 mm
Display diagonal	27 \
Anti-glare screen	Yes
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
Screen curvature rating	1500R
Viewable size, vertical	336.312 mm
sRGB coverage (typical)	113 %
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Viewable size, horizontal	597.888 mm
Digital vertical frequency	48 - 240 Hz
Digital horizontal frequency	30 - 255 kHz
Display brightness (typical)	300 cd/m²
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
DisplayPort version	1.2
Headphone connectivity	3.5 mm
RMS rated power	4 W
Product color	Black
Market positioning	Gaming
Tilt angle range	23 - -5 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	70 W
Power consumption (off)	0.3 W
Power consumption (standby)	- W
Power consumption (typical)	35 W
Power consumption (PowerSave)	0.5 W
Package type	Box
Package weight	6900 g

Weight and Dimensions

Depth (with stand)	192.61 mm
Width (with stand)	610.34 mm
Height (with stand)	457.91 mm
Weight (with stand)	5110 g
Depth (without stand)	79.65 mm
Height (without stand)	367.34 mm
Weight (without stand)	4400 g
