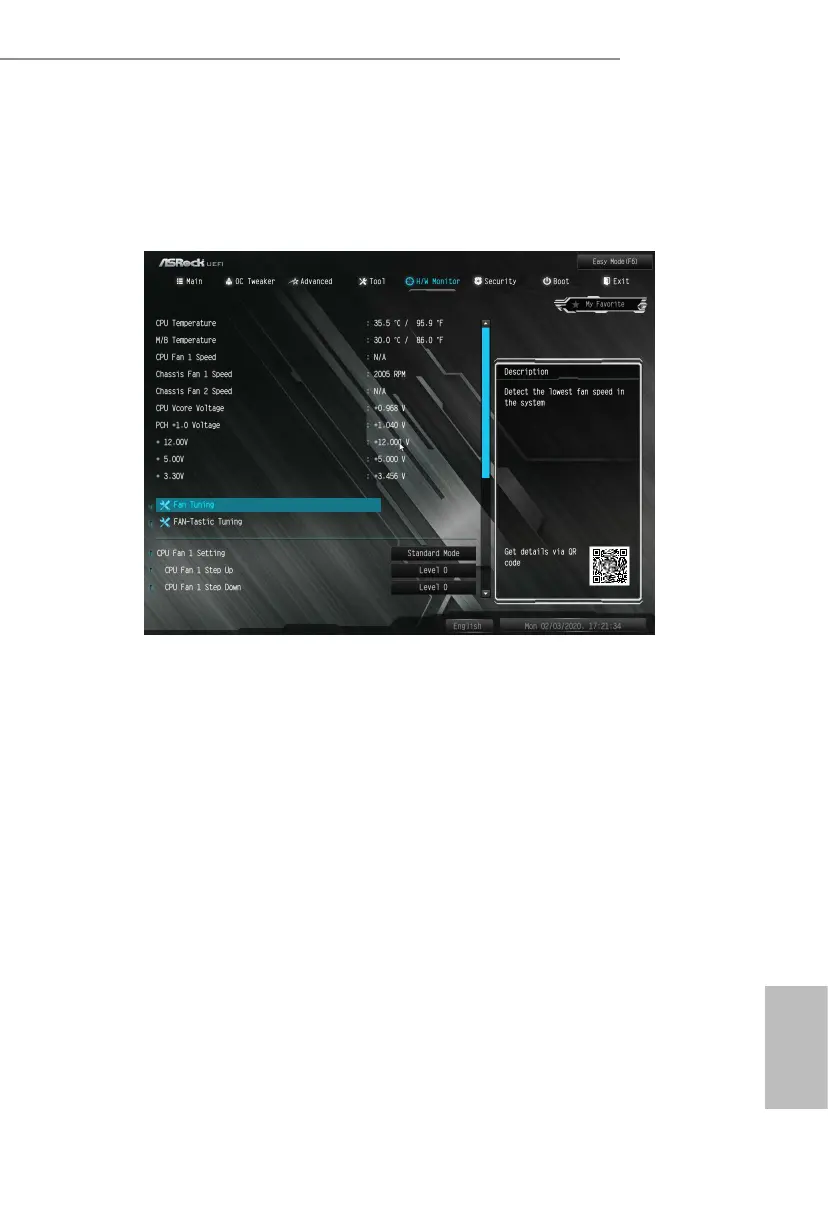

4.8 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
Fan Tuning
Measure Fan Min Duty Cycle.
Fan-Tastic Tuning
Select a fan mode for CPU Fan, or choose Customize to set 5 CPU temperatures and
assign a respective fan speed for each temperature.
CPU Fan 1 Setting
Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
CPU Fan Step Up
Set the value of CPU Fan Step Up.
CPU Fan Step Down
Set the value of CPU Fan Step Down.
CHA_FAN1 / W_Pump Switch
Select Chassis Fan 1 or Water Pump mode.

ASROCK Z490M-ITX/ac Specifications

General

HDMI version	1.4
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
RGB LED pin header	Yes
LAN controller	Dragon RTL8125BG, Intel I219-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel Z490
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10
OpenGL version	4.5
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000, 4133, 4266, 4333, 4400 MHz
Cables included	SATA
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium

Weight and Dimensions

Width	170 mm
