4-22 Chapter 4: Software support

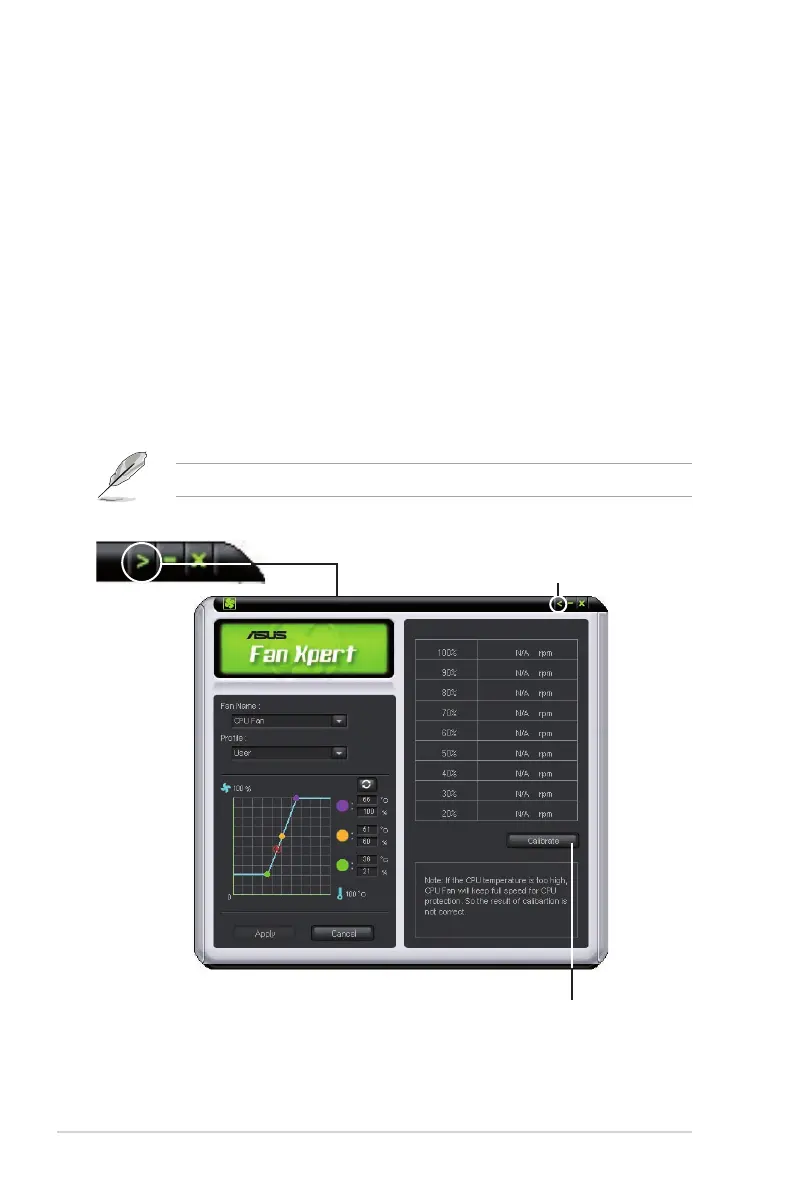

Click to get the calibration between
the fan rotation and fan speed ratio
Click to close the Calibration window
Fan prole modes
• Disable: Select this mode to disable the Fan Xpert function.
• Standard: This mode makes the fan adjust speed in moderate pattern.
• Silent: This mode minimizes fan speed for quiet fan operation.
• Turbo: This mode boosts the fan to achieve maximal fan speed for the best
cooling effect.
• Intelligent: This mode automatically adjusts the CPU fan speed with the
ambient temperature.
• Stable: This mode keeps the CPU fan at the same speed to avoid noise
caused by the unsteady fan rotation. However, the fan will speed up
when the temperature exceeds 70ºC.
• User: This mode allows you to change the CPU fan prole under certain
limitation.
For Chassis Fan, only Disable/Standard/Silent/Turbo modes could be selected.
