ASUS A7V8X-X Motherboard 1-15

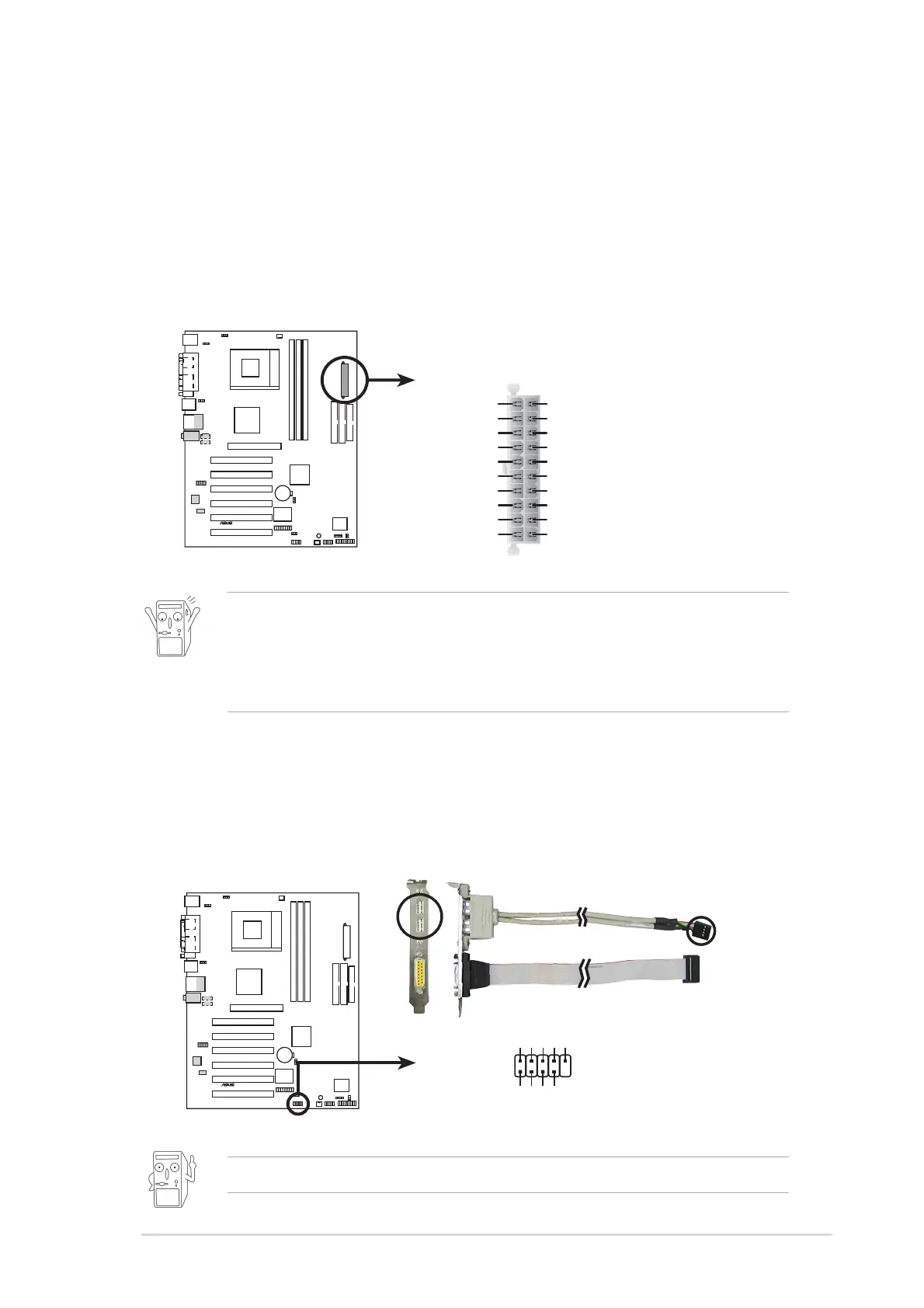

1.12 Connectors
This section describes and illustrates the connectors on the motherboard.
1. ATX power connectors (20-pin ATXPWR)
These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.
If you will need to replace the power supply in the future, make sure that your
new ATX 12V power supply can provide 8A on the +12V lead and at least 1A on
the +5-volt standby lead (+5VSB). The minimum recommended wattage is
230W, or 300W for a fully configured system. The system may become unstable
and may experience difficulty powering up if the power supply is inadequate.
A7V8X-X
®
A7V8X-X ATX Power Connectors
ATXPWR
+3.3VDC
-12.0VDC
COM
PS_ON#
COM
COM
COM
-5.0VDC
+5.0VDC
+5.0VDC
PWR_OK
+12.0VDC
+3.3VDC
+3.3VDC
COM
+5.0VDC
COM
+5.0VDC
COM
+5VSB
2. USB headers (10-1 pin USB56)
If the USB 2.0 port connectors on the back panel are inadequate, two USB
headers (blue headers) are available for four additional USB port connectors.
Connect a 2-port USB connector set to a USB header and mount the USB
bracket to an open slot in the chassis.
The USB/GAME module is not included in the package.
A7V8X-X
®
A7V8X-X USB 2.0 Header
USB56
USB+6V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
