2.2.8 Internal connectors
1. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1~6)
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
conguration through the onboard AMD
®
A88X chipset.
• These connectors are set to [AHCI] by default. If you intend to create a Serial ATA RAID
set using these connectors, set the OnChip SATA Type item in the BIOS to [RAID].
Refer to section 3.5.2 SATA Conguration for details.
• Before creating a RAID set, refer to section
4.4 RAID congurations or the manual
bundled in the motherboard support DVD.
• When using NCQ, set the
OnChip SATA Type
in the BIOS to [AHCI]. Refer to section
3.5.2 SATA Conguration
for details.
• You must install Windows
®
XP Service Pack 3 or later versions before using Serial ATA
hard disk drives. The Serial ATA RAID feature is available only if you are using Windows
®
XP SP3 or later versions.
SATA6G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA6G_2
GND
RSATA_TXP2
RSATA_TXN1
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA6G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA6G_4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
SATA6G_5
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXN5
RSATA_RXP5
GND
SATA6G_6
GND
RSATA_TXP6
RSATA_TXN6
GND
RSATA_RXN6
RSATA_RXP6
GND
A88X-PRO

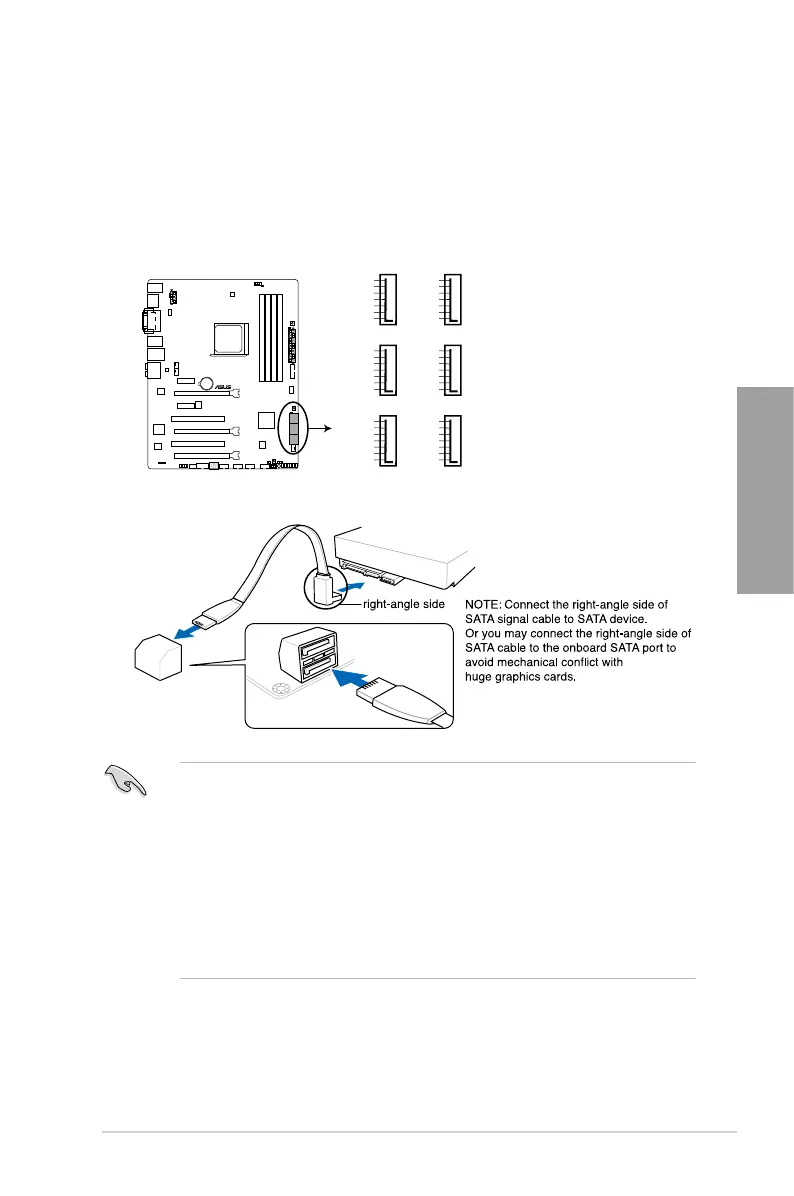

A88X-PRO SATA 6.0Gb/s connectors

Asus A88X PRO Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1333, 1600, 1866, 2133, 2200, 2250, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	2
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	AMD A88X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows XP Home, Windows XP Professional
Parallel processing technology support	3-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Cables included	SATA

Weight and Dimensions

Width	- mm
