Chassis intrusion connector (4-1 pin CHASSIS)Chassis intrusion connector (4-1 pin CHASSIS)
Chassis intrusion connector (4-1 pin CHASSIS)Chassis intrusion connector (4-1 pin CHASSIS)
Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or
switch. Connect one end of the chassis intrusion sensor or switch
cable to this connector. The chassis intrusion sensor or switch sends a
high-level signal to this connector when a chassis component is
removed or replaced. The signal is then generated as a chassis
intrusion event.
By default, the pins labeled “Chassis Signal” and “Ground” are shorted
with a jumper cap. Remove the jumper caps only when you intend to
use the chassis intrusion detection feature.

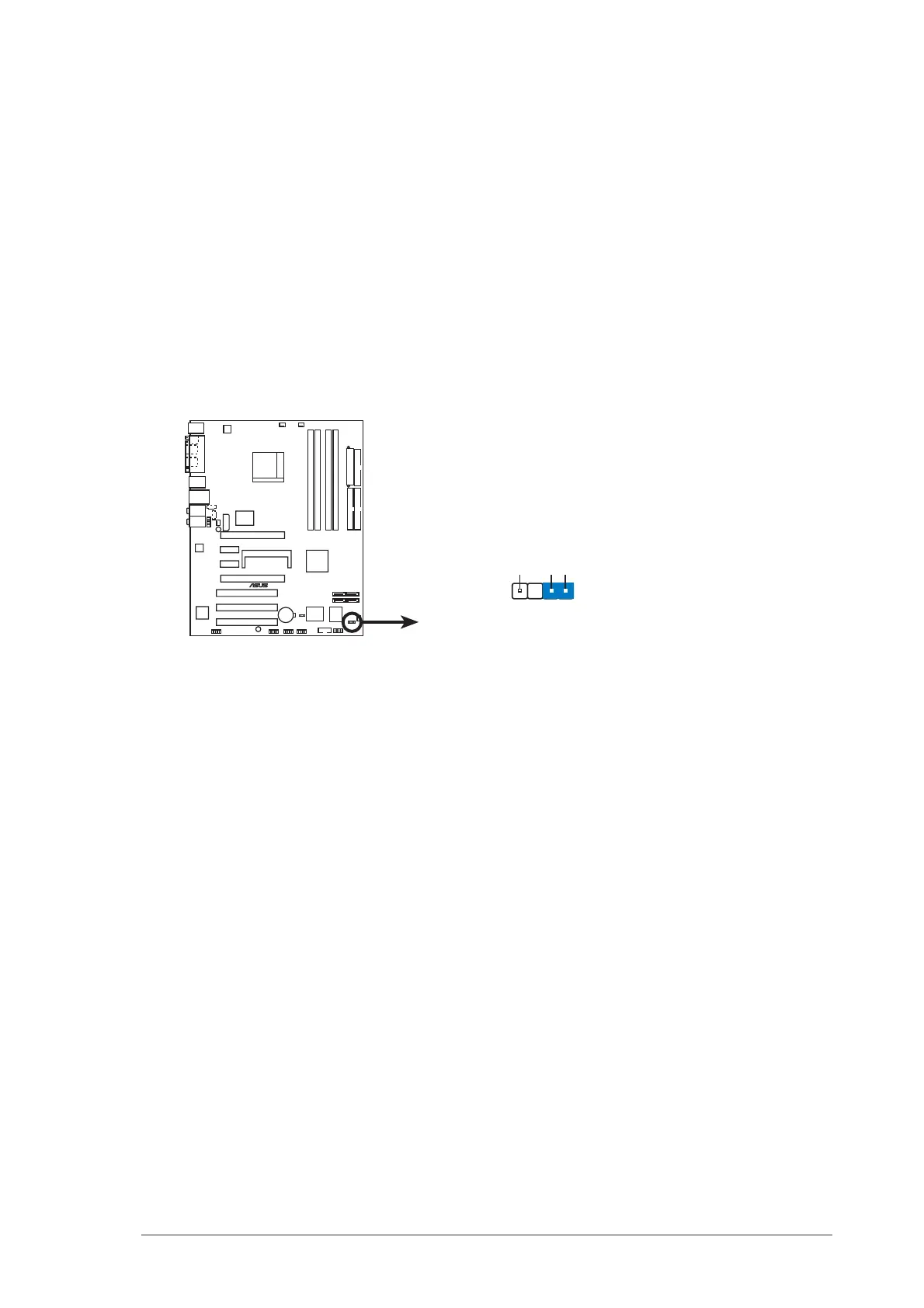

A8N-SLI
®
A8N-SLI Chassis alarm lead
CHASSIS
+5VSB_MB Chassis Signal GND
(Default)

Asus A8N-SLI - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	NVIDIA nForce4 SLI
Socket	Socket 939
Memory Type	DDR
Memory Slots	4 x DIMM
Max Memory	4 GB
LAN	Gigabit LAN
PS/2 Ports	2
Serial Ports	1
Parallel Port	1
Supported CPUs	AMD Athlon 64, AMD Athlon 64 FX, AMD Athlon 64 X2
Expansion Slots	2 x PCIe x16, 2 x PCIe x1, 3 x PCI
Storage Interfaces	2 x PATA
Audio	Realtek ALC850 8-channel
RAID Support	RAID 0, 1, 0+1
USB Ports	10 (4 on back panel, 6 via headers)
