Asus DSL-AC68U User Manual

37

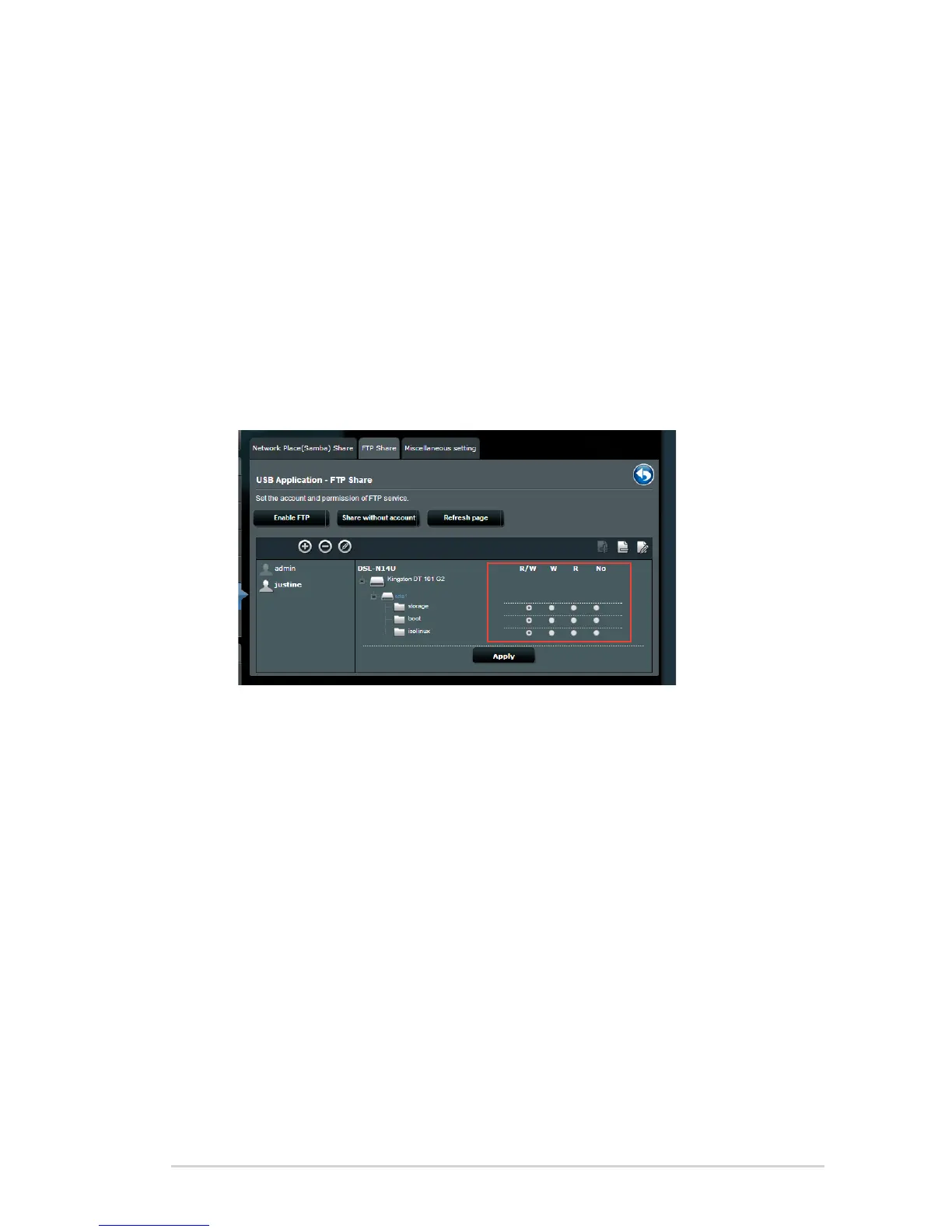

8. Select the type of access rights for the storage device:
•
R/W: Select this option to assign read/write access for a
specific file/folder.
•
W: Select this option to assign write only access for a
specific file/folder.
•
R: Select this option to assign read only access for a specific
file/folder.
•
No: Select this option if you do not want to share a specific
file/folder.
9. Click
Apply.
10. To access the FTP server from a client on the network, key
in ftp://<hostname>.asuscomm.com on a web browser or
a third-party FTP utility. Once prompted, key in the account
username and password you set up in Step 7.

Asus DSL-AC68U Specifications

General

VPN support	IPSec, PPTP, L2TP, PPTP server, OpenVPN server, PPTP client, L2TP client
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	-
Frequency range	2.4 - 5 GHz
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	600, 1300 Mbit/s
Ethernet LAN (RJ-45) ports	4
Antennas quantity	3
Antenna gain level (max)	3 dBi
Security algorithms	256-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Internal memory	256 MB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	83.3 mm
Width	220 mm
Height	160 mm
Weight	640 g
