Asus ESC4000 IB User Manual

ASUS ESC4000 Series 2-7

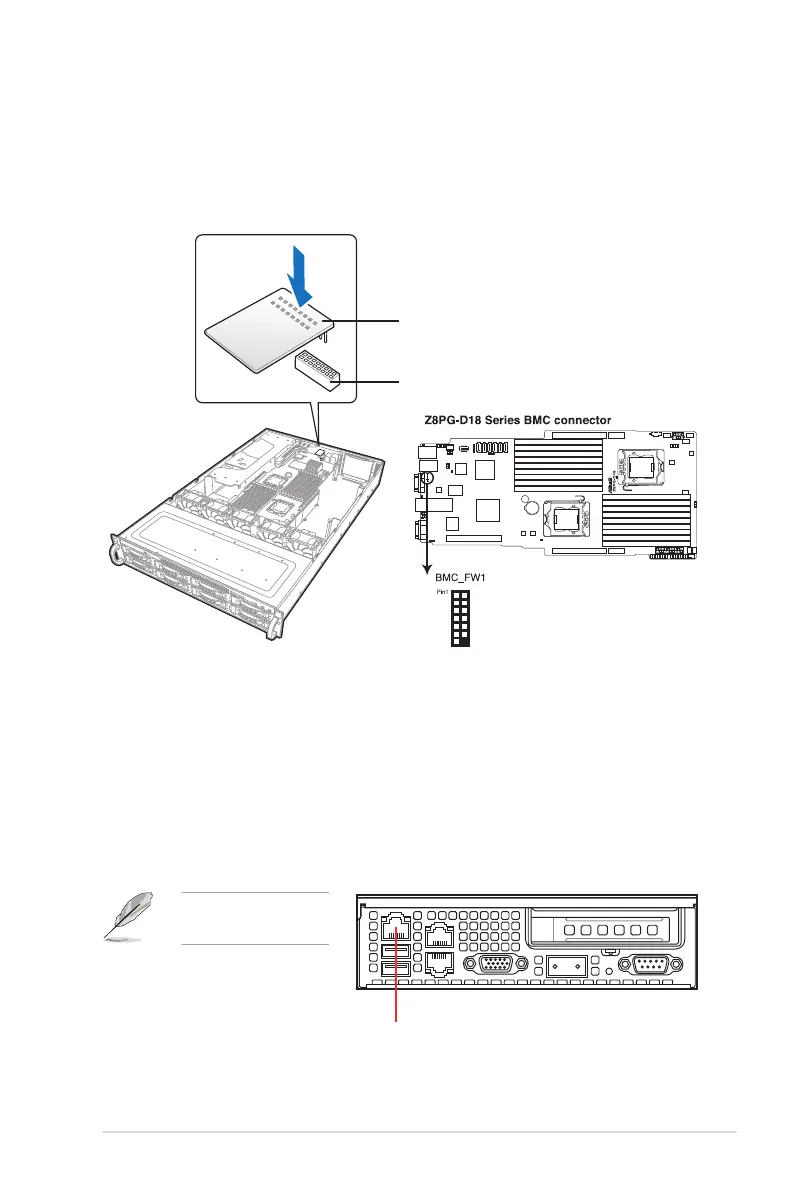

2.4 Installing ASUS Server Management
Board
ASUS Server Management Board is an Intelligent Platform Management Interface
(IPMI) 2.0-compliant board that allows users to monitor, control and manage a
remote server from the local or central server in local area network (LAN).
ASMB4-iKVM
• Monitor the running status of major components via LAN or Serial Port, such
as CPU and memory utilization, storage capacity and networking transfer rate.
• Advanced server management functions including “remote power on/off/reset”,
“remote control via SOL (Serial-over LAN)” and “remote SEL (system event log
reading when the system is out-of-band)”.
• Support Dynamic Host Conguration Protocol (DHCP), which avoids
manually assigning IP address by setting DHCP mode to receive IP address
automatically.
Use the LAN3 port for
server management.
LAN3 port
BaseboardManagementController(BMC)
connector(14-pinBMC_FW1)
ASUS Server Management Board

Asus ESC4000 IB Specifications

General

Chipset	Intel C602
Memory Slots	16 DIMM slots
Processor	Dual Intel Xeon E5-2600 series
Memory	Up to 512GB DDR3
Expansion Slots	7 x PCIe 3.0 x16 slots
Storage	8 x 2.5" HDD/SSD
Networking	Dual Gigabit Ethernet
Power Supply	1+1 Redundant 80 PLUS Platinum Power Supply
GPU Support	Supports up to two double-width GPUs
