Product introduction
1

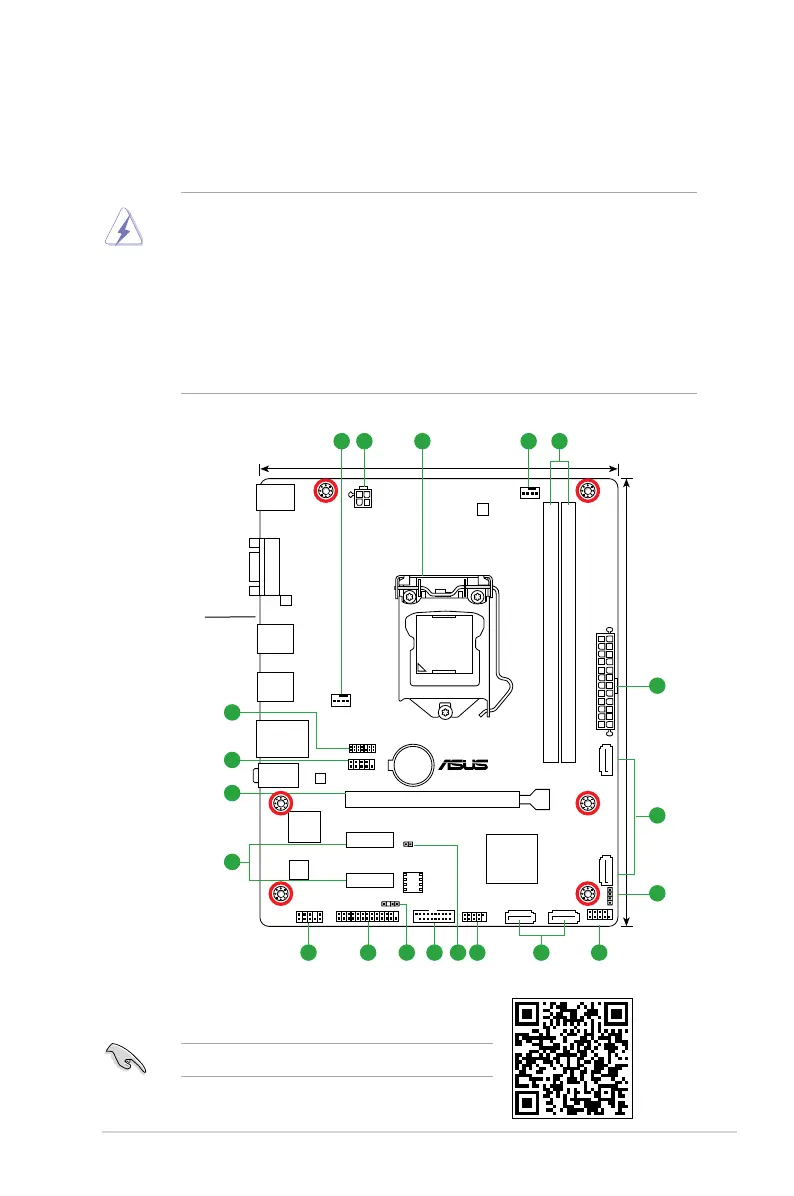

Motherboard overview
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
tostaticelectricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switchedofforthepowercordisdetachedfromthepowersupply.Failuretodoso
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
• Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodoso
cancauseyouphysicalinjuryanddamagetomotherboardcomponents.
Place this
side towards
the rear of the
chassis
ScantheQRcodetogetthedetailedpindenitions.
EX-H110M-V
PCIEX16
PCIEX1_1
PCIEX1_2
USB3_12
F_PANEL
CLRTC
USB910
LPT
AAFP
COM
CHA_FAN
SPDIF_OUT
SPEAKER
ATX12V
EATXPWR
CPU_FAN
BATTERY
Super
I/O
ALC
887
RTL
8111H
RTD
2168
LGA1151
Intel
®
H110
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_B1 (64bit, 288-pin module)
SATA6G_3SATA6G_4
SATA6G_1SATA6G_2
AUDIO
KBMS
18.03cm(7.1in)
22.6cm(8.9in)
64Mb
BIOS
LAN_USB78
USB56
USB3_34
TPM
VGA
DIGI
+VRM
2 3 11 4
2
12 1113
14
5
6
510 789
15
16
17

Asus EX-H110M-V Specifications

General

Brand	Asus
Model	EX-H110M-V
Category	Motherboard
Language	English
