Asus F1A75 User Manual

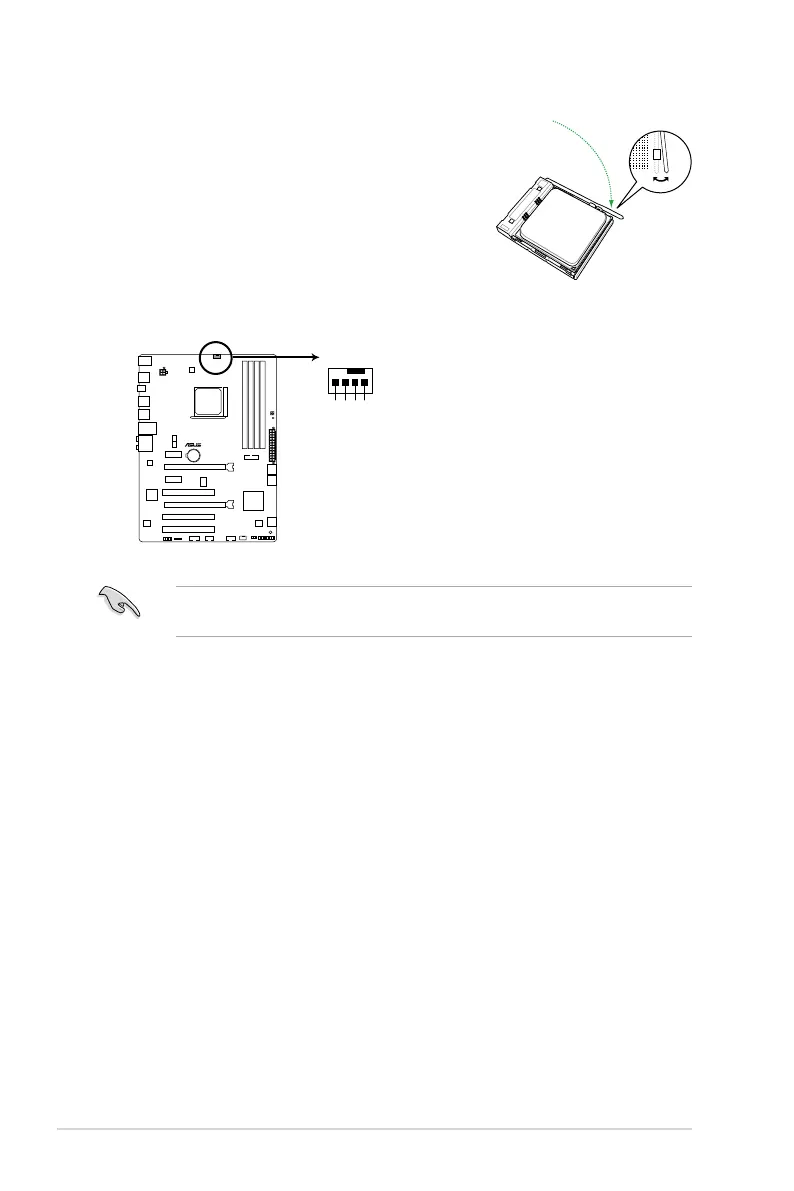

5. When the APU is in place, push down the socket
lever to secure the APU. The lever clicks on the side
tab to indicate that it is locked.
6. Install a APU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.
7. Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
F1A75
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
F1A75 CPU fan connector
Chapter 1: Product introduction1-8

Asus F1A75 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	4 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
Processor socket	Socket FM1
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A75
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	-
Trial software	Anti-virus
Cables included	SATA
Bundled software	ASUS PC Probe II ASUS Update
PCI slots	3
PCI Express slots version	2.0
Graphics card	Radeon HD 6000
RAID levels	0, 1, 10, JBOD
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	224 mm
Width	305 mm
