Advanced Mode

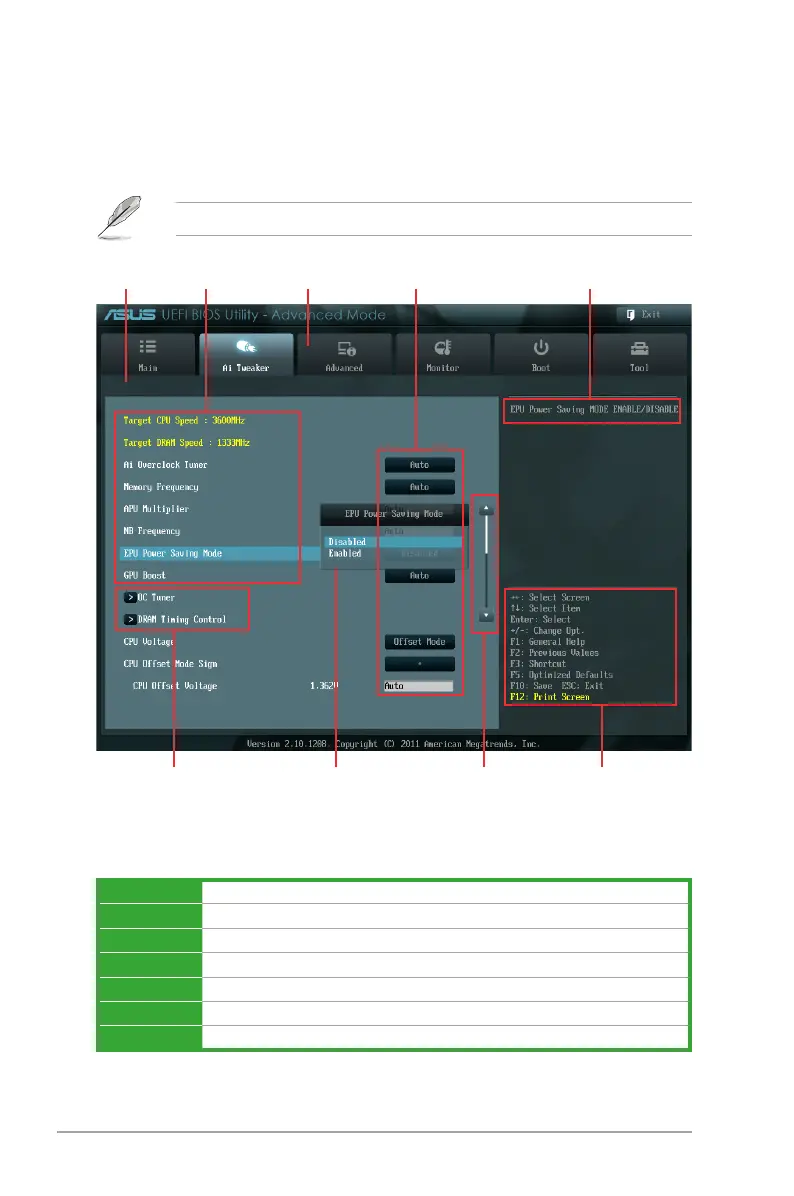

The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode.
Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor For displaying the system temperature, power status, and changing the fan settings
Boot For changing the system boot conguration
Tool For conguring options for special functions
Exit For selecting the exit options and loading default settings
Navigation keys
General help
Menu bar
Submenu item
Conguration elds
Menu items
Scroll bar
Pop-up window
Back button

Asus F2A55-M LK Series Specifications

General

Socket	FM2
Form Factor	Micro ATX
Memory Type	DDR3
PCIe x16 Slots	1 x PCIe 2.0 x16
SATA Ports	6 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 at back panel, 4 at mid-board)
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Memory Standard	DDR3 2400(O.C.)/2133/1866/1600/1333/1066 MHz
Expansion Slots	1 x PCIe 2.0 x1
Video Outputs	DVI-D
LAN	Realtek 8111F, 1 x Gigabit LAN Controller
Power Connector	1 x 4-pin ATX 12V Power connector
