1.4 Accelerated Processing Unit (APU)
This motherboard comes with an FM2 socket designed for AMD
®
A-series accelerated
processors with AMD
®
Radeon™ HD 7000 series graphics.
Ensure that you use a APU designed for the FM2 socket. The APU ts in only one correct
orientation. DO NOT force the APU into the socket to prevent bending the pins and
damaging the APU!

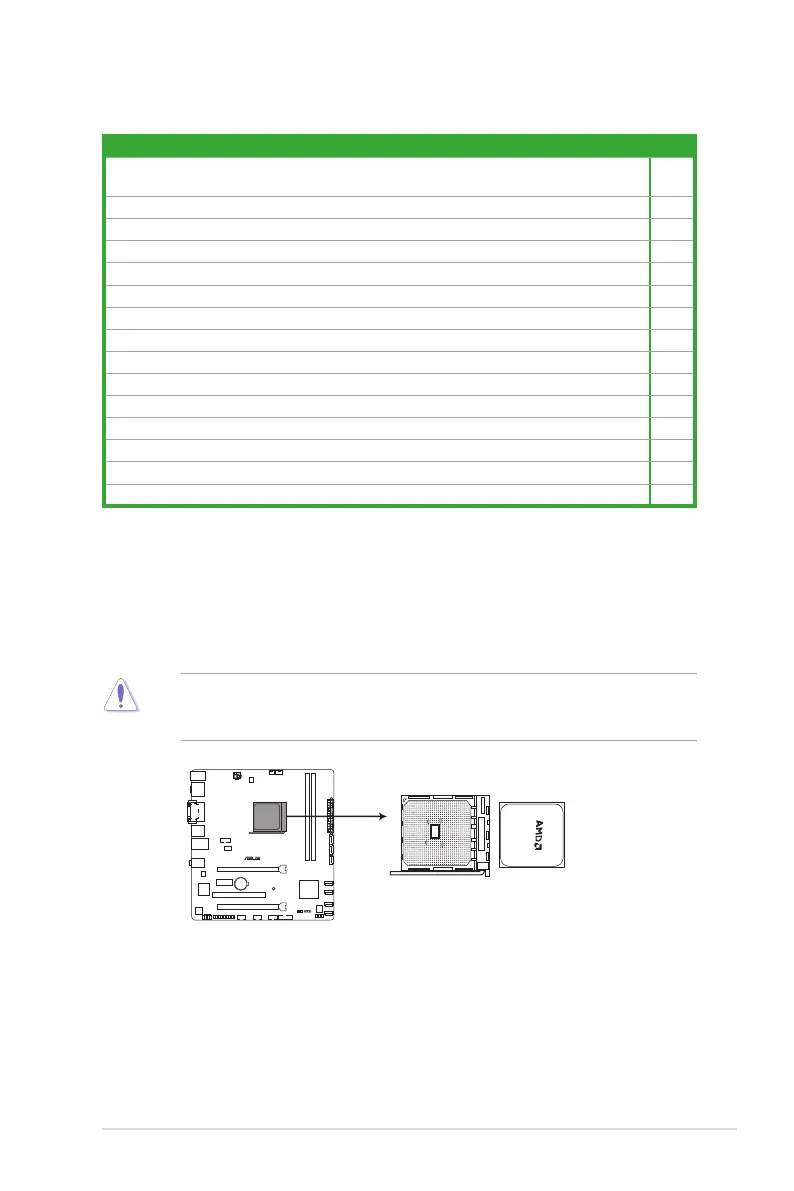

1.3.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. Power, CPU, and chassis fan connectors (3-pin PWR_FAN, 4-pin CPU_FAN, and 4-pin
CHA_FAN)
1-23
2. Serial port connector (10-1 pin COM) 1-29
3. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-24
4. AMD FM2 socket 1-7
5. DDR3 DIMM slots 1-11
6. SATA 6.0Gb/s connectors (7-pin SATA6G_1~7) 1-25
7. System panel connector (10-1 pin F_PANEL) 1-26
8. Speaker connector (4-pin SPEAKER) 1-26
9. Clear RTC RAM (3-pin CLRTC) 1-20
10. Standby power LED (SB_PWR) 1-4
11. USB 3.0 connector (20-1 pin USB3_34) 1-28
12. USB 2.0 connectors (10-1 pin USB56, USB78, USB910) 1-28
13. LPT connector (26-1 pin LPT) 1-29
14. Front panel audio connector (10-1 pin AAFP) 1-27
15. Digital audio connector (4-1 pin SPDIF_OUT) 1-27
F2A85-M LE
F2A85-M LE APU socket FM2
ASUS F2A85-M LE
1-7

Asus F2A85-M LE Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket FM2
Processor manufacturer	AMD
Compatible processor series	AMD A
Maximum number of SMP processors	1
TPM connector	No
USB 2.0 connectors	3
Number of SATA III connectors	7
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
Graphics card	Radeon HD 7000
DirectX version	11
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
PCI Express configurations	1x1, 1x4, 1x16
Trial software	Antivirus
Cables included	SATA
Bundled software	ASUS Utilities ASUS Update
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	244 mm
