1.8.2 Internal connectors
1. Power, CPU, and chassis fan connectors (3-pin PWR_FAN, 4-pin CPU_FAN, and
4-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
• The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
• Only the CPU_FAN connector support the ASUS Fan Xpert feature.
• If you install two VGA cards, we recommend that you plug the rear chassis fan cable
to the motherboard connector labeled CHA_FAN for better thermal environment.
DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. These are not jumpers! DO NOT
place jumper caps on the fan connectors.
F2A85-M LE

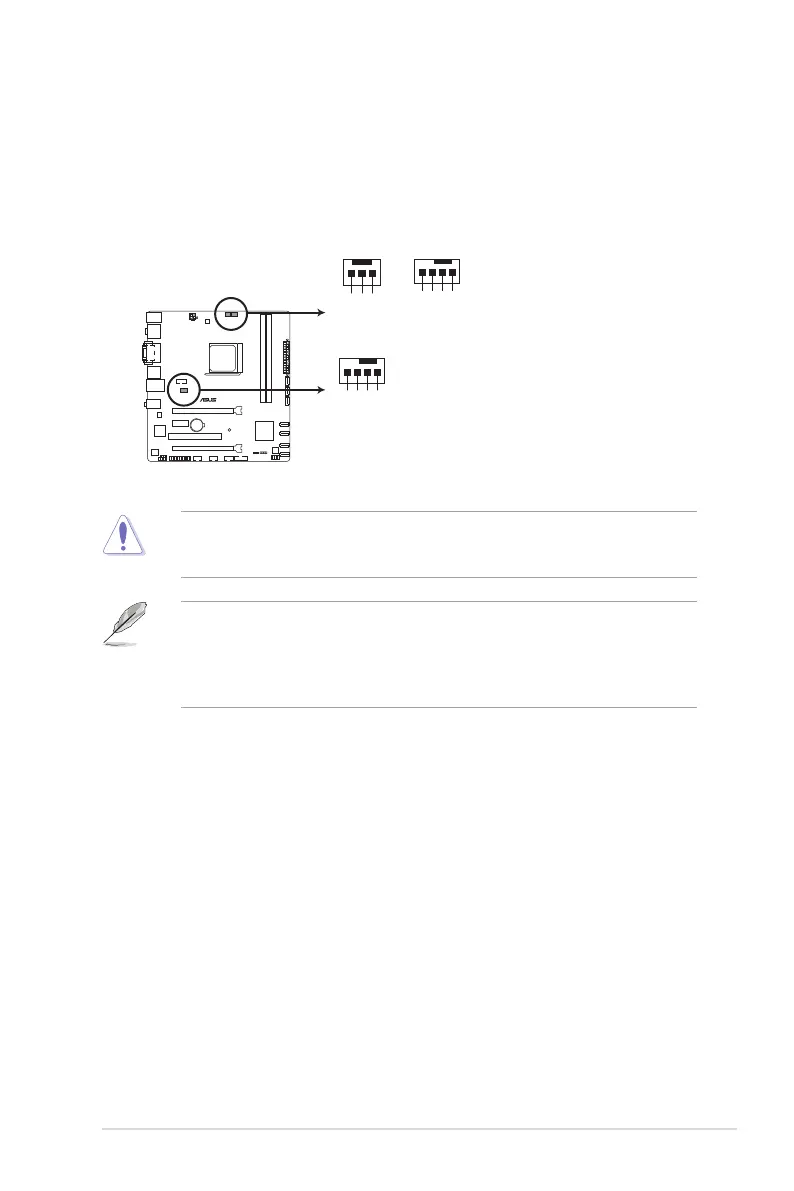

F2A85-M LE Fan connectors
CPU_FANPWR_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA FAN DC Mode
CHA FAN IN
CHA FAN PWR
GND
Rotation
+12V
GND
CHA_FAN
ASUS F2A85-M LE
1-23
