Asus H110M-A D3 User Manual

1-12
Chapter 1: Product introduction
1.7 Connectors

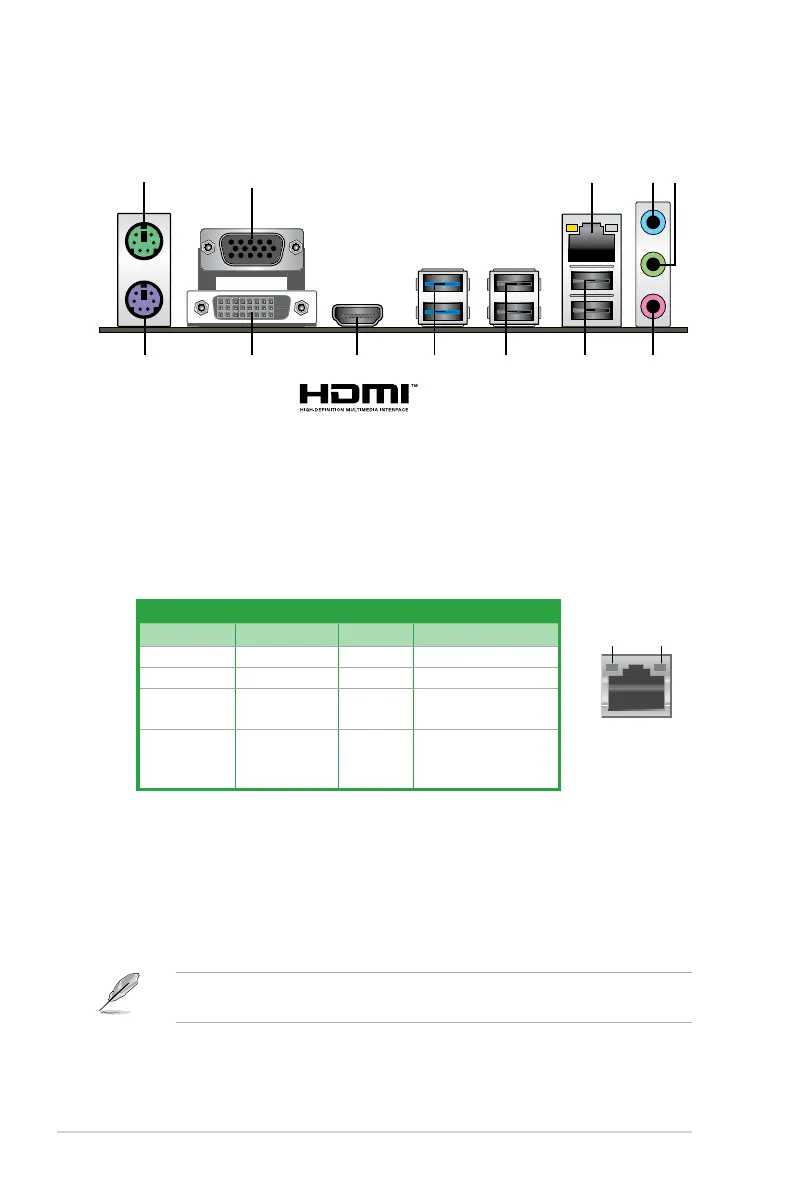

1.7.1 Rear panel connectors
2
4 53
6
78 7
1
11
10 9
4. Line In port (light blue).Thisportconnectstothetape,CD,DVDplayer,orother
audio sources.
5. Line Out port (lime).Thisportconnectstoaheadphoneoraspeaker.Inthe4.1,5.1
and7.1-channelcongurations,thefunctionofthisportbecomesFrontSpeakerOut.
6. Microphone port (pink). This port connects to a microphone.
Refertotheaudiocongurationtableforthefunctionoftheaudioportsin2.1,4.1,5.1,or
7.1-channelconguration.
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port.This15-pinportisforaVGAmonitororother
VGA-compatibledevices.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
through a network hub.
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off Nolink OFF 10Mbpsconnection
Orange Linked ORANGE 100Mbpsconnection
Orange
(Blinking)
Dataactivity GREEN 1Gbps connection
Orange
(Blinkingthen
steady)
Readyto
wake up from
S5mode
_ _
LAN port LED indications

Asus H110M-A D3 Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM, DDR3L-RS-SDRAM, DDR3L-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
PS/2 ports quantity	2
USB 2.0 ports quantity	4
Maximum graphics card memory	1024 MB
USB 2.0 connectors	6
Number of Parallel ATA connectors	0
LAN controller	Realtek RTL8111H
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
Cables included	SATA
Bundled software	ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	185.5 mm
Width	226.2 mm
