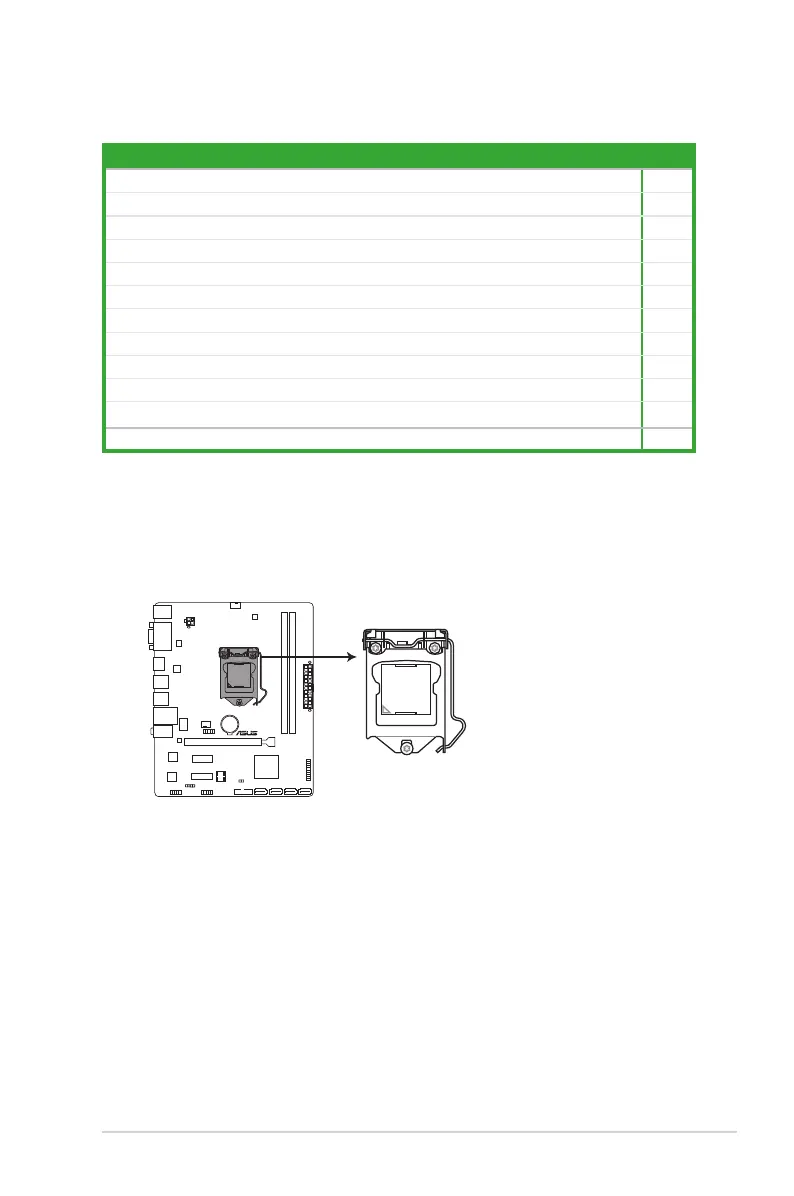

1.2.4 Layout contents
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1151socketdesignedfor6thGeneration
Intel
®
Core™i7/i5/i3,Pentium
®
,andCeleron
®
processors.
Connectors/Jumpers/Slots/LED Page
1.
ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V)
1-17
2.
CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN)
1-19
3.
Serialportconnector(10-1pinCOM)
1-14
4. Intel
®
LGA1151CPUsocket 1-3
5. DDR3DIMMslots 1-7
6. Systempanelconnector(20-5pinPANEL) 1-20
7. Intel
®
H110SerialATA6.0Gb/sconnector(7-pinSATA6G_1~4)
1-16
8. USB3.0connectors(20-1pinUSB3_12) 1-16
9. ClearRTCRAM(2-pinCLRTC) 1-11
10. USB2.0connectors(USB910) 1-15
11. Digitalaudioconnector(4-1pinSPDIF_OUT)
1-18
12. Frontpanelaudioconnector(10-1pinAAFP) 1-18
H110M-E D3
H110M-E D3 CPU socket LGA1151

Asus H110M-E D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	2
Maximum Memory	32GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	4 x SATA 6Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek RTL8111H, 1 x Gigabit LAN Controller
Memory Standard	DDR3 1600/1333 MHz
USB 3.0 Ports	2 (rear), 2 (front)
USB 2.0 Ports	6 (2 rear, 4 via headers)
Graphics Output	DVI-D, D-Sub
