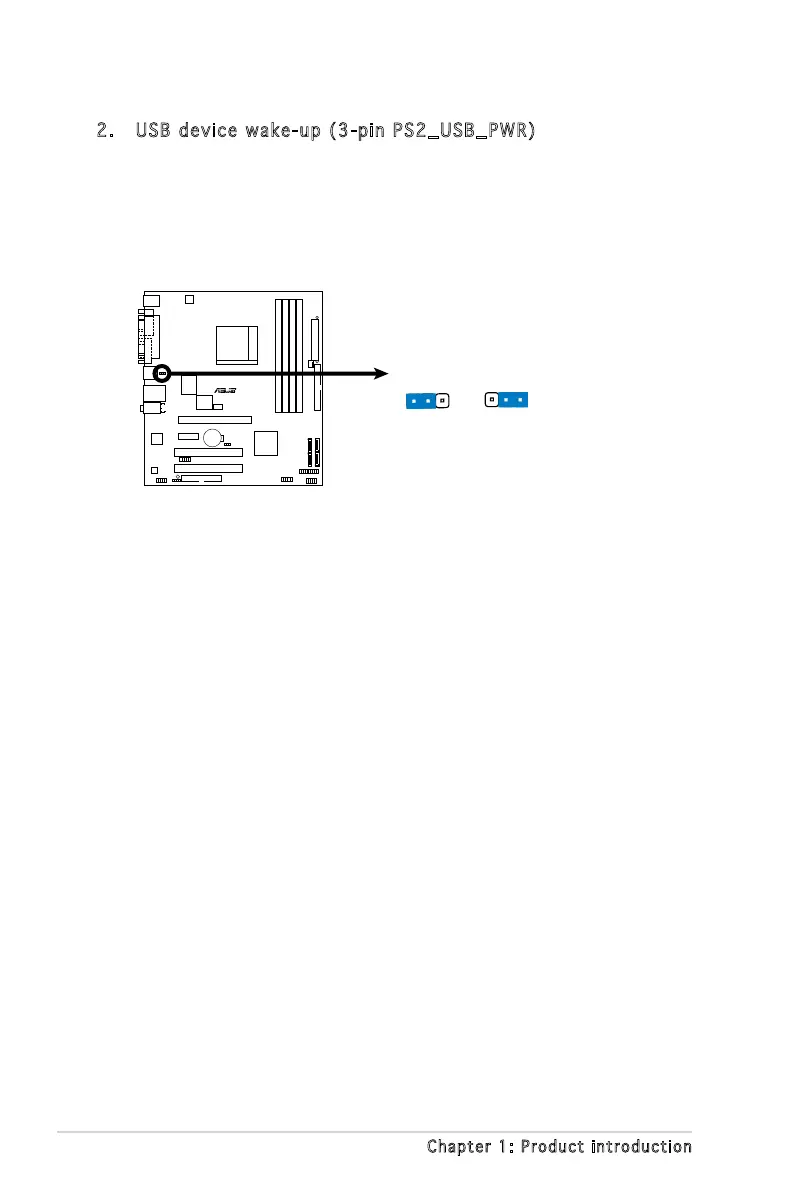

2. USB device wake-up (3-pin PS2_USB_PWR)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) to wake up the computer
when you press a key on the keyboard (the default is the Space Bar).
This feature requires an ATX power supply that can supply at least
500 mA on the +5VSB lead, and a corresponding setting in the BIOS.
M2N-MX
R
M2N-MX USB Device Wake Up
3
2
2
1
PS2_USB_PWR
(Default)
+5V
+5VSB

Asus M2N-MX Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	ASUS PC Probe II ASUS LiveUpdate AMD Cool'n'Quiet
Graphics card	GeForce 6100
Special features	ASUS Q-Fan ASUS My Logo 2 ASUS CrashFreeBIOS2 ASUS EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR, PXE
Controller interface type	NVIDIA MCP61P
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1

Weight and Dimensions

Depth	222 mm
Width	245 mm
