2.7.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.
2. NVIDIA
®
IDE connector (40-1 pin PRI_IDE)
The onboard IDE connector is for the Ultra DMA (133/)100/66 signal cable.
There are three connectors on each Ultra DMA 133/100/66 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard’s IDE
connector, then select one of the following modes to congure your device.
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices.
If any device jumper is set as “Cable-Select,” make sure all other device
jumpers have the same setting.
Drive jumper setting Mode of
device(s)
Cable connector
Single device Cable-Select or Master - Black
Two devices Cable-Select Master
Black
Slave Gray
Master Master Black or gray
Slave Slave
M2N32 WS PRO
®

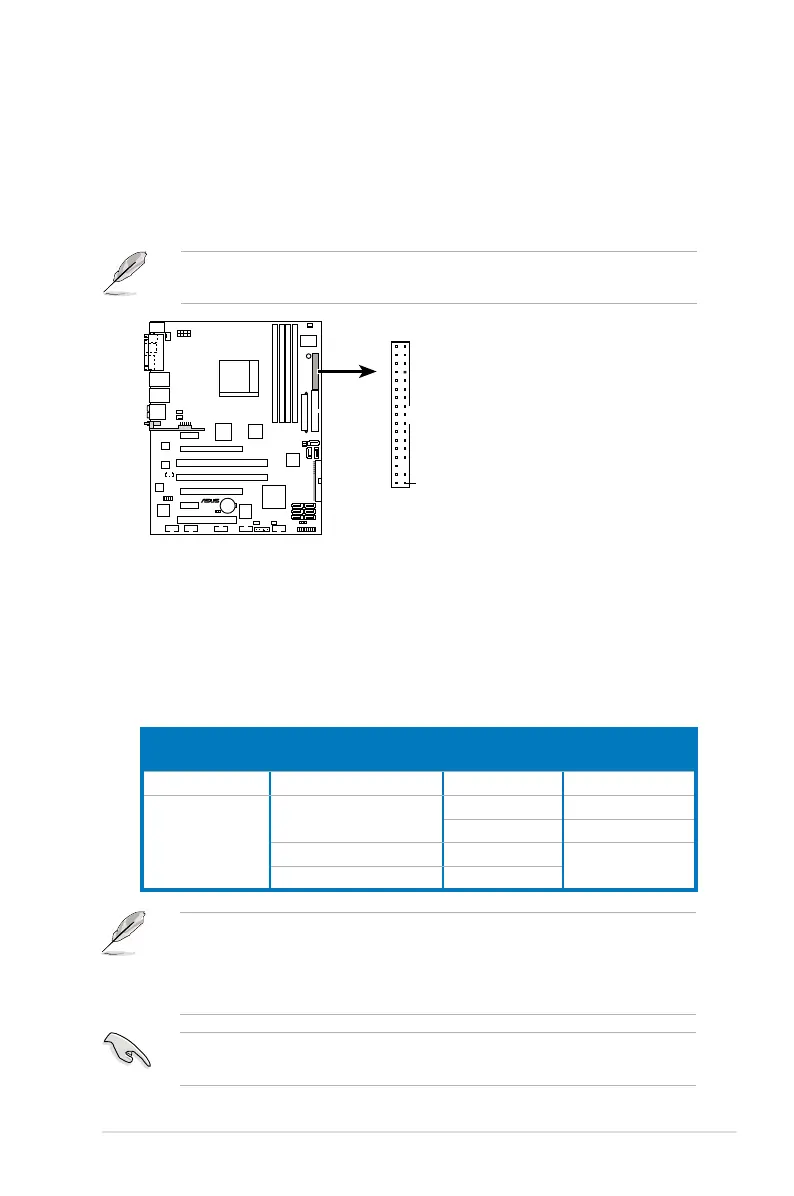

M2N32 WS PRO Floppy disk drive connector
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY

Asus M2N32 WS Professional Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	6
Number of SATA connectors	9
Special features	AMD Cool 'n' Quiet Stack Cool 2 Q-Fan 2 AI Nap AI Gear My Logo 3 ASUS AI NET2 CrashFree BIOS 3 EZ Flash 2 Q-Connector ASUS AI Quiet
Manageability features	WOL PME, WOR PME, PXE, AI NET2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988B
Audio output channels	7.1 channels
Motherboard form factor	ATX
Bundled software	Drivers BIOS flash utility under DOS ASUS PC Probe II ASUS Update Anti-Virus Adobe Acrobat Reader 7.0 ASUS AI utility Microsoft Direct X ver 9.0c
LAN controller	Marvell 88E1116
Networking features	Dual Gigabit LAN
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Depth	245 mm
Width	305 mm
