1.6 Central Processing Unit (CPU)
The motherboard comes with a 940-pin AM2 socket designed for the AMD
Athlon™ 64 X2/Athlon™ 64/Athlon™ FX/Sempron™ processor.
The AM2 socket has a different pinout from the 940-pin socket designed for the
AMD Opteron™ processor. Make sure you use a CPU is designed for the AM2
socket. The CPU ts in only one correct orientation. DO NOT force the CPU into
the socket to prevent bending the connectors on the socket and damaging the
CPU!
1.6.1 Installing the CPU
To install a CPU.

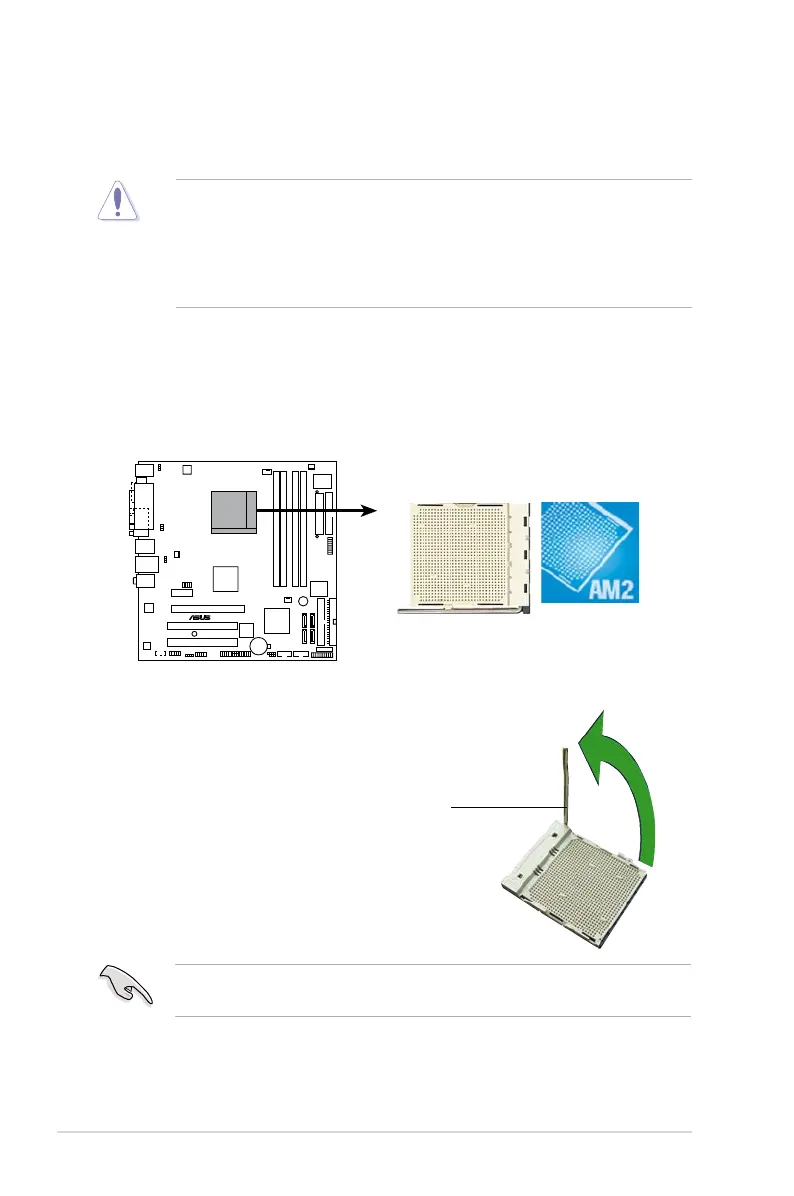

1. Locate the CPU socket on the motherboard.
2. Unlock the socket by pressing the
lever sideways, then lift it up to a
90°-100° angle.
Make sure that the socket lever is lifted up to 90°-100° angle, otherwise the
CPU does not t in completely.
Socket lever
M2NPV-VM
®
M2NPV-VM CPU Socket AM2

Asus M2NPV-VM Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
Special features	ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR, PXE
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	NVIDIA MediaShield RAID ASUS PC Probe II ASUS LiveUpdate AMD Cool ' n' Quiet Anti-virus (OEM)
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
