Chapter 4: Software support
Chapter 4
RPM Mode
RPM Mode allows you to set the fan speed at its fixed value when the CPU temperature
drops 75
o
C and below.
• When the CPU temperature reaches 75
o
C, the fan automatically runs at full speed to
protect the CPU.
• Fan Xpert 2 may not be able to detect the fan speed if you install the fan with an
external control kit for rotation speed.
• Fan Xpert 2 only supports fans with 4-pin and 3-pin connectors. If you install a 2-pin
fan, it can only run at its full speed.
• If you change the CPU or chassis fans, you must repeat the Fan Auto Tuning process.

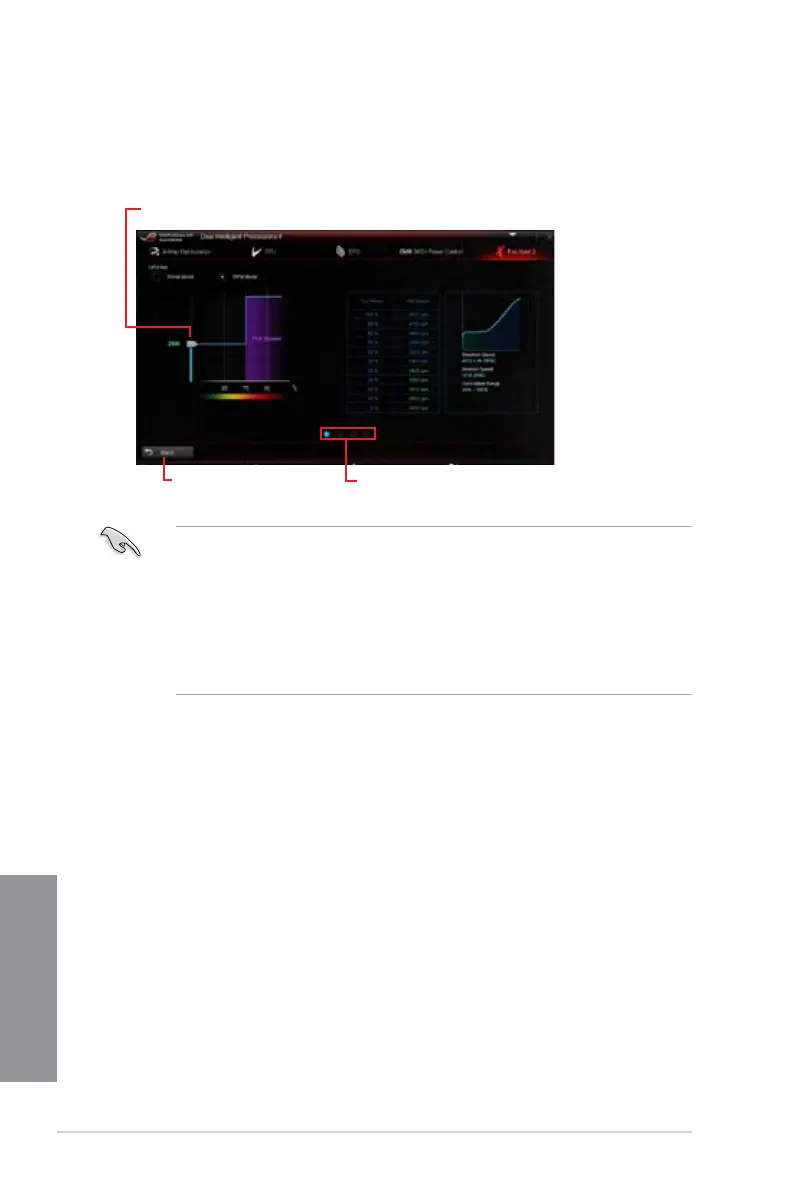

Drag the slider up or down to adjust
the fan’s speed
Click or tap to switch between the
CPU and chassis fan screens
Click or tap to go back to
the previous screen

Asus Maximus VI Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	2
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	5
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x8, 1x16, 2x8
Cables included	SATA
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
