ASUS MAXIMUS VI EXTREME
2-21
Chapter 2
2.4 OC Panel
The OC Panel is a device that allows you to perform overclocking without the need to go to
the BIOS settings or use software utilities. You can setup the OC Panel in an available 5.25-
inch drive bay on your computer chassis (Normal Mode) or as an external handheld console
on an “open-air” OC test bench (Extreme Mode.)
These modes are further explained in the succeeding subsections.
• Ensure that your system has adequate cooling designed for overclocking before using
the OC Panel.
• When updating the OC Panel firmware, you have to disable the USB XHCI function in
BIOS. To do this, click Advanced > USB Conguration > Intel xHCI Mode then set
Intel xHCI Mode to [Disabled].

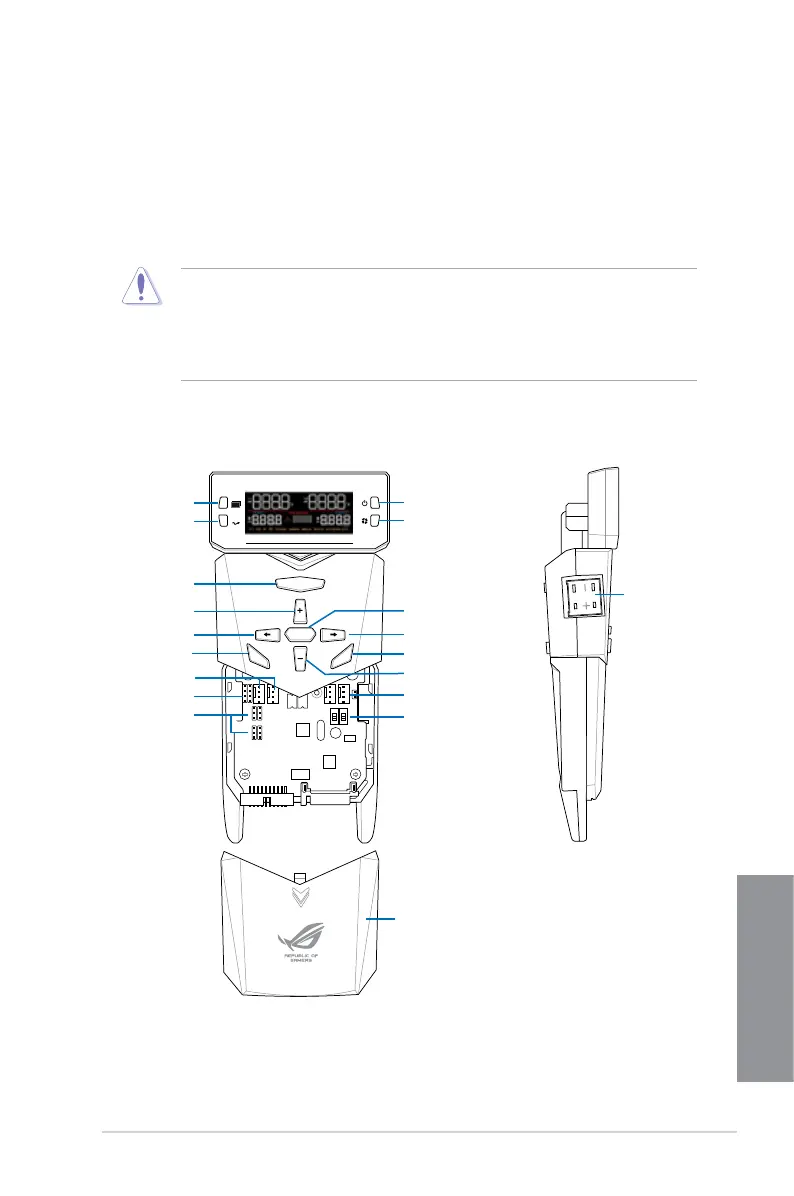

2.4.1 OC Panel Overview
ON
OFF
ON
OFF
OC
Start
Clear
Reset
OK
OC
Start
Clear
Reset
OK
Subzero Sense
connector
ON
OFF
ON
OFF
Start
Clear
Reset
OK
OC
Normal/Extreme
Mode Switch
CPU Level Up
Start Button
Value up Button
Left Arrow button
LCM Power Button
FanSpeed Control
button
OK button
Reset button
Value Down button
Right Arrow button
Clear button
Fan connectors 1,2
VGA hotwire
connectors
Fan connectors 3,4
VGA hotwire
Pause/Slow Mode
OC Panel cover

Asus Maximus VI Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	2
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	5
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x8, 1x16, 2x8
Cables included	SATA
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
