Asus MAXIMUS VI HERO User Manual

4-2
Chapter 4: Software support
Chapter 4
4.2.2 Obtaining the software manuals
The software manuals are included in the support DVD. Follow the instructions below to get
the necessary software manuals.
The software manual les are in Portable Document Format (PDF). Install the Adobe
®
Acrobat
®
Reader from the Utilities tab before opening the les.
To read about your motherboard’s utility guide:
2. From the Manual folder, open the
folder of the software manual that
you wish to read.

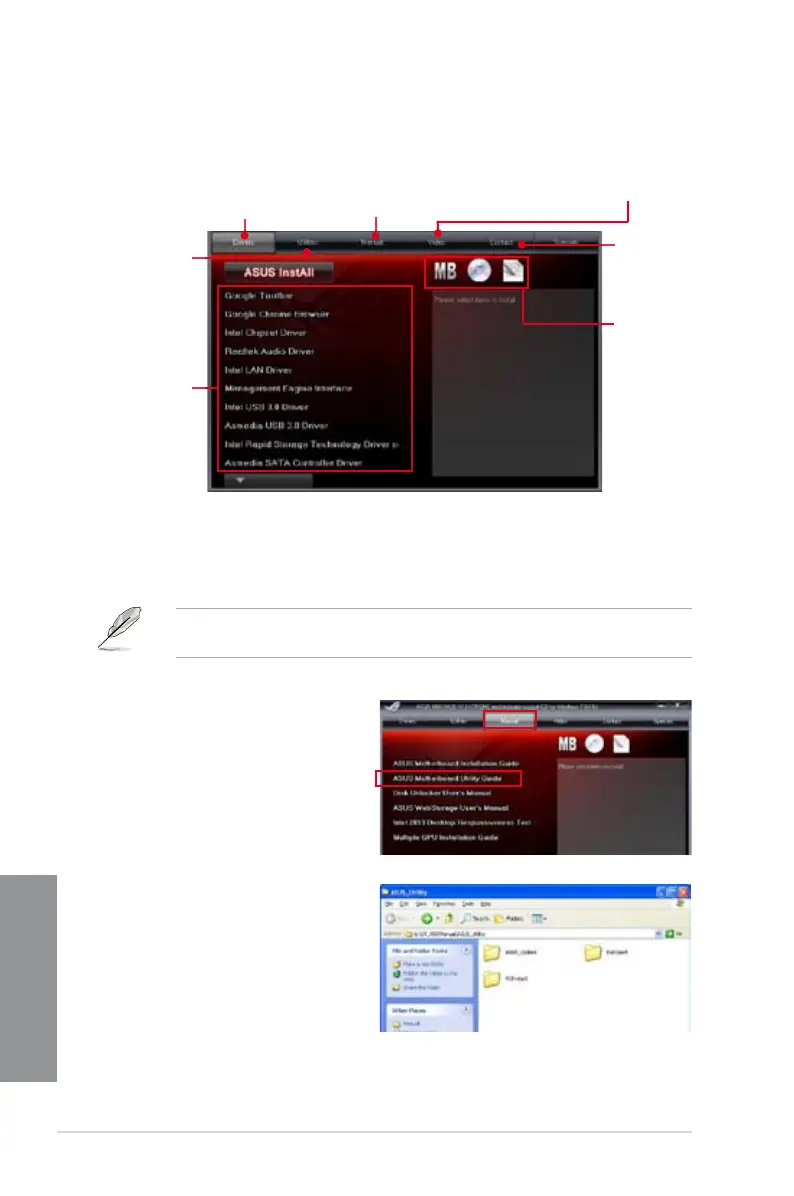

Support DVD main menu
The Drivers menu shows the available
device drivers if the system detects
installed devices. Install the necessary
drivers to use the devices.
The Utilities
menu shows
the applications
and other
software that
the motherboard
supports.
The Video menu contains
ROG related videos.
The Manual menu contains the list
of supplementary user manuals.
Click an item to open the folder of
the user manual.
Click the
Contact tab
to display the
ASUS contact
information.
Click an icon
to display DVD/
motherboard
information
Click an item
to install
1. Click Manual tab > ASUS
Motherboard Utility Guide.

Asus MAXIMUS VI HERO Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	8
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	3
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x8
Cables included	SATA
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
