1-6 Chapter 1: Product introduction

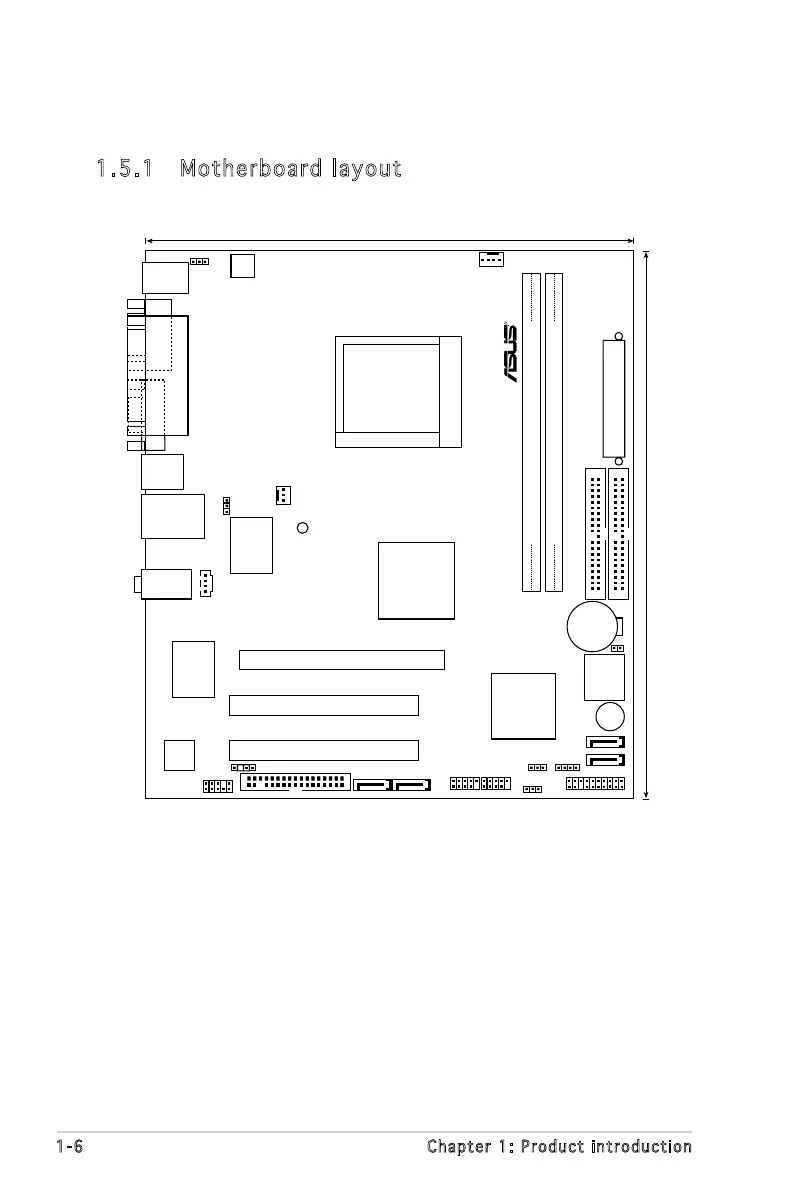

1.5.1 Motherboard layout
1.5 Motherboard overview
M2V-MX
21.8cm (8.6in)
24.5cm (9.6in
)
R
Socket M2
CPU_FAN
DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module)
EATXPWR
PRI_IDE SEC_IDE
CR2032 3V
Lithium Cell
CMOS Power
BIOS_WP
4Mb
BIOS
BUZZER
SATA1
SATA_E1 SATA_E2
SATA2
PANEL
CLRTC CHASSIS
USBPW5-8
USB78USB56
VIA
VT8237A
VIA
K8M890
PCI2
PCI1
PCIEX16
SPDIF_OUT
FLOPPY
AAFP
RTL8100C
ALC883
CHA_FAN
SB_PWR
LAN2_USB34
AUDIO
PARALLEL
POR
T
VGA COM1
PS/2KBMS
T: Mouse
B: Keyboard
USB12
ATX12V
KBPWR
CD
USBPW1-4
Super I/O
