ASUS P5AD2-EASUS P5AD2-E

ASUS P5AD2-E

2-192-19

2-19

2.5.42.5.4

2.5.4

PCI slotsPCI slots

PCI slots

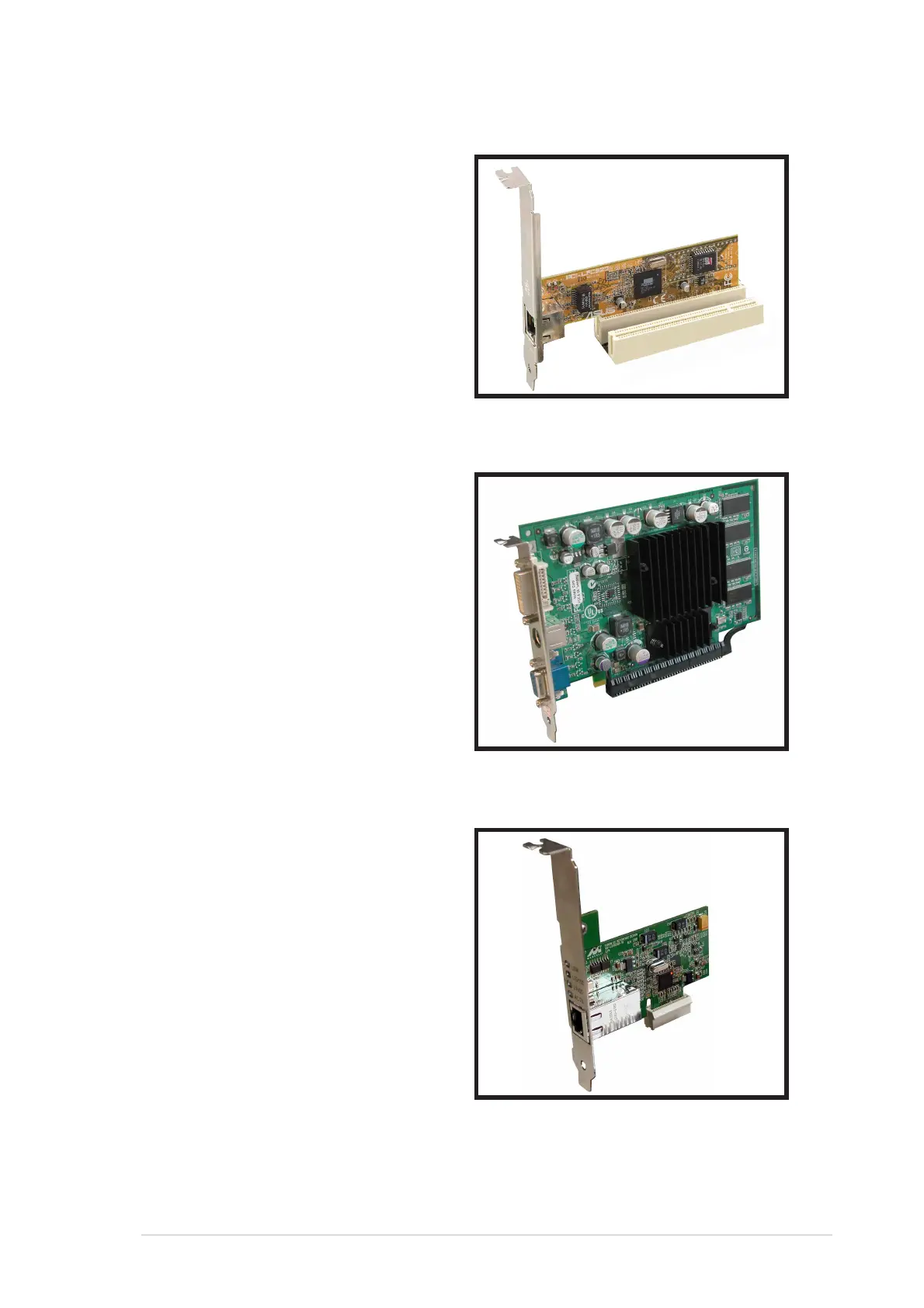

The PCI slots support cards such as a

LAN card, SCSI card, USB card, and

other cards that comply with PCI

specifications. The figure shows a

LAN card installed on a PCI slot.

2.5.52.5.5

2.5.5

PCI Express x16 slotPCI Express x16 slot

PCI Express x16 slot

This motherboard supports PCI

Express x16 graphic cards that

comply with the PCI Express

specifications. The following figure

shows a graphics card installed on

the PCI Express x16 slot.

2.5.62.5.6

2.5.6

PCI Express x1 slotPCI Express x1 slot

PCI Express x1 slot

This motherboard supports PCI

Express x1 network cards, SCSI cards

and other cards that comply with the

PCI Express specifications. The

following figure shows a network card

installed on the PCI Express x1 slot.
