1-6 Chapter 1: Product introduction

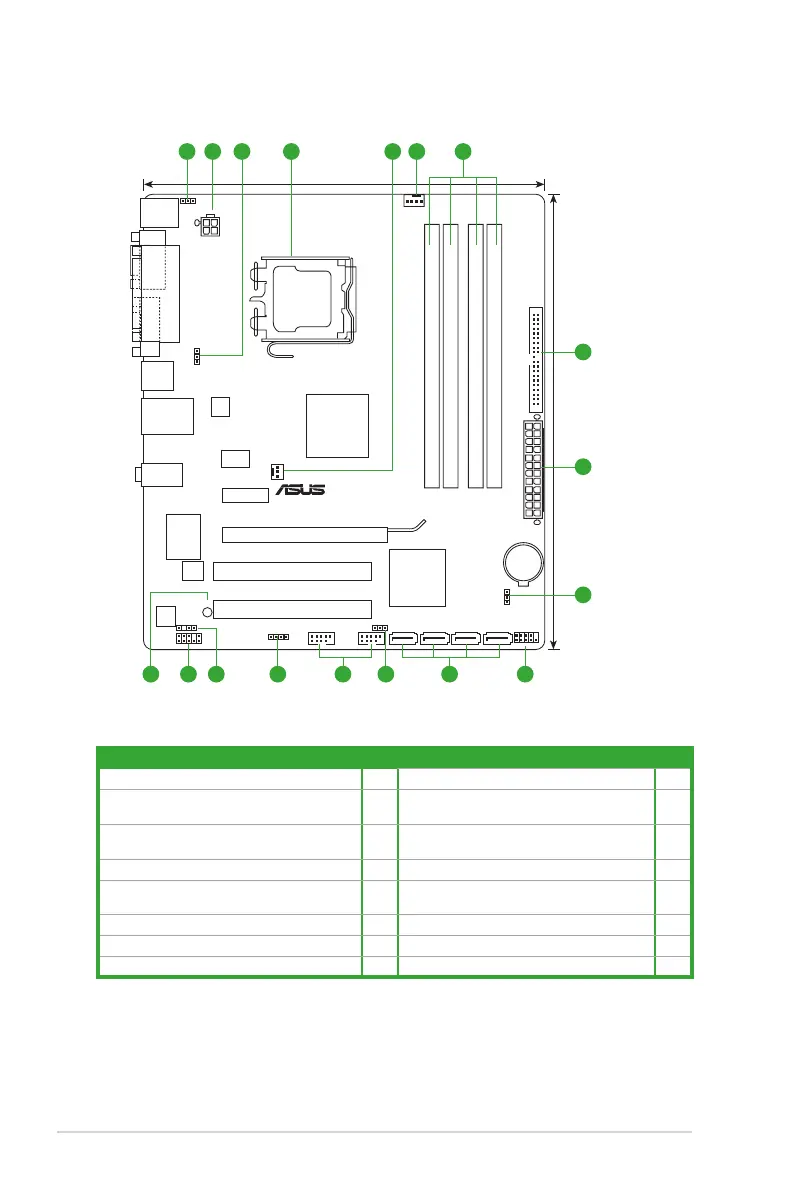

1.5.3 Motherboard layout
P5G41C-M LX
PCIEX16
PCIEX1_1
PCI2
PCI1
PRI_IDE
USB78
USB56
F_PANEL
AAFP
ICS
9LRS954
ATX12V
EATXPWR
CPU_FAN
Intel
®
G41
Lithium Cell
CMOS Power
Super
I/O
AUDIO
VIA
VT1708S
RTL
8112L
KBMS
8Mb
BIOS
SB_PWR
CLRTC
USBPW1-4
USBPW5-8
SPEAKER
SPDOF_OUT
KBPWR
21.6cm(8.5in)
24.4cm(9.6in)
LGA775
Intel
®
ICH7
DDR3 DIMM_A1 (64bit, 240-pin module) DDR2 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR2 DIMM_B1 (64bit, 240-pin module)
LAN1_USB12
USB34
SATA1 SATA2 SATA3 SATA4
CHA_FAN
VGA
LPT
COM
3
7
1 2 654 5
2
8
10 91214 1315 11 3
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Keyboard power (3-pin KBPWR) 1-22 9. System panel connector (10-1 pin F_PANEL) 1-29
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-26 10. Serial ATA connectors (7-pin SATA1-4) 1-27
3. USB device wake-up (3-pin USBPW1-4, 3-pin
USBPW5-8)
1-22 11. USB connectors (10-1 pin USB56, USB78) 1-27
4. Intel LGA775 CPU socket 1-7 12. Speaker connector (4-pin SPEAKER) 1-29
5. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-28 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-28
6. DIMM slots 1-12 14. Front panel audio connector (10-1 pin AAFP) 1-24
7. IDE connector (40-1 pin PRI_IDE) 1-25 15. Onboard LED (SB_PWR) 1-4
8. Clear RTC RAM (3-pin CLRTC) 1-21
