Serial ATA connectorsSerial ATA connectors
Serial ATA connectorsSerial ATA connectors
Serial ATA connectors
(7-pin SATA1, SATA2, SATA3, SATA4)(7-pin SATA1, SATA2, SATA3, SATA4)
(7-pin SATA1, SATA2, SATA3, SATA4)(7-pin SATA1, SATA2, SATA3, SATA4)
(7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives.
Important notes on Serial ATAImportant notes on Serial ATA
Important notes on Serial ATAImportant notes on Serial ATA
Important notes on Serial ATA
• You must install Windows
®
2000 Service Pack 4 or the Windows
®
XP
Service Pack1 before using Serial ATA hard disk drives.
• When using the connectors in standard IDE mode, connect the primary
(boot) hard disk drive to the SATA1 or SATA2 connector. Refer to the
table below for the recommended hard disk drive connections.
ConnectorConnector
ConnectorConnector
Connector
ColorColor
ColorColor
Color
SettingSetting
SettingSetting
Setting
UseUse
UseUse
Use
SATA1, SATA2SATA1, SATA2
SATA1, SATA2SATA1, SATA2
SATA1, SATA2 Red Master Boot Disk
SATA3, SATA4SATA3, SATA4
SATA3, SATA4SATA3, SATA4
SATA3, SATA4 Black Slave Data Disk
Serial ATA Master/Slave connectorsSerial ATA Master/Slave connectors
Serial ATA Master/Slave connectorsSerial ATA Master/Slave connectors
Serial ATA Master/Slave connectors

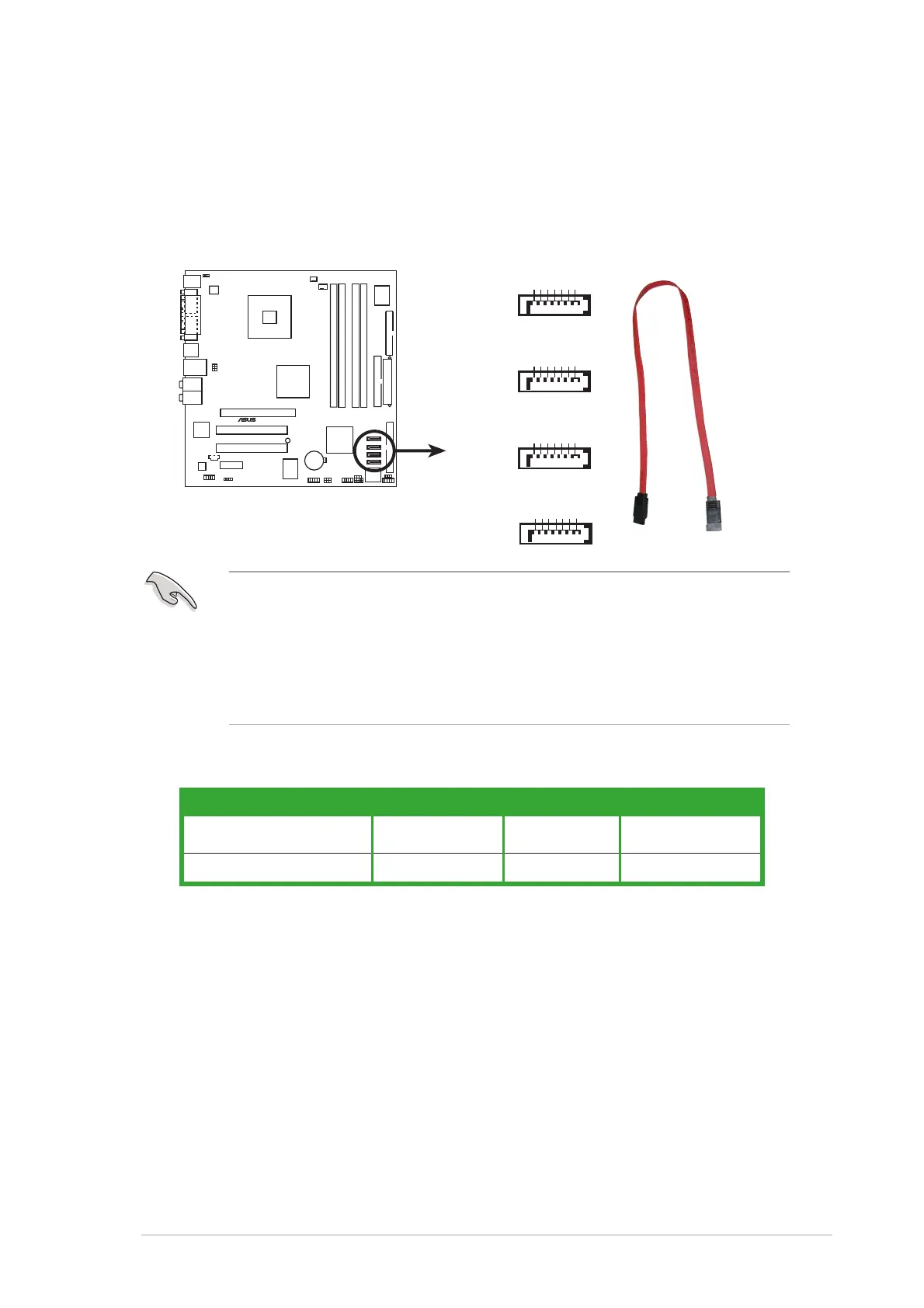

P5GD1-VM
®
P5GD1-VM SATA connectors
SATA1
SATA4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
SATA2
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
