ASUS P5LP-LE (Lithium-UL8E)ASUS P5LP-LE (Lithium-UL8E)

ASUS P5LP-LE (Lithium-UL8E)

3. System memory

The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline

Memory Module (DIMM) sockets.

A DDR2 module has the same physical dimensions as a DDR DIMM but has a

240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are

notched differently to prevent installation on a DDR DIMM socket.

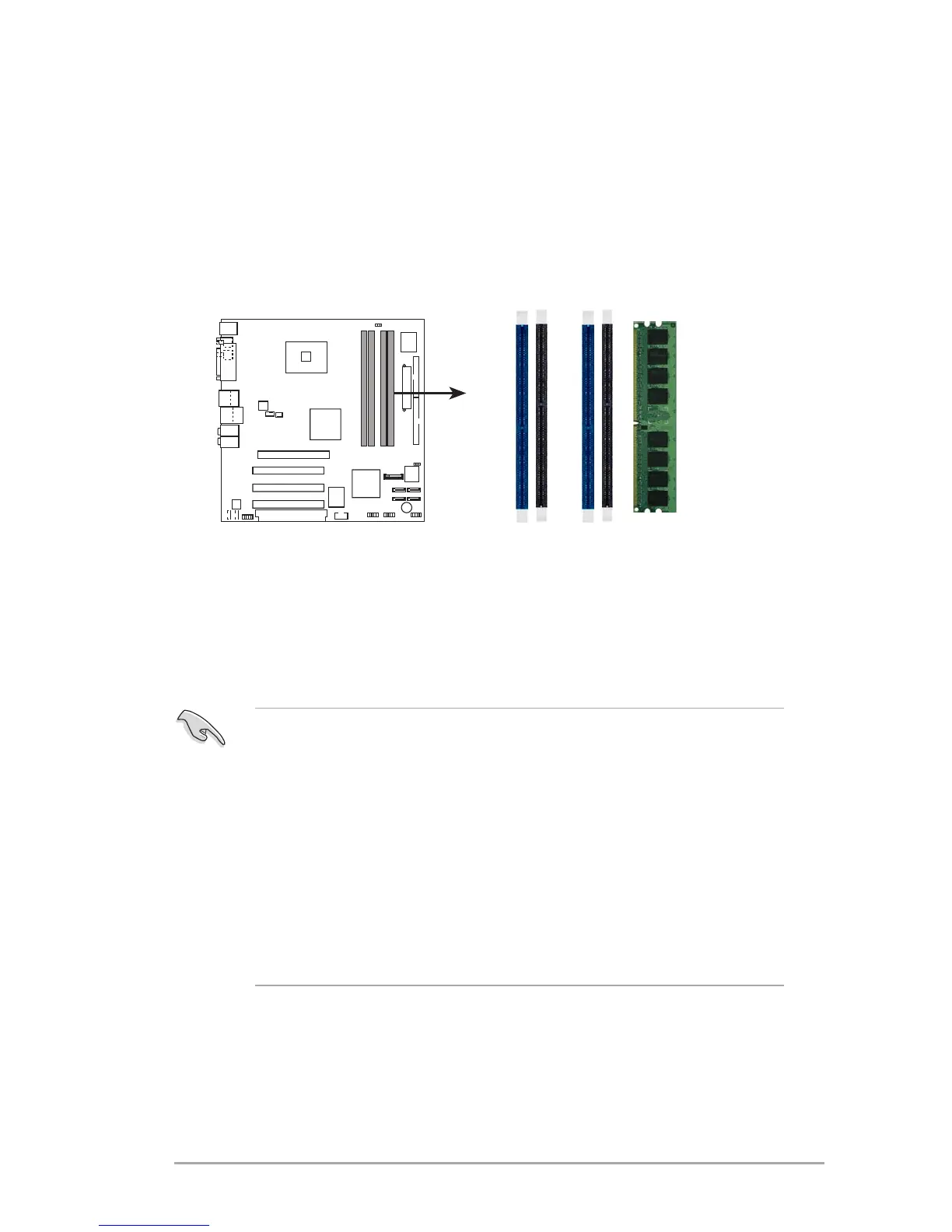

The following figure illustrates the location of the DDR2 DIMM sockets.

3.13.1

3.1

Memory configurationsMemory configurations

Memory configurations

You can install 256 MB, 512 MB, and 1 GB DDR2 SDRAM DIMMs into the

DIMM sockets using the memory configurations in this section.

• Installing DDR2 DIMMs other than the recommended configurations

may cause memory sizing error or system boot failure. Use any of

the recommended configurations on the next page.

• Install only

identical identical

identical (the same type and size) DDR2 DIMM pairs

using the recommended configurations.

• Make sure that the memory frequency matches the CPU FSB (Front

Side Bus). Refer to the Memory frequency/CPU FSB synchronization

table on the next page.

• This motherboard does not support double-sided 16-bit DDR DIMMs.

• Do not create a three-DIMM configuration in dual-channel mode. The

third DIMM is ignored in the dual-channel operation.

P5LP-LE

P5LP-LE 240-pin DDR2 DIMM sockets

DIMM_A1

DIMM_A2

DIMM_B1

DIMM_B2
