1-21Chapter 1: Product introduction
IRQ assignments for this motherboard
A B C D E F G H
Intel PCH SATA controller #0 – – – shared – – – –
Intel PCH SATA controller #1 – – – shared – – – –
Realtek 8111F controller – shared – – – – – –

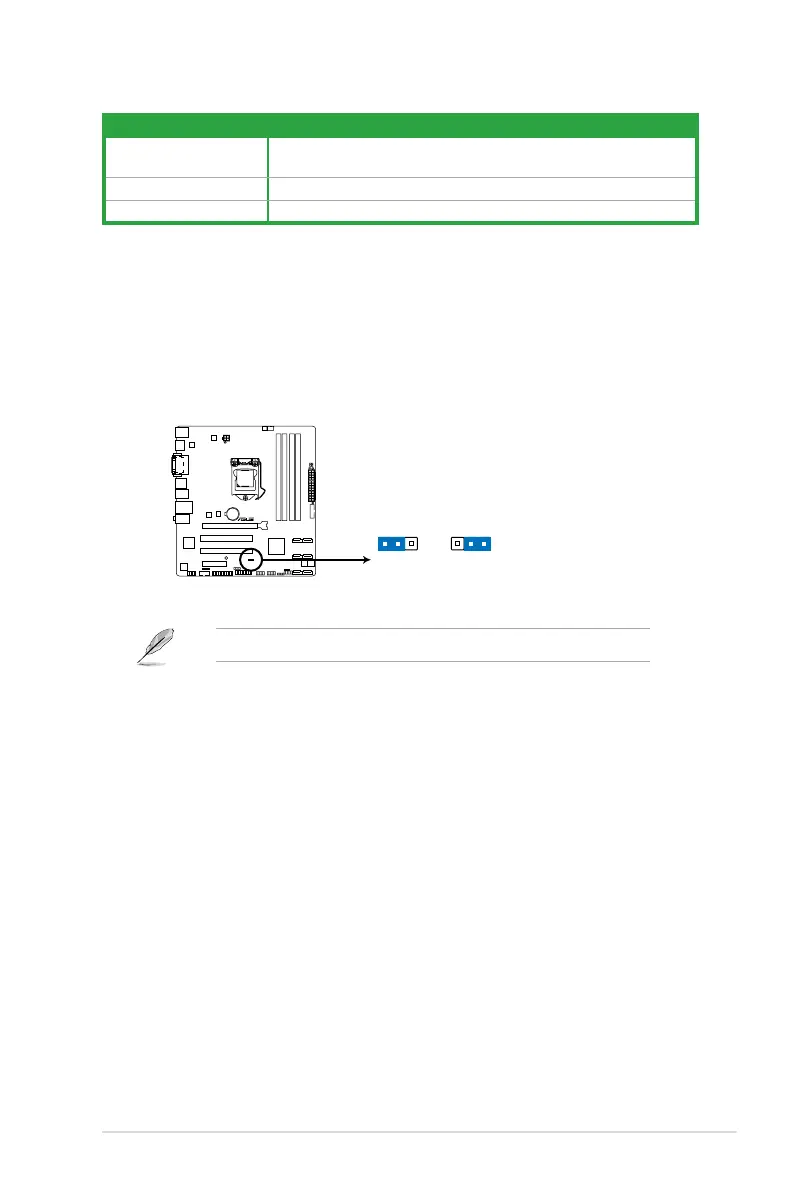

1.9 Jumpers
1. Intel
®
ME jumper (3-pin DIS_ME)
This jumper allows you to enable or disable the Intel
®
ME function. Set this jumper to
pins 1-2 to enable (default) the Intel
®
ME function and to pins 2-3 to disable it.
Disable the Intel
®
ME function only when you want to update it.
