Asus P8H61-I User Manual

ASUS P8H61-I 1-10
1.7 Connectors

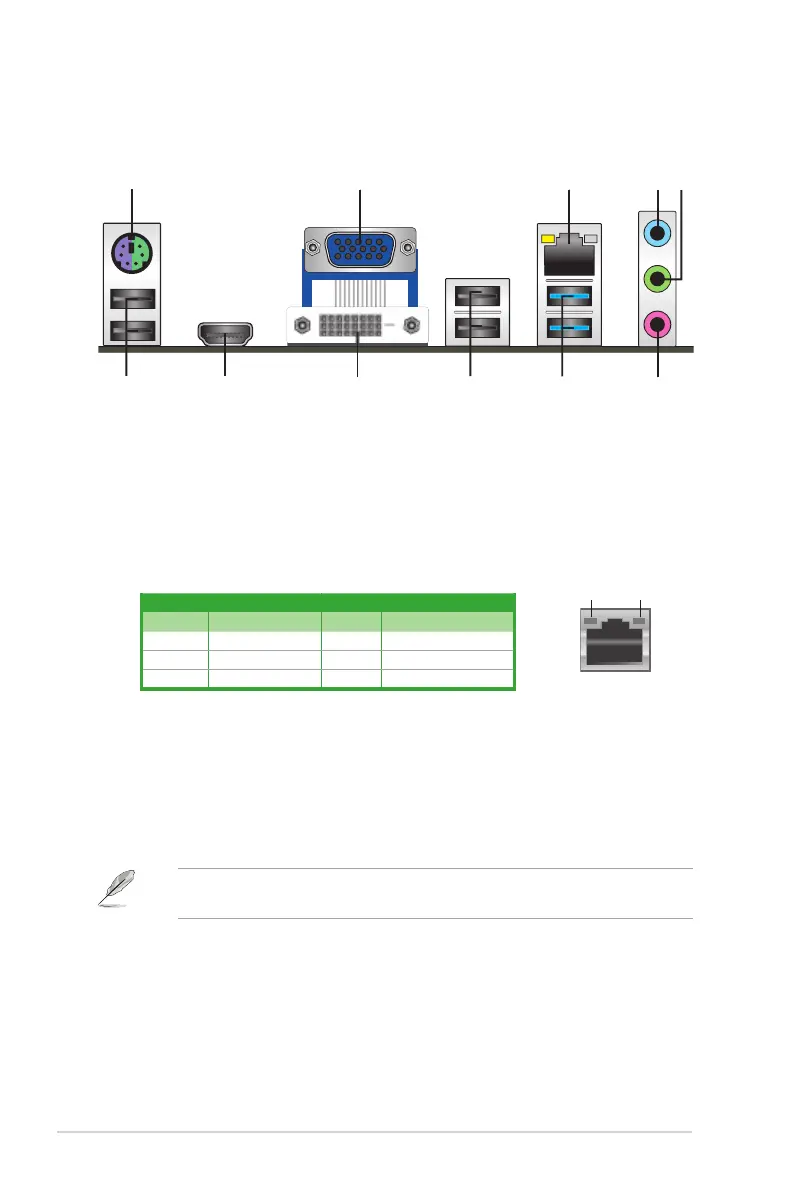

1.7.1 Rear panel connectors
1. PS/2 Keyboard / Mouse Combo port. This port is for a PS/2 keyboard or PS/2
mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
1
11
3
7
8
10
4 5
6
9
2
LAN port
Speed
LED
Activity Link
LED
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel congurations, the function of this port becomes Front
Speaker Out.
6. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel conguration.
