ASUS P8H61-M LX3 Series1-22

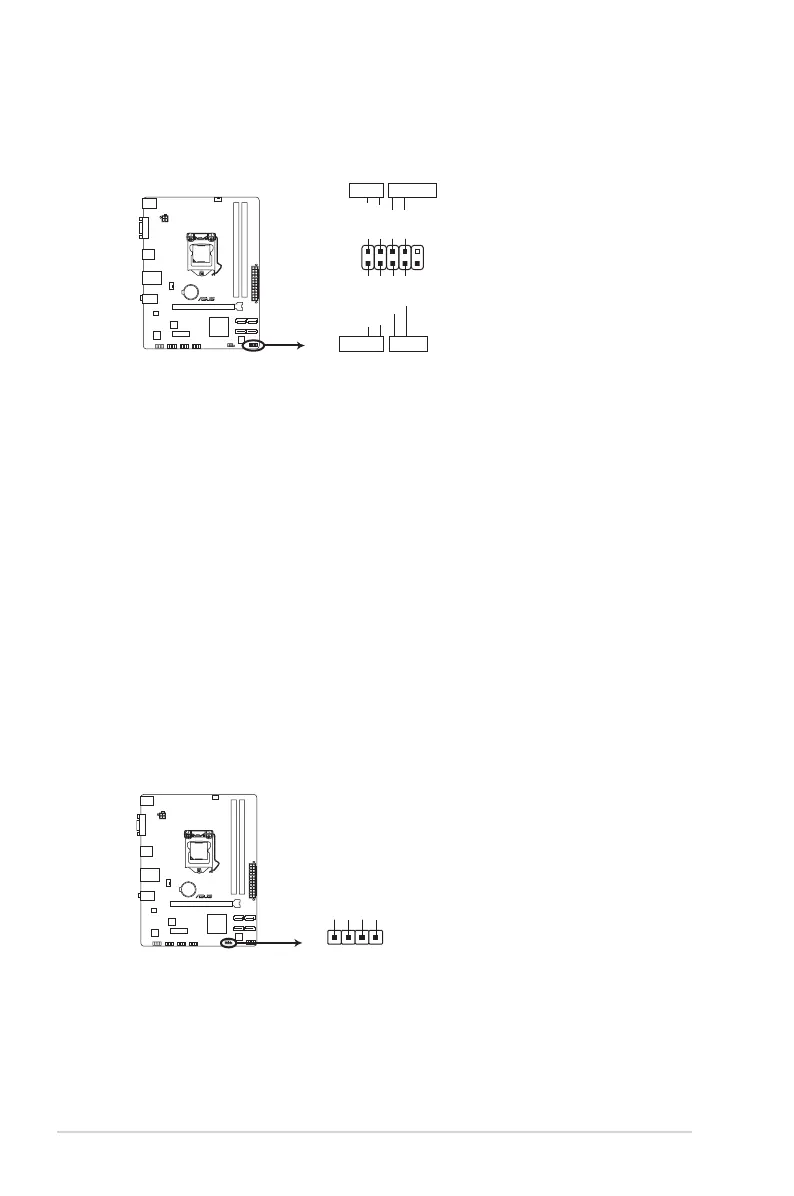

6. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• Power/Soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
7. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8H61-M LX3 Series
PIN 1
PWRBTN
PLED+ PLED- PWR GND
HD_LED+
HD_LED-
Ground
Reset
F_PANEL
PLED
+HDLED RESET
P8H61-M LX3 Series System panel connector
P8H61-M LX3 Series
P8H61-M LX3 Series Speaker out connector
+5V GND GND Speaker Out
SPEAKER
PIN 1
