Chapter 2: BIOS information 2-25
2.7 Boot menu

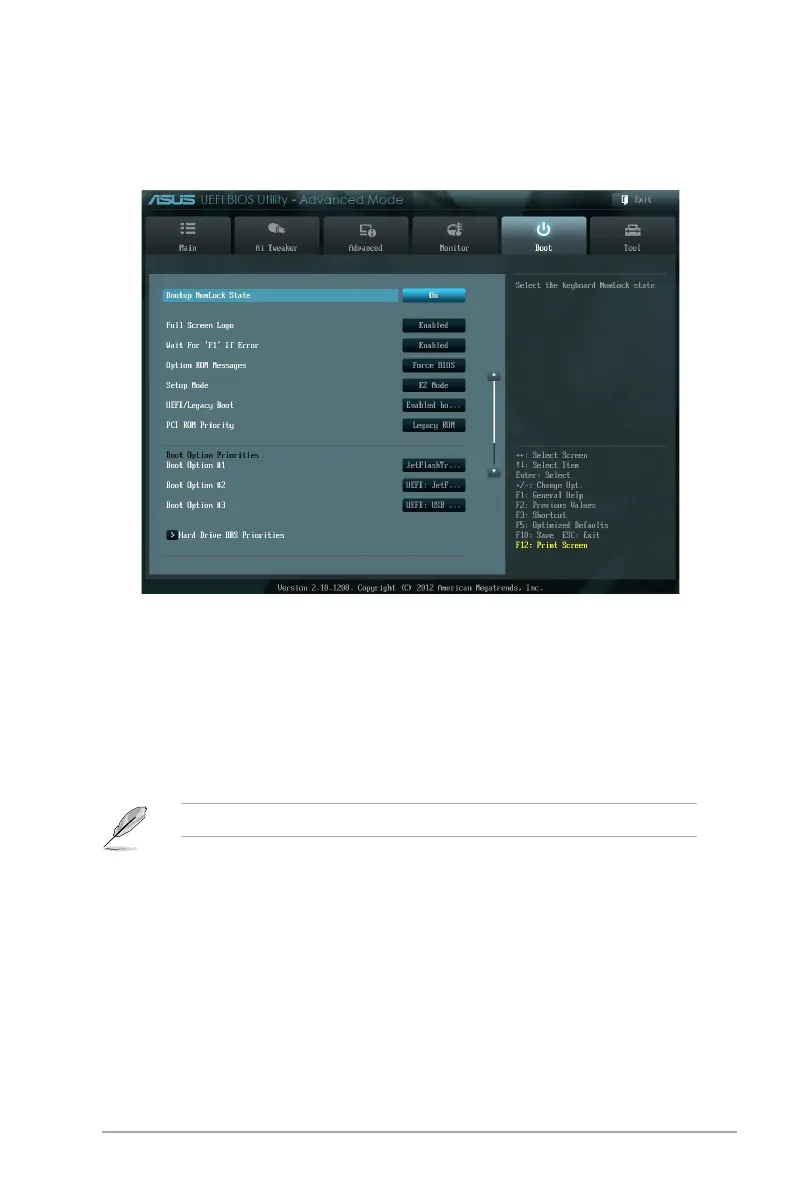

The Boot menu items allow you to change the system boot options.
2.7.1 Bootup NumLock State [On]
[On] Sets the power-on state of the NumLock to [On].
[Off] Sets the power-on state of the NumLock to [Off].
2.7.2 Full Screen Logo [Enabled]
[Enabled] Enables the full screen logo display feature.
[Disabled] Disables the full screen logo display feature.
Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.
Post Report [5 sec]
This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to
set the waiting time for the system to display the post report. Conguration options: [1 sec] [2
sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]
2.7.3 Wait for ‘F1’ If Error [Enabled]
When this item is set to [Enabled], the system waits for the F1 key to be pressed when error
occurs. Conguration options: [Disabled] [Enabled]

Asus P8H61-MX R2.0 Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 2000, 2133, 2200 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Headphone outputs	3
USB 2.0 ports quantity	6
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA, SATA II
Graphics card	HD Graphics
Maximum resolution	2048 x 1536 pixels
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Special features	2 x Thunderbolt
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	244 mm
