Asus P8H61-MX USB3 User Manual

2-4 ASUS P8H61-MX Series
Updating the BIOS le
To update the BIOS le using BIOS Updater
1. At the FreeDOS prompt, type
bupdater /pc /g and press <Enter>.
ASUSTek BIOS Updater for DOS V1.18
Current ROM
Update ROM
A:
Note
[Enter] Select or Load [Tab] Switch [V] Drive Info
[Up/Down/Home/End] Move [B] Backup [Esc] Exit
P8H61-MX-R2-SI-0401 4194304 2012-03-12
17:30:48
PATH: A:\
BOARD: P8H61-MX R2.0
VER: 0401
DATE: 02/16/2012
BOARD: Unknown
VER: Unknown
DATE: Unknown
D:\>bupdater /pc /g

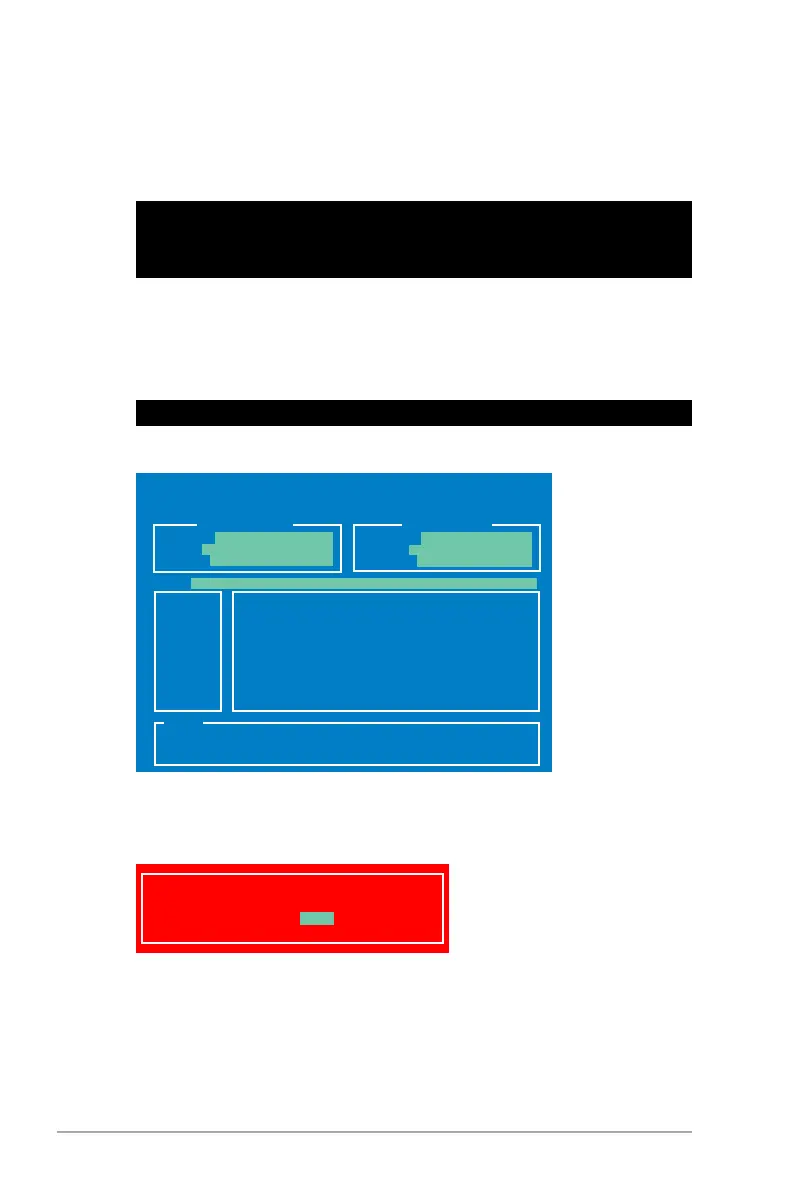

2. The BIOS Updater screen appears as below.
3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys
to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le
and prompts you to conrm BIOS update.
Are you sure to update BIOS?
Yes No
3. When the Make Disk menu appears, select the FreeDOS command prompt item by
pressing the item number.
4. At the FreeDOS prompt, type
d: and press <Enter> to switch the disk from
Drive C (optical drive) to Drive D (USB ash drive).
Welcome to FreeDOS (http://www.freedos.org)!
C:\>d:
D:\>

Asus P8H61-MX USB3 Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 2000, 2133, 2200 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA, SATA II
Graphics card	HD Graphics
Maximum resolution	2048 x 1536 pixels
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Special features	2 x Thunderbolt
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	244 mm
