Package contents

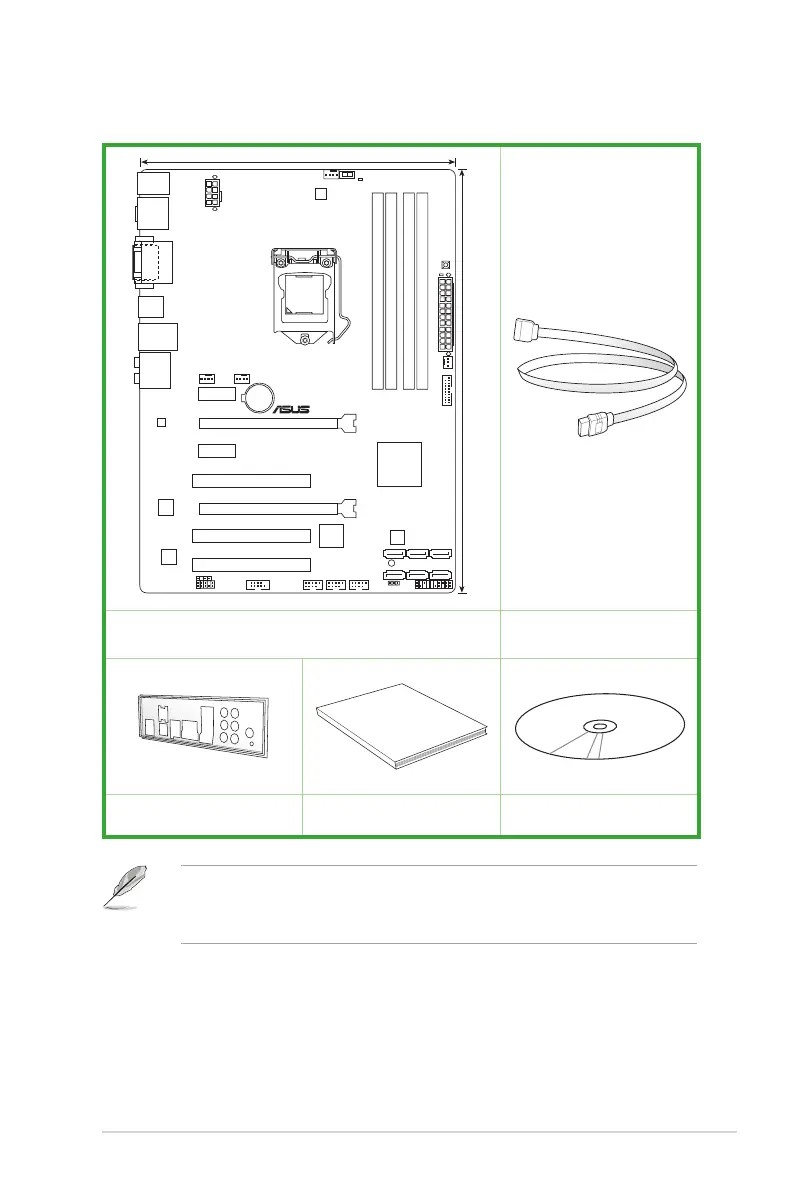

Check your motherboard package for the following items.
P8H77-V
PCIEX16_1
PCIEX16_2
PCIEX1_2
PCIEX1_1
PCI1
PCI2
PCI3
USB56USB78USB910
USB3_34
PANEL
SPDIF_OUT
CHA_FAN1
CHA_FAN2
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
DIGI
+VRM
AR
8161
COM1
64Mb
BIOS
SB_PWR
CLRTC
22.6cm(8.9in)
30.5cm(12.0in)
Intel
®
H77
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
USB3_12
ASM
1083
SATA3G_3 SATA3G_2 SATA3G_1
SATA6G_2SATA3G_4 SATA6G_1
MemOK!
DRAM_LED
EATXPWR
LGA1155
AUDIO
KB_USB3_34
LAN1_USB12
SPDIF_O
_HDMI
_DP
DVI_VGA
AAFP
PWR_FAN
EATX12V
GPU_Boost
GPU_LED
ASUS P8H77-V motherboard 2 x Serial ATA 6 Gb/s cables
User Guide
1 x I/O Shield User Guide Support DVD
• If any of the above items is damaged or missing, contact your retailer.
• The illustrations above are for reference only. Actual product specications may vary
with different models.

Asus P8H77-V Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of Parallel ATA connectors	0
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
Cables included	SATA
LAN controller	-
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	226 mm
Width	305 mm
