Asus P8P67 LX User Manual

ASUS P8P67 LX 1-8

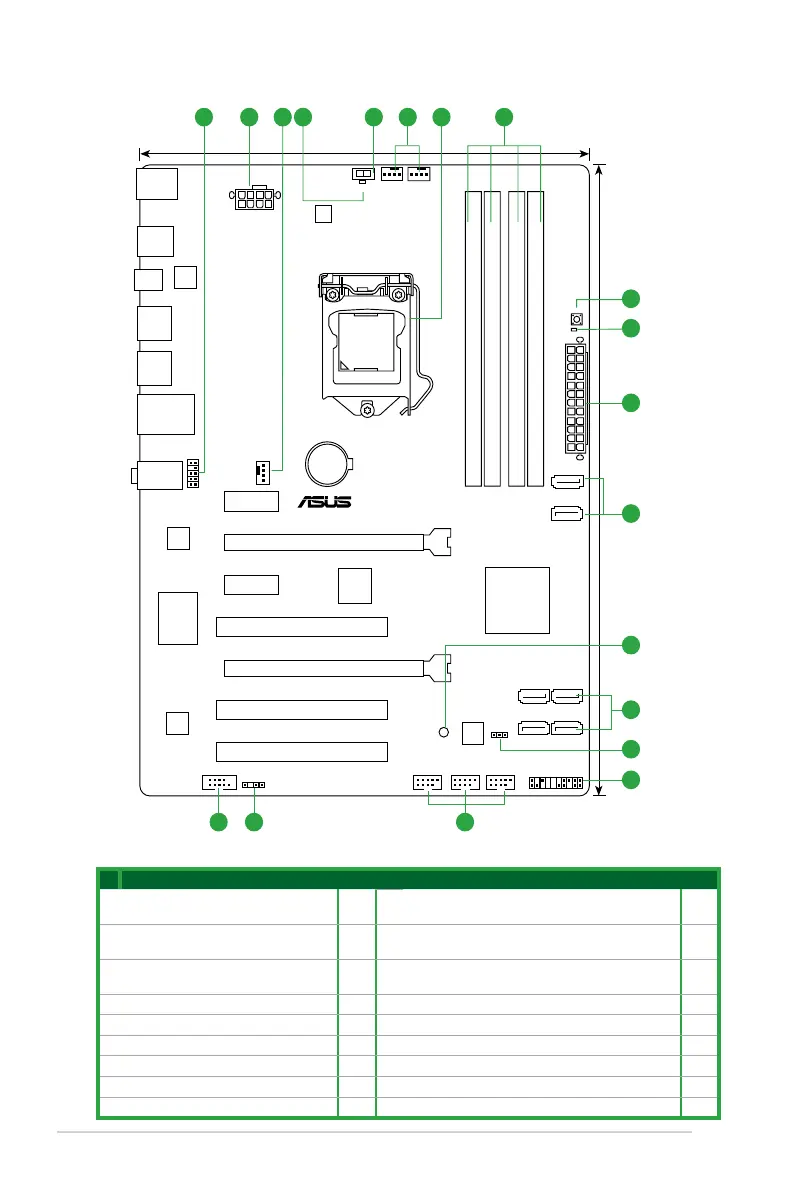

1.5.3 Motherboard layout
P8P67 LX
PCIEX16_1
PCIEX16_2
PCIEX1_2
PCIEX1_1
PCI1
PCI2
PCI3
USB910 USB1112 USB1314
PANEL
SPDIF_OUT
AAFP
CPU_FAN CHA_FAN2
CHA_FAN1
Lithium Cell
CMOS Power
Super
I/O
AUDIO
ALC
887-VD2
ASM
1042
EPU
RTL
8111E
ASM
1083
COM1
KBMS
32Mb
BIOS
SB_PWR
CLRTC
22.4cm (8.8in)
30.5cm (12.0in)
Intel
®
P67
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
LAN1_USB12
USB34
SPDIF_O2
SATA3G_2 SATA3G_1
SATA3G_4 SATA3G_3
SATA6G_1
SATA6G_2
LGA1155
EATX12V
USB3_12
USB56
MemOK!
DRAM_LED
02LED2
TURBO_KEY_II
1 2 735 63 4
10
8
9
14
12
13
11
1617 15
2
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Front panel audio connector (10-1 pin
AAFP)
1-26 10. Marvell
®
Serial ATA 6.0Gb/s connector (7-pin
SATA6G_1~2 [gray])
1-29
2. ATX power connectors (24-pin EATXPWR,
8-pin EATX12V)
1-27 11. Onboard LED (SB_PWR) 1-34
3. CPU fan / chassis fan connectors (4-pin
CPU_FAN, 4-pin CHA_FAN1/2, )
1-28 12. Intel
®
P67 Serial ATA 3.0Gb/s connectors (7-pin
SATA3G_1~4 [blue])
1-30
4. Turbo Key II LED (O2LED2) 1-34 13. Clear RTC RAM (3-pin CLRTC) 1-24
5. Turbo Key II switch 1-33 14. System panel connector (20-8 pin PANEL) 1-31
6. Intel
®
LGA1155 CPU socket 1-9 15. USB connectors (10-1 pin USB78, USB910, USB1112) 1-32
7. DDR3 DIMM slots 1-14 16. Digital audio connector (4-1 pin SPDIF_OUT) 1-28
8. MemOK! switch 1-33 17. Serial port connector (10-1 pin COM1) 1-27
9. DRAM LED 1-34
