4.3.9 USB 3.0 Boost
The ASUS exclusive USB 3.0 Boost provides speed boost for USB 3.0 devices and the
up-to-date support of USB Attached SCSI Protocol (UASP). With USB 3.0 Boost, you can
accelerate the transfer speed of your USB 3.0 devices with ease.

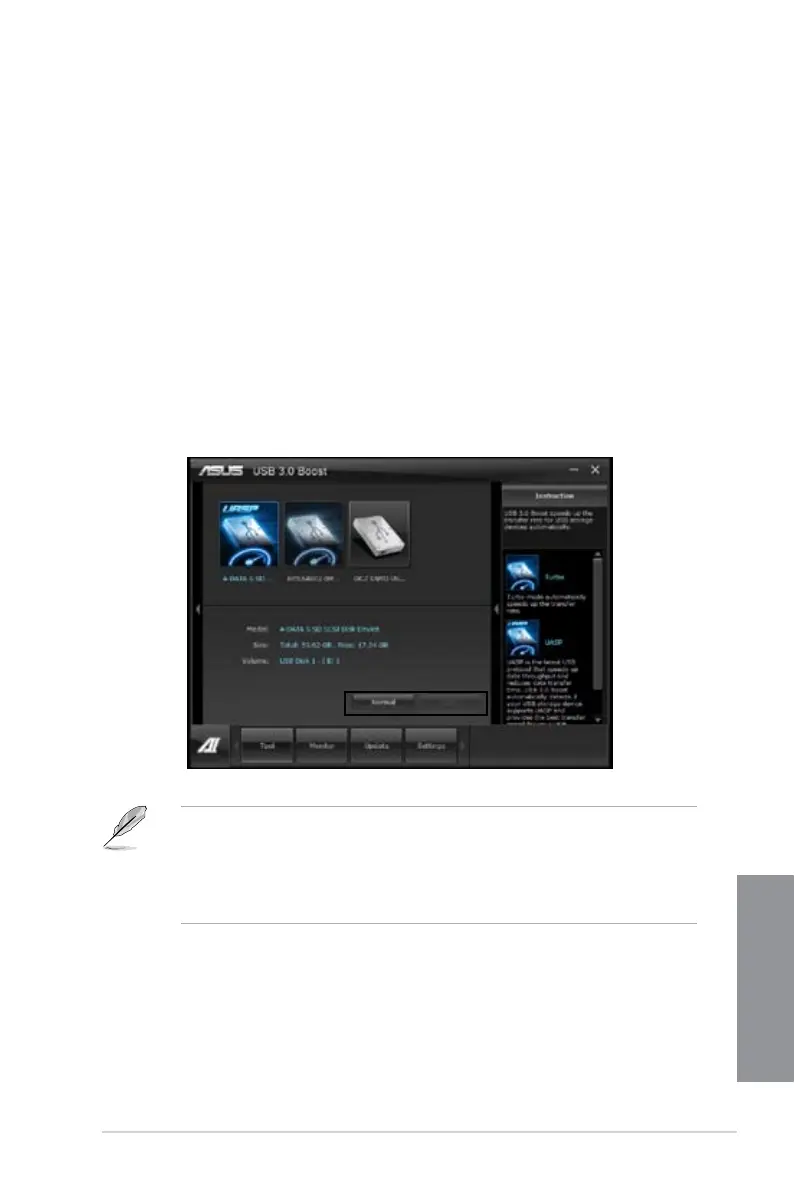

Launching USB 3.0 Boost
After installing AI Suite II from the motherboard support DVD, launch USB 3.0 Boost by
clicking Tool > USB 3.0 Boost on the AI Suite II main menu bar.
Conguring USB 3.0 Boost
1. Connect a USB 3.0 device to the USB 3.0 port.
2. USB 3.0 Boost automatically detects the property of the connected device and
switches to Turbo mode or UASP mode (if UASP is supported by the connected
device).
3. You can manually switch the USB 3.0 mode back to Normal mode at any time.
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software conguration.
• Due to Intel
®
chipset limitation, Intel
®
USB 3.0 ports do not support ASUS 3.0 Boost in
Windows XP operating system.
• Use the USB 3.0 devices for high performance. The data transfer speed varies with
USB devices.

Asus P8Z77 WS Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2800 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of Parallel ATA connectors	0
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
Audio chip	Realtek ALC898
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel Z77
PC health monitoring	CPU, FAN, LED, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, LucidLogix Virtu, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0, 3.0
PCI Express configurations	2x16, 4x8
Controller 2nd interface type	Marvell PCIe 9128, ASMedia PCIe SATA
Cables included	SATA
LAN controller	Intel® 82574L
Wi-Fi standards	Not supported
Networking features	2 x Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
