Asus RT-AC66U User Manual

9
1.4 Positioning your router
For the best wireless signal transmission between the wireless
router and the network devices connected to it, ensure that you:
• Place the wireless router in a centralized area for a maximum
wireless coverage for the network devices.
• Keep the device away from metal obstructions and away from
direct sunlight.
• To prevent signal interference or loss, keep the device away
from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer
peripherals, Bluetooth devices, cordless phones, transformers,
heavy-duty motors, uorescent lights, microwave ovens,
refrigerators, and other industrial equipment.

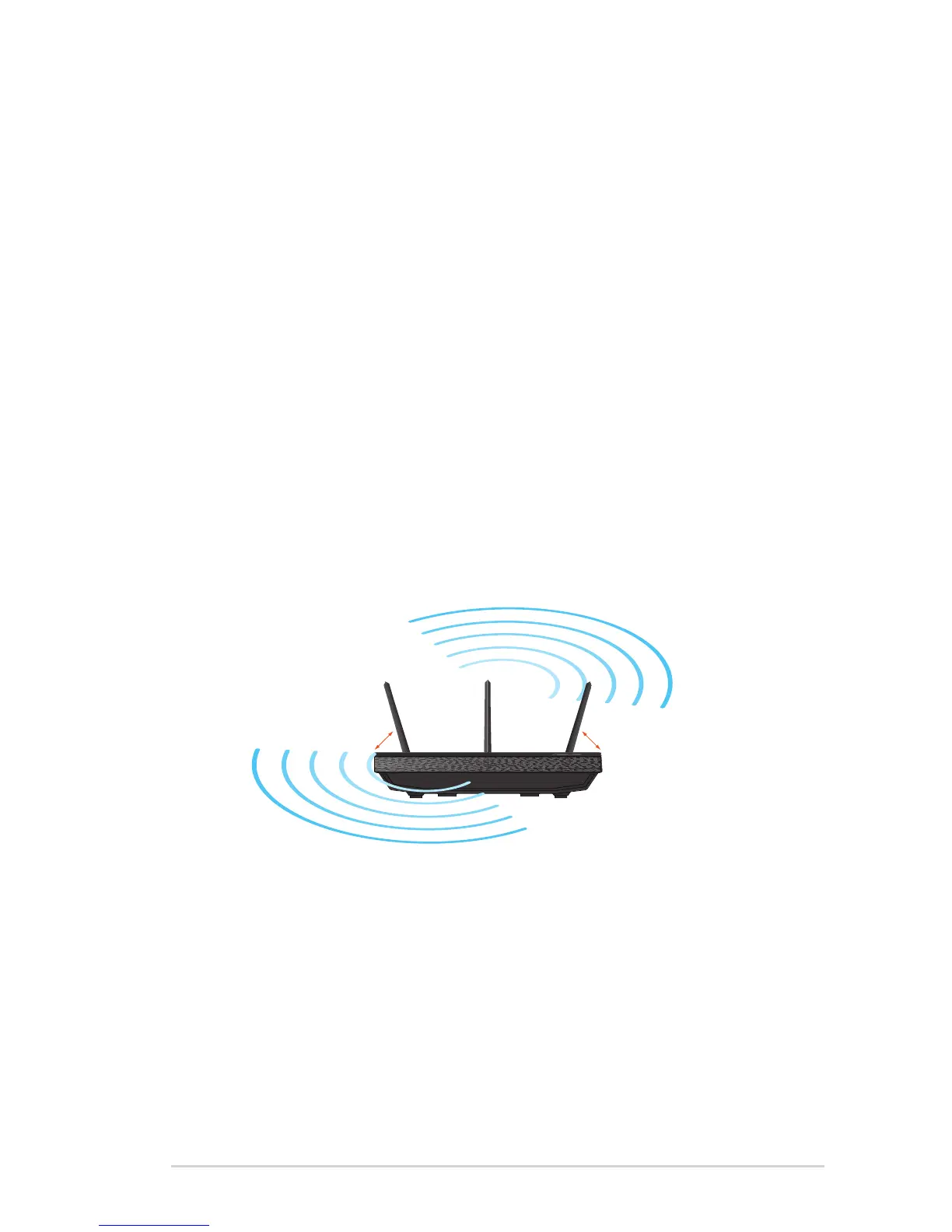

• To ensure the best wireless signal, orient the three detachable
antennas as shown in the drawing below.
45°45°
90°

Asus RT-AC66U Specifications

General

VPN support	IPSec, PPTP, L2TP, PPTP
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	1300 Mbit/s
Rack mounting	-
Frequency band	2.4 & 5 GHz
xDSL connection	No
USB ports quantity	2
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 450, 1300 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	3
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
LED indicators	LAN, Power, USB, WAN
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	148.8 mm
Width	207 mm
Height	35.5 mm
Weight	450 g
