Asus RT-AX3000P User Manual

73

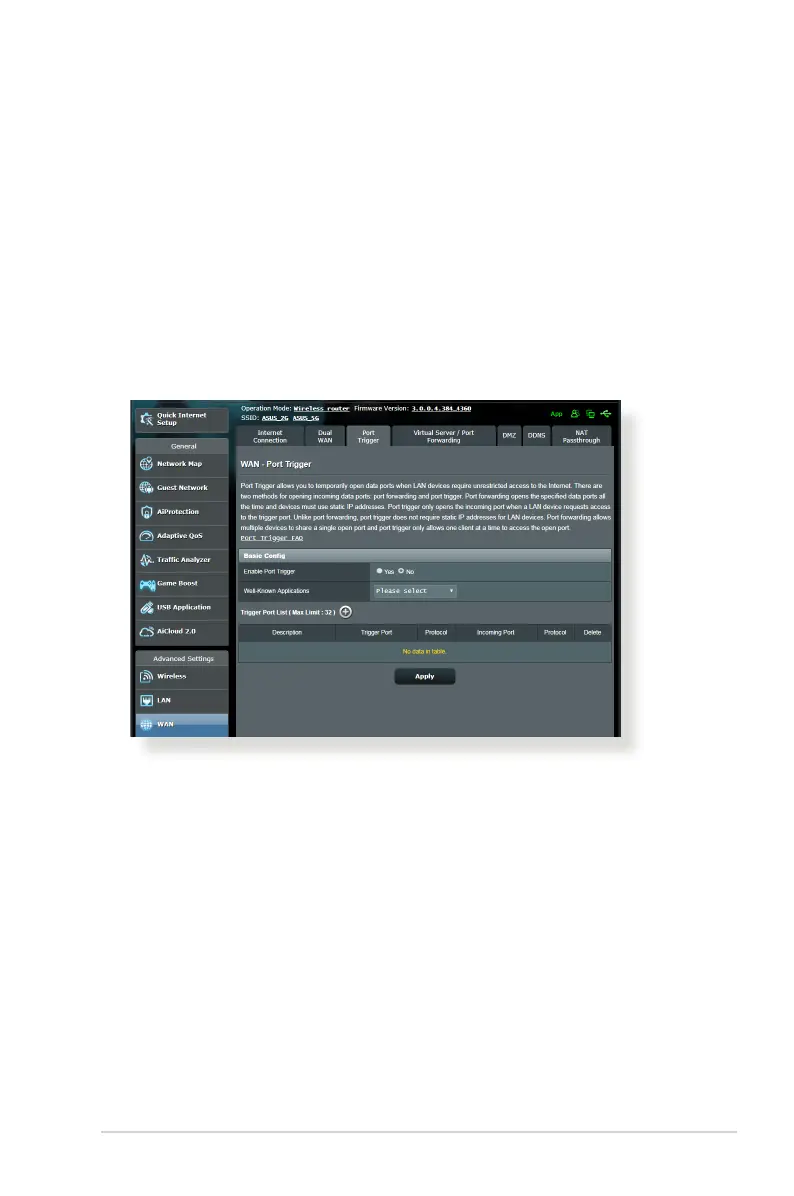

4.3.2 Port Trigger
Port range triggering opens a predetermined incoming port for a
limited period of time whenever a client on the local area network
makes an outgoing connection to a specied port. Port triggering
is used in the following scenarios:
• More than one local client needs port forwarding for the
same application at a dierent time.
• An application requires specic incoming ports that are
dierent from the outgoing ports.
To set up Port Trigger:
1. From the navigation panel, go to Advanced Settings > WAN >
Port Trigger tab.
2. Congure the following settings below. When done, click
Apply.
• Enable Port Trigger: Choose Ye s to enable Port Trigger.
• Well-Known Applications: Select popular games and web
services to add to the Port Trigger List.
• Description: Enter a short name or description for the service.

Asus RT-AX3000P Specifications

General

DSL WAN	-
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WAN, WLAN
VPN support	VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Antenna type	2x2
Antennas quantity	4
Flash memory	128 MB
Internal memory	256 MB
Processor frequency	1700 MHz
USB port	No
Ethernet LAN (RJ-45) ports	5
Output current	1.5 A
Output voltage	12 V
AC input voltage	110 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS

Weight and Dimensions

Weight	374 g
