Asus RT-AX89X User Manual

71
4.3 WAN
4.3.1 Internet Connection

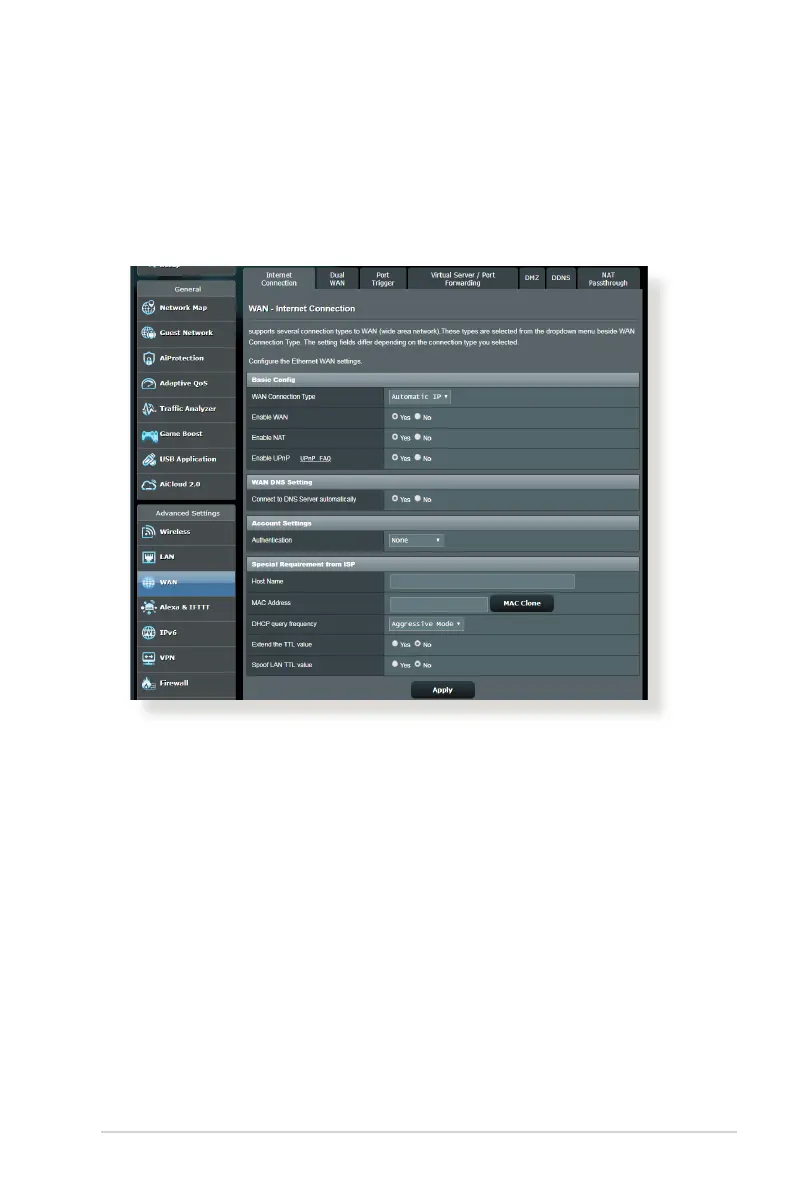

The Internet Connection screen allows you to congure the
settings of various WAN connection types.
To congure the WAN connection settings:
1. From the navigation panel, go to Advanced Settings > WAN >
Internet Connection tab.
2. Congure the following settings below. When done, click
Apply.
• WAN Connection Type: Choose your Internet Service Provider
type. The choices are Automatic IP, PPPoE, PPTP, L2TP or
xed IP. Consult your ISP if the router is unable to obtain a
valid IP address or if you are unsure the WAN connection type.
• Enable WAN: Select Yes to allow the router Internet access.
Select No to disable Internet access.

Asus RT-AX89X Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	- Mbit/s
Antennas quantity	8
Flash memory	256 MB
Processor frequency	2200 MHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Ethernet
Output current	3.42 A
Output voltage	19 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Weight	1280 g
