Asus RT-N56U User Manual

23

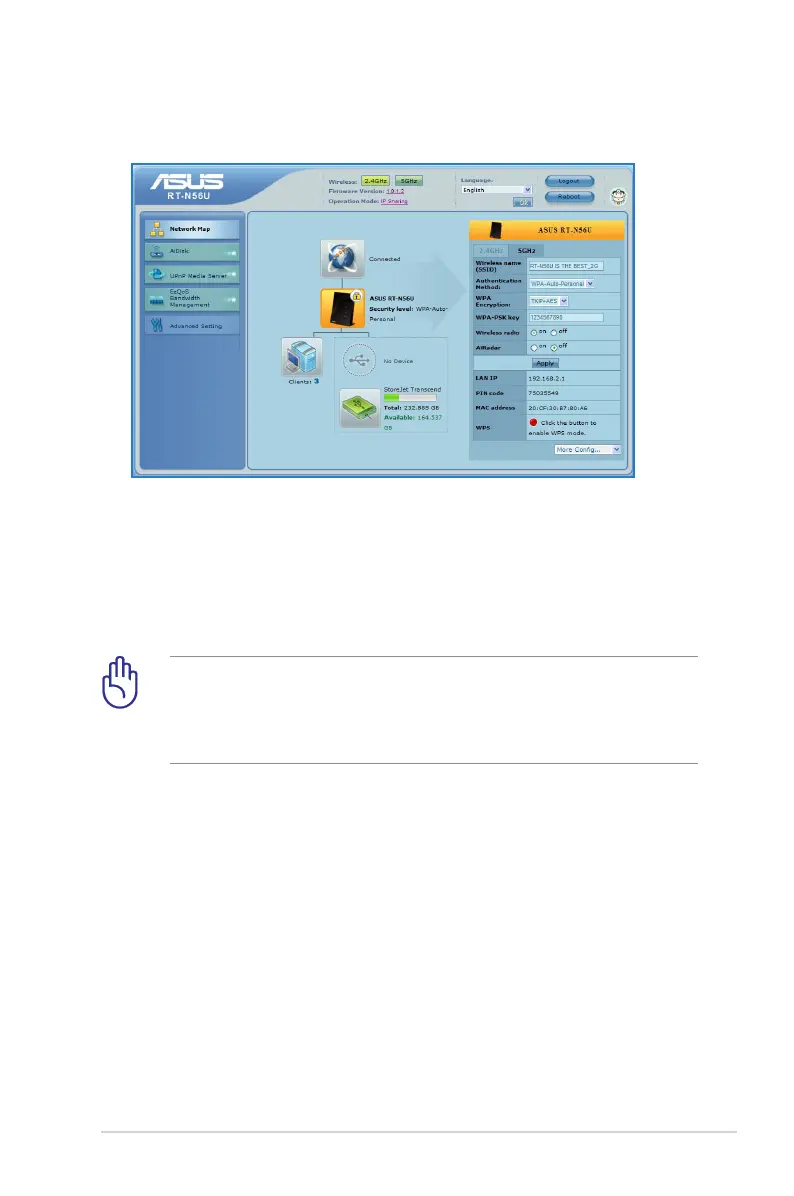

5GHz security settings
4. On the Wireless name (SSID) field, key in a unique name
for your wireless network.
5. From the Security Level dropdown list, select the encryption
method for your wireless network.
IMPORTANT! The IEEE 802.11n standard prohibits using
High Throughput with WEP or WPA-TKIP as the unicast cipher.
If you use these encryption methods, your data rate will drop
to IEEE 802.11g 54Mbps connection.
6. Key in your security passkey.
7. Click Apply when done.

Asus RT-N56U Specifications

General

Color	black
Frequency Band	2.4 ghz
Ethernet Standard	10/100/1000
Wireless Networking Standard	wi-fi 4
Wireless Standard	n
2.4 Ghz Streams	1
5.0 Ghz Streams	1
Gigabit Ethernet Speed	yes
Firewall	none
Ports	rj-45
WAN Ports	1
Built In Modem	yes

Weight and Dimensions

Height	6.8 inches
Width	5.7 inches
Net Weight	11.6 pounds
