Atlas Copco DZS 065V User Manual

Instruction Book
18 6996 0223 70

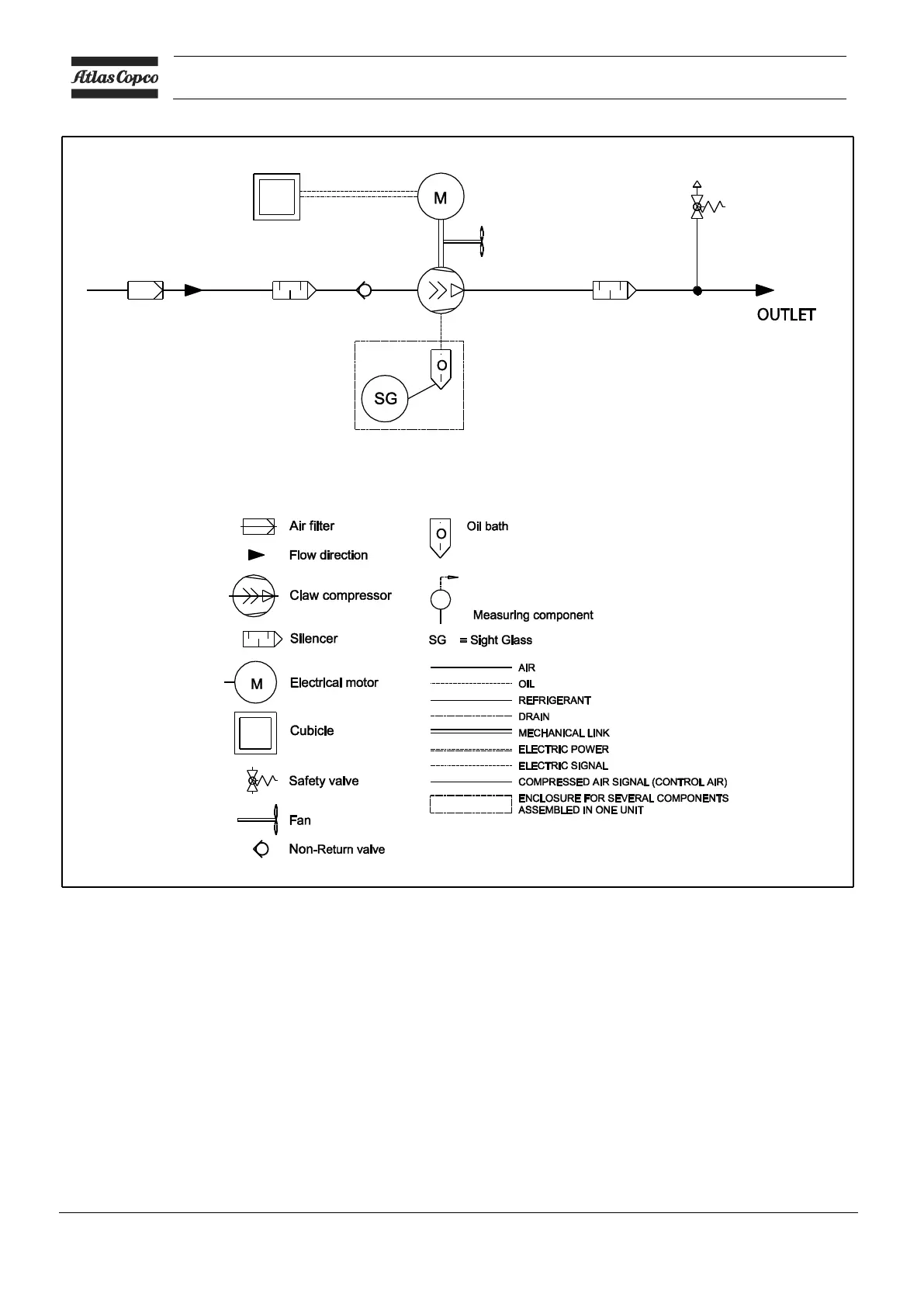

Flow diagram - DZS 150P, DZS 300P Dry claw overpressure pumps
Over pressure Pump
Air comes in through air inlet filter and silencer. The air flows through the non-return valve which prevents reverse
flow of air to the inlet. The air is compressed in the element and exhausted at pressure through the pressure port.
Ensure that the safety valve at the outlet is correctly installed and adjusted.

Atlas Copco DZS 065V Specifications

General

Brand	Atlas Copco
Model	DZS 065V
Category	Water Pump
Language	English
