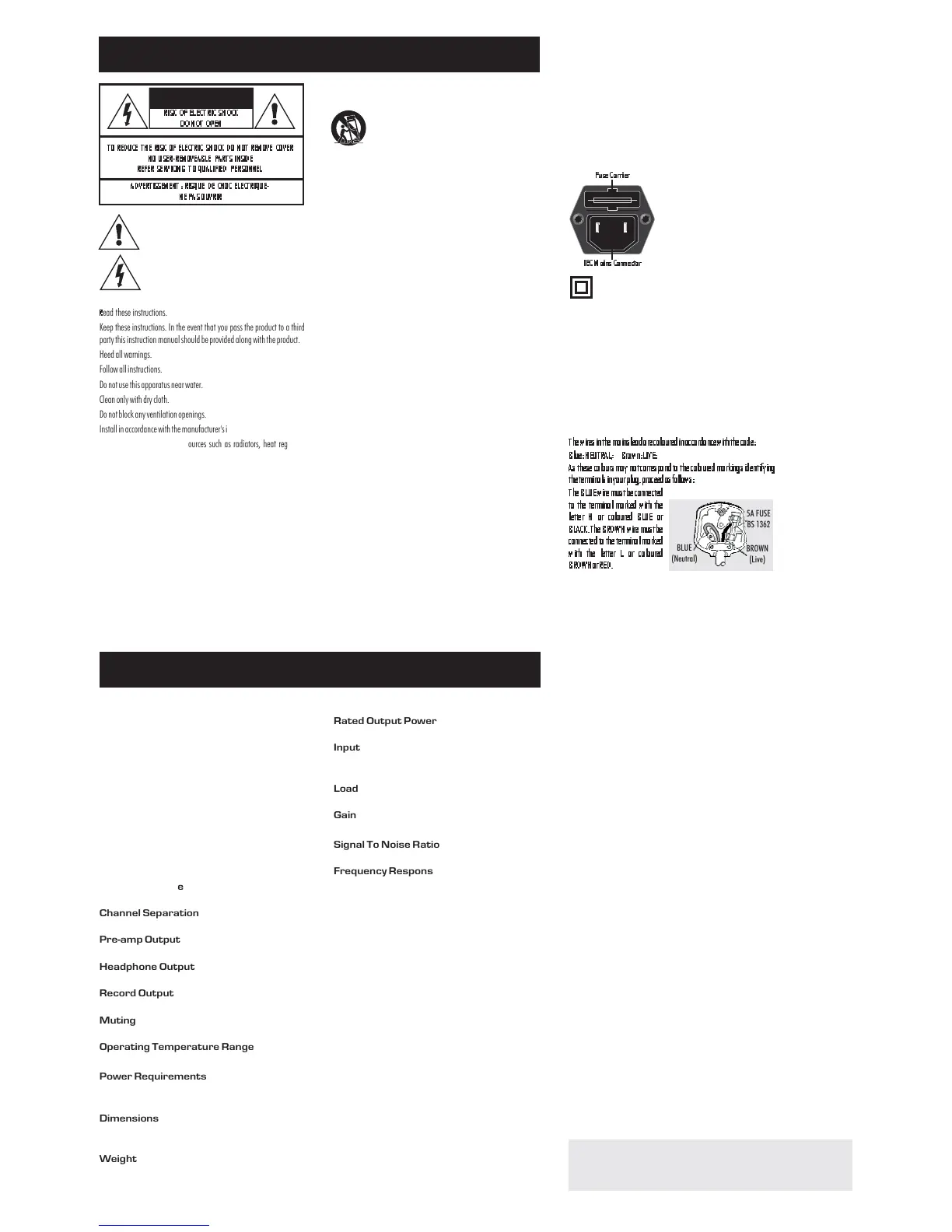

Mains supply and safety
Important notice to UK users
Mains Supply:
8000Q: 220-240V: 100-120V
8000M: 220-240V: 100-120V
8000P: 220-240V: 4 100-120V
Power Cord:
The mains voltage of Audiolab units is shown on the rear
panel. If this doesnot match the voltageinyour area, consult yourdealer.
The mains supplyfuse is on the rear panel. If it has broken,check for any
obvious cause before replacing the fuse with one of the correct rating and
type.The fuses for all areasare type T (time lag) AL 20mm.
Thefuse values are:
1.0A : 1.6A
3.15A : 5.0A
.0A : 5.0A
The fuse is located in a slide-in
carrier which also contains a spare
fuse. The carrier can only be pulled
out after the IEC power cord is
unplugged. When the carrier is
opened the first fuse is the spare.
Remove and safely dispose of the
blownfuse before replacing it.
Class II construction doubleinsulated. These products must not
beconnected to earth.
An AC power cord is normally supplied with a mains plug
suitable for your area. If you have any doubts, consult your dealer about
obtaininga suitable power cord.
The appliance cord is terminated with a UK approved mains plug fitted
with a 5A fuse.If thefuse needs to be replaced, an ASTA or BSI approved
BS1362 fuse rated at 5A must be used. If you need to change the mains
plug, remove the fuse and dispose of this plug safely immediately after
cuttingit from the cord.
Connecting a Mains Plug
Thewiresinthemainsleadarecolouredinaccordancewiththecode:
Blue:NEUTRAL; Brown:LIVE:
As these colours may not correspondto thecolouredmarkingsidentifying
theterminalsinyourplug,proceedasfollows:
TheBLUEwire mustbeconnected
to the terminal marked with the
letter N or coloured BLUE or
BLACK.The BROWNwiremust be
connectedtotheterminalmarked
with the letter L or coloured
BROWNorRED.
5A FUSE
BS 1362
BROWN
(Live)
BLUE
(Neutral)
FuseCarrier
IEC Mains Connector
4
ead these instructions.
Keep these instructions. In the event that you pass the product to a third
partythis instruction manual should beprovided along with the product.
Heedall warnings.
Followall instructions.
Donot use this apparatus nearwater.
Cleanonly with dry cloth.
Donot block any ventilation openings.
Installin accordance with the manufacturer'sinstructions.
Do not install near any heat sources such as radiators, heat registers,
stoves,or other apparatus (including amplifiers)that produce heat.
Do not defeat thesafety purpose of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wider blade orthe third prong areprovided for your safety.If the provided
plug does not fitinto your outlet, consult an electrician forreplacement of
theobsolete outlet.
Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Useonly attachments/accessories specifiedbythemanufacturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatuscombination toavoid injury fromtip-over.
Unplug this apparatus during lightning storms or when unused for long
periodsoftime.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture,does not operate normally, orhas been dropped.
To reduce the risk offire or electrical shock,do not expose this
product to rain or moisture. The product must not be exposed to dripping
and splashing and no object filled with liquids such as a vase of flowers
shouldbe placed on the product.
No naked flame sources such as candles should be placed on the
product.
Changes or modifications not expressly approved by the
manufacturercould voidthe user's authorityto operate this device.
: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be
determined by tuning the equipment off andon,the useris encouraged to
tryto correct the interference byone or more of thefollowing measures:
Re-orientate or re-locate the receiving antenna. Increase the separation
between the equipment and the receiver. Connect the equipment into an
outleton a circuit different fromthat to which the receiveris connected.
Consultthe dealer or an experiencedradio/TV technician for help.
The batteries suppliedwith the 8000Q handsetshould
be treated with care and not punctured or damaged. Used batteries
should be disposed of in full conformity with recycling regulations in your
area.NEVER dispose of batteries ina fire or in thegeneral rubbish.
Warning:
Caution:
8000Q
Important Note:
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ADVERTISSEMENT : RISQUE DE CHOC ELECTRIQUE-
NE PAS OUVRIR
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
NO USER-REMOVEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
This symbol indicates that there are important
operating and maintenance instructions in the
literatureaccompanying thisunit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
withinthis unit.
1: Statutory & Safety Information
8000Q Pre-amplifier 8000P Power Amplifier
Inputs: Gain and Sensitivity
Signal To Noise Ratio
Frequency Response
Total Harmonic Distortion & Noise
Channel Balance
Channel Separation
Pre-amp Output
Headphone Output
Record Output
Muting
Operating Temperature Range
Power Requirements
Dimensions
Weight
Rated Output Power
Input
Load
Gain
Signal To Noise Ratio
Frequency Response
Total Harmonic Distortion & Noise
Channel Balance
Polarity (Phase)
Muting
Operating Temperature Range
Power Requirements
Dimensions
Weight
CD, TUNER, AUX, VIDEO,TAPE1,TAPE2: IMPEDANCE: 20k
GAIN: Adjustable by 3dB steps 0 -15dB., corresponding to
SENSITIVITY(nom.):100, 140mV,200mV,283mV,400mV, 562mV
HEADPHONES: Gainadjustable 18dB -33dB in 3dBsteps
(IHF,rel. 0.5V output)
Anyinput, any gainsetting: 97dB
Headphones:80dB
10Hz-20 kHz ±0.2dB: 1Hz-75 kHz -3dB.
Lessthan 0.007 %ref 7.7Vrms, 20Hz -20kHz
Within1 dB
Betterthan100 dB @1 kHzany input, anysetting
Max.Output >7.7 VRMS (20dBm); Output impedance 75
>7.7Vrms;100 (forheadphones 8 -2 k impedance)
VIDEOOUT, TAPE1OUT,TAPE2 OUT: Gain0 dB (x1);100
Attenuation>63dB, controlled automatically
10-35°C
(Dependingon Region)
50-60Hz 100V, 110-120V, and 220-240V models available
MaximumPowerConsumption: 15 VA
(WXHXD)
445x74x335mm - includingfeet, terminalsand controls
445x 64 x302 mm-excluding feet, terminalsand controls
Net:6 kg Shipping:7.3 kg
100W(20dBW) /Channel into8 both channelsdriven
1Vrms for 100Winto 8
InputImpedance: 50k
Connectedin parallel with INPUT
29.0dB at1kHz
(IHF,rel. 0.dBW)
Betterthan 95 dB
20Hz-20 kHz ±0.3dB
0.1Hz-75 kHz -3dB.
Lessthan 0.05 %
Within1 dB
Non-Inverting
Mutingcontrolled automatically
10-35°C
(Dependingon Region)
50-60 Hz 100V, 110-120V, and 220-240V models available
MaximumPowerConsumption: 500 VA
(WXHXD)
445x74x337mm - includingfeet, terminalsand controls
445x 64 x302 mm-excluding feet, terminalsand controls
Net:8.7 kg Shipping:10 kg
7: Specifications
8000M Power Amplifier
Rated Output Power
Input Sensitivity
Load
Gain
Signal To Noise Ratio
Frequency Response
Total Harmonic Distortion & Noise
Polarity (Phase)
Muting
Operating Temperature Range
Power Requirements
Dimensions
Weight
125W(21dBW) /Channel into8 , 20Hz -20kHz
1.12Vrms for 120Winto 8
InputImpedance: 50k
Connectedin parallel with INPUT
29.0dB at1kHz
(IHF,rel. 0.dBW)
Betterthan 96 dB
20Hz-20 kHz ±0.3dB
0.1Hz-75 kHz -3dB.
Lessthan 0.05 %
Non-Inverting
Mutingcontrolled automatically
10-35°C
(Dependingon Region)
50-60Hz 100V, 110-120V, and 220-240V models available
MaximumPowerConsumption: 300 VA
(WXHXD)
445x74x337mm - includingfeet, terminalsand controls
445x 64 x302 mm-excluding feet, terminalsand controls
Net:8.2 kg Shipping:9.6 kg
Audiolab reserves the right to alter design and specification without notice.
Specificationmay vary for different countries.
Audiolabis a member of theInternational Audio Group.
