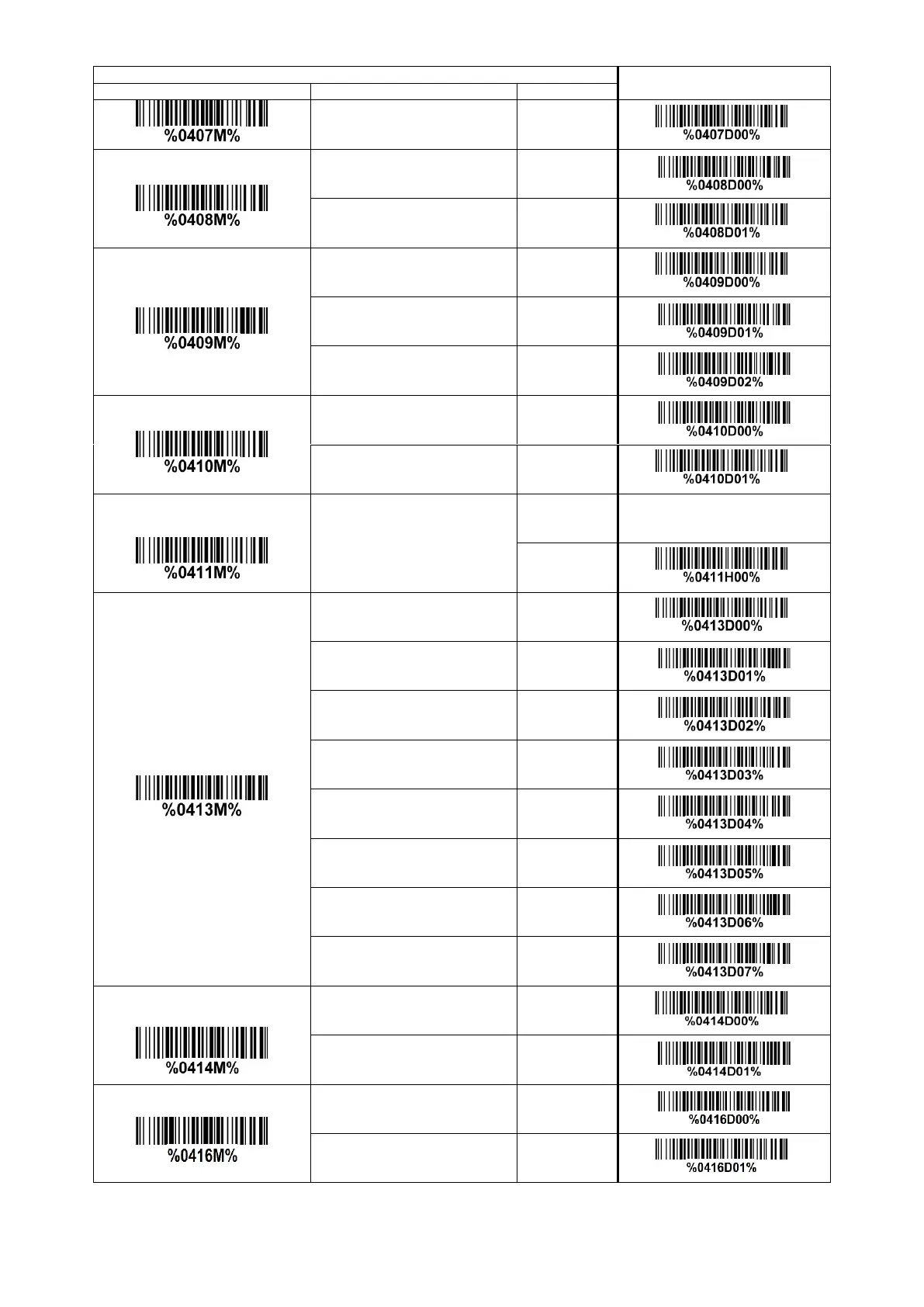

27
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
00*
*
Element amendment
Disable
00
Enable
01*
*
Character output restraint
None
00*
*
Printable character only
01
Alphanumeric character only
02
Decoder optimization
Disable
00
Enable
01*
*
Data output delay in
continue-scan mode
00
-99 (100
ms)
FF (Never)
00
-
FF
16
00*
*
Character encoding system
ASCII
00*
*
UTF-8
01
Windows-1251
02
Simplified Chinese
03
T
raditional Chinese
04
Windows-1250
05
KOI8R
06
Japane
se
07
Complete data output before
next decode attempt
Disable
00*
*
Enable
01
Sleep mode
Disable
03
Enable
01*
*
26
28
Table of Contents
Contents
3
Table of Contents
3
1 Specifications
5
Technical Specifications
5
Default Setting for each Barcode
6
2 Get Started
7
Dimensions
7
Parts of the Scanner
8
Cable Connector Pin-Outs Descriptions
9
Installation and Uninstallation of Cable
10
Installation - USB
10
Installation - RS-232
10
Uninstallation of Cable
11
Assembling the Stand
11
Auto-Detection
12
3 Programming
13
Example 1: Single-Parameter Setting by Scanning 1D Barcodes
13
Example 2: Multiple-Parameter Setting by Scanning a QR Code Barcode
14
Operate the Scanner by Receiving Command Via UART
15
Interface Selection
16
RS-232 Interface
17
USB Interface
20
Scan Mode & some Global Settings
23
Indication
29
Decode Illumination and Decode Aiming Pattern
30
Other Settings
32
Note 1 : the Instruction of Calibrating the Aimer in Vertical Centering Direction
34
Note 2 : Scan Barcode or Send Command to Enter Upgrade Mode
35
Upc-A
36
Upc-E
38
Upc-E1
40
Ean-13 (Isbn/Issn)
42
Ean-8
44
Code 39 (Code 32, Trioptic Code 39)
46
Interleaved 2 of 5
49
Industrial 2 of 5 (Discrete 2 of 5)
51
Matrix 2 of 5
52
Codabar
53
Code 128
55
Ucc/Ean 128
57
Isbt 128
59
Code 93
60
Code 11
61
Msi/Plessey
63
Plessey
65
China Post
66
GS1 Databar (GS1 Databar Truncated)
67
GS1 Databar Limited
68
GS1 Databar Expanded
69
Pdf417
70
Micropdf417 Code
71
QR Code
72
Microqr Code
73
Data Matrix
74
Han Xin Code
75
Aztec Code
76
G1-G6 & C1-C3 & FN1 Substitution String Setting
77
G1-G4 String Position & Code ID Position
82
String Transmission
83
4 Maintenance
86
5 Barcode Representing Non-Printable Character
87
6 ASCII Table
88
7 Test Barcode
89
8 Return Default Parameters & List Firmware Version
92
9 Configuration Alphanumeric Entry Barcode
93
