Backyard GBC1460W User Manual

Outdoor LP Gas Barbecue Grill
Model No. GBC1460W / BY14-101-01-04
4
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10-M6 Wrench 2 pcs
1
16
23 26
Parts List
1
Handle
55-22-326
2
Temperature Gauge
55-09-146
3
Brand Plate*
55-22-391
4
Warming Rack
55-10-152
5
Cooking Grid (3)
55-22-327
6
Lid*
55-24-181
7
Side Burner Grid
55-10-047
8
Burner (5)*
55-23-014
9
Side Burner
55-22-331
10
Heat Plate (5)
55-10-156
11
Grill Body Assembly*
55-23-015
12
Igniter*
55-10-526
13
Control Knob Bezel (6)*
55-24-182
14
Control Knob (6)
55-24-183
15
Regulator/Hose
Assembly*
55-22-334
16
Right Side Shelf
55-24-184
17
Left Side Shelf
55-24-185
18
Grease Tray
55-11-017
19
Grease Cup
55-11-018
20
Bottle Opener*
55-23-017
21
Upper Front Cart Frame
55-22-336
22
Lighting Hook
55-10-173
23
Left Cart Frame
55-22-337
24
Door Handle (2)
55-08-185
25
Rear Cart Frame
55-22-340
26
Left Door
55-22-338
27
Right Door
55-23-506
28
Right Cart Frame
55-22-341
29
LP Gas Tank Retainer
Bolt*
55-11-032
30
Base
55-22-342
31
Magnet (2)
55-10-174
32
Caster (2)
55-22-074
33
Locking Caster (2)
55-22-073
34
Lower Front Cart Frame
55-22-343
* Pre-assembled

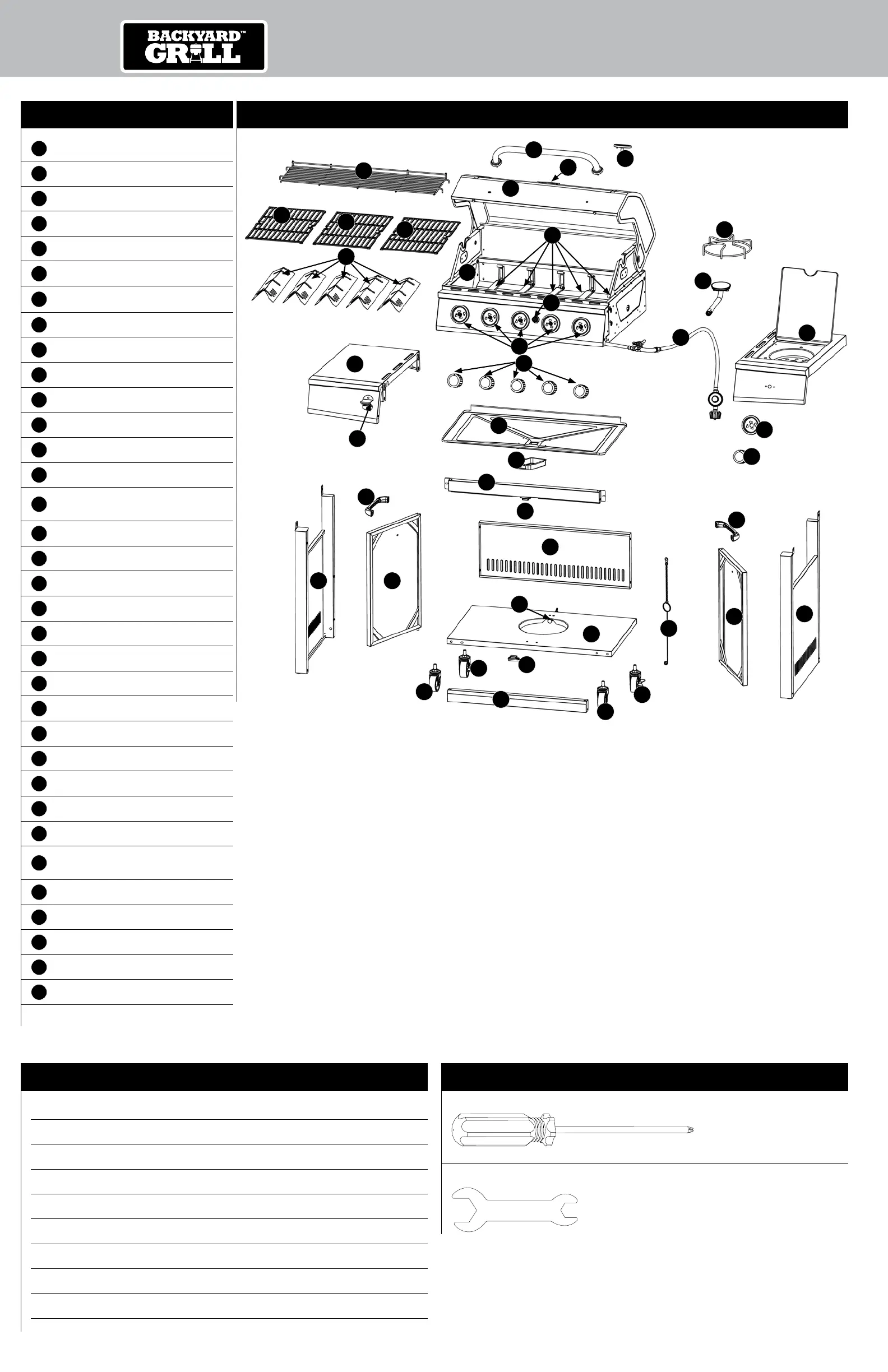

Expanded View
34
27
17
31
15
9
Hardware
A
Screw
M4x10 Nickel Plated Phillips Truss Head
10 pcs
B
Screw
M6x16 Nickel Plated Phillips Truss Head
22 pcs
C
Bolt
M6x16 Nickel Plated Phillips Hex Head
8 pcs
D
Wing Nut
M6 Nickel Plated
2 pcs
E
Washer
ø4.2 Nickel Plated
4 pcs
F
Washer
ø6.2 Nickel Plated
20 pcs
G
Lock Washer
ø6.5 Nickel Plated
20 pcs
H
Pin
ø4.5x80 Chrome Plated
2 pcs
I
AA Battery 1 pc
6
4
5
5
5 7
21
24
24
22
25
28
30
2
18
19
3
8
10
14
14
12
11
13
13
29
33
33
32
32
31
20
